  • Subal CD5M4 Underwater Macro Housing Package for Canon 5D Mark IV DSLR Camera with Canon 100mm IS Lens
Subal CD5M4 Underwater Macro Housing Package for Canon 5D Mark IV DSLR Camera with Canon 100mm IS LensSubal CD5M4 Underwater Macro Housing Package for Canon 5D Mark IV DSLR Camera with Canon 100mm IS Lens: The ergonomic Subal design and arrangement of all important elements of the housing allows the camera easy operation without letting go of the handle. The camera is mounted on a special tray, to secure the camera with precision into the housing. This allows a faster and secure mounting. A 4mm O-ring and the Subal Quick Lock closure system prevents accidental crushing of the O-ring and ensures maximum safety. Subal, 5D, IV, Underwater, Macro, Package, photo, video, 5d4, 5div, 5dlv, 5d14, m, mk, , mark, 4, iv, lv, 14, canon, Subal, CD5M4, Underwater, Macro, Housing, Package, for, Canon, 5D, Mark, IV, DSLR, Camera, with, Canon, 100mm, IS, Lens

Subal CD5M4 Underwater Macro Housing Package for Canon 5D Mark IV DSLR Camera with Canon 100mm IS Lens

<h3>Package Includes:</h3> <ul> <li><a href="/Subal-CD5-MIV-Canon-5D-MarkIV-Underwater-Housing">Subal CD5M4 Housing</a></li> <li><a href="/Subal-FP-120-Underwater-Flat-Port-Canon-Type-4">Subal Macro Port for Canon 100mm IS Macro lens</a></li> <li><a href="/Backscatter-AirLock-Vacuum-Manual-System-Bulkhead">Backscatter AirLock Vacuum System </a></li> </ul>

SKU: # bs-su-5d4-pkg

FREE Standard Shipping to USA / CANADA!

Price $4,399.00

Base Price $

Price as Configured $

Price $4,399.00
Price $4,399.00

Custom Options


Overview / Product Description

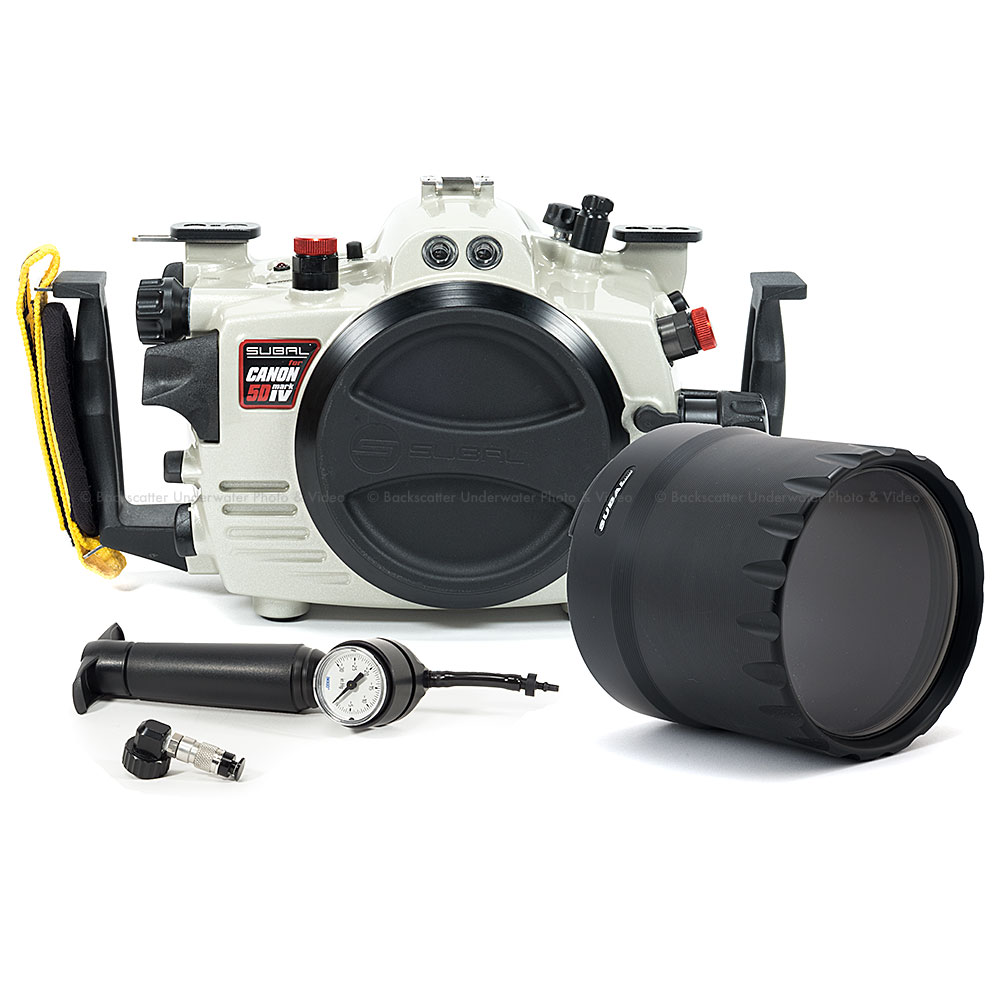

Subal CD5M4 Underwater Macro Housing Package for Canon 5D Mark IV DSLR Camera with Canon 100mm IS Lens







Package Includes:









Subal CD5 MIV Underwater Housing for Canon 5D Mark IV





Subal now offers an aluminum housing for the Canon EOS 5D Mark I full-frame DSLR Camera. There is no limit to the creativity of the underwater photographers.



The ergonomic Subal design and arrangement of all important elements of the housing allows the camera easy operation without letting go of the handle. The camera is mounted on a special tray, to secure the camera with precision into the housing. This allows a faster and secure mounting. A 4mm O-ring and the Subal Quick Lock closure system prevents accidental crushing of the O-ring and ensures maximum safety.



The Subal monitor window provides a glare-free view of the brilliant image of the camera monitor and supports ideally the HD-video function of the camera.Pilot lights can be attached or mounted to the top shoe.



Only high-quality materials are used to produce Subal housings. A precise manufacturing process followed by the surface protection finish, to conform the standard quality level that you get in every Subal product.



Subal offers for this housing model, 4 different search systems:

  • The standard viewfinder slimmed the viewfinder image so that it can fully be overlooked despite diving mask.
  • The GS 180° and the 45° viewfinders offer a view in size approximately corresponding to the camera's viewfinder, with the insight of the GS-180 horizontally, the insight of the WS-45 under 45.
  • The new Prism Finder PS-30 shows the camera monitor image at the same size at a viewing angle of 30°. The insight is with normal reading distance, which is why the PS-30 ideal for video recording. All Subal viewfinders systems are interchangeable and can be mounted easily by the user
All Subal ports with a bayonet mount on this case can be used (except DP-FE2).



Technical data:

Seawater resistant aluminum alloy machined from the block. Hard coating and corrosion treatment are applied to the surface of the housing. In addition, 3 layers of powder coating paint are applied to give the housing the unique Subal color and finish. All parts are made of hard-anodized light alloy, acid-resistant stainless steel, and high-quality plastics, to endure all working conditions. Subal QuickLock closure system.



Width x height x depth:

Approx. 260 x 190 x 130 mm (w/o port and handles)



Flash connection:

2 Flash connectors: Optionally Nikonos V, IKELITE or S6 Sockets connected in parallel. TTL function only with S6 socket and original Canon flash unit or possible with corresponding Flash devices from other manufacturers!



Flash arm mounting:

2 x T-plates 25 mm, TLC - or ultralight base optional



Transmission and features:

  • Main switch
  • Shutter
  • Backlight
  • Zoom / manual focus
  • AF-On
  • Front and rear main dial
  • Mode dial
  • Lens release
  • Cursor

Push buttons for:

  • Metering mode/white balance
  • AF/drive
  • ISO/Flash compensation
  • Menu
  • Picture style
  • Info
  • Playback
  • Delete
  • AF area selector
  • Set
  • Live view
