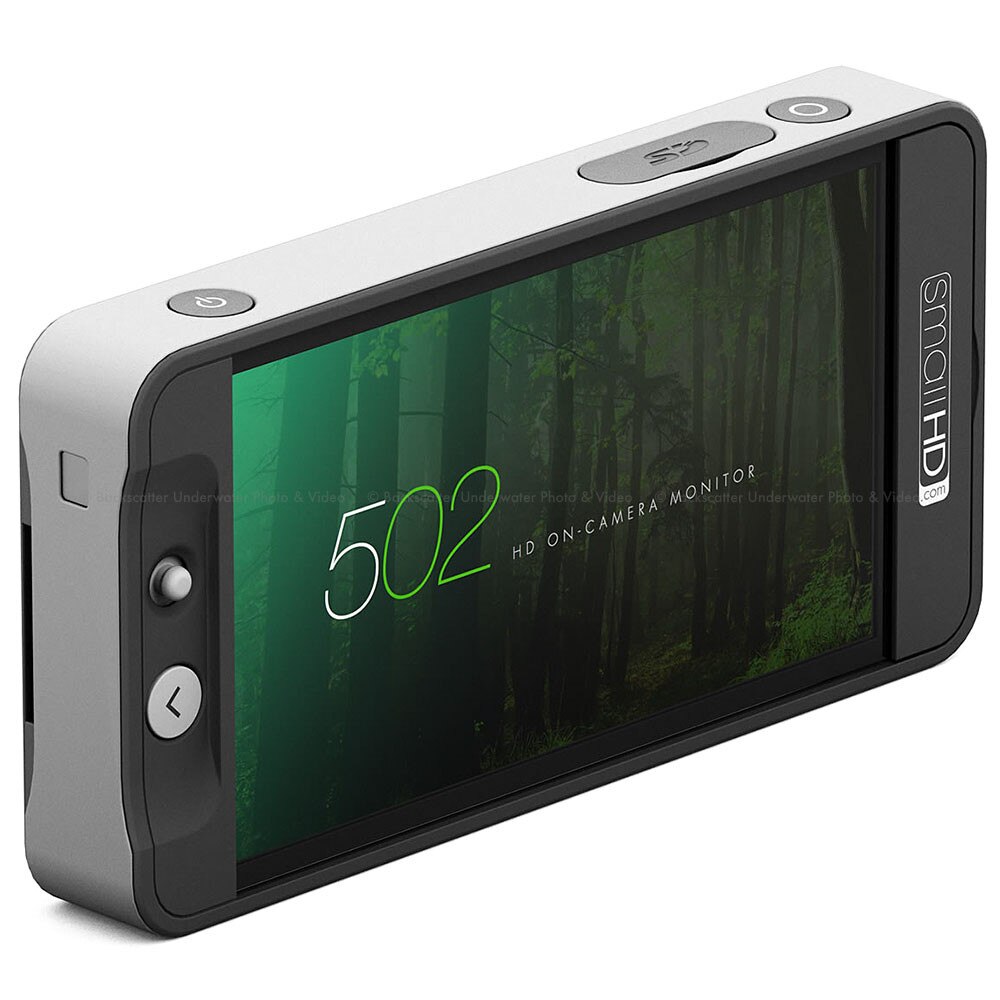

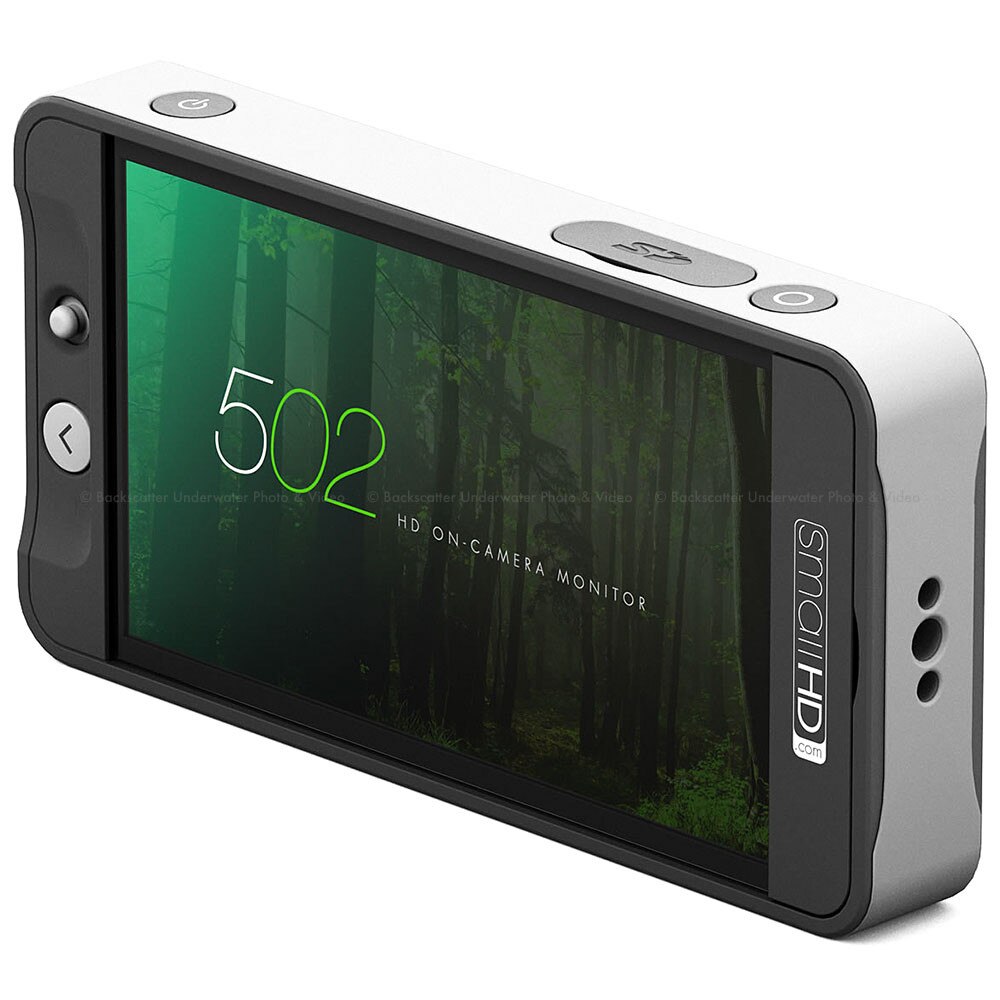

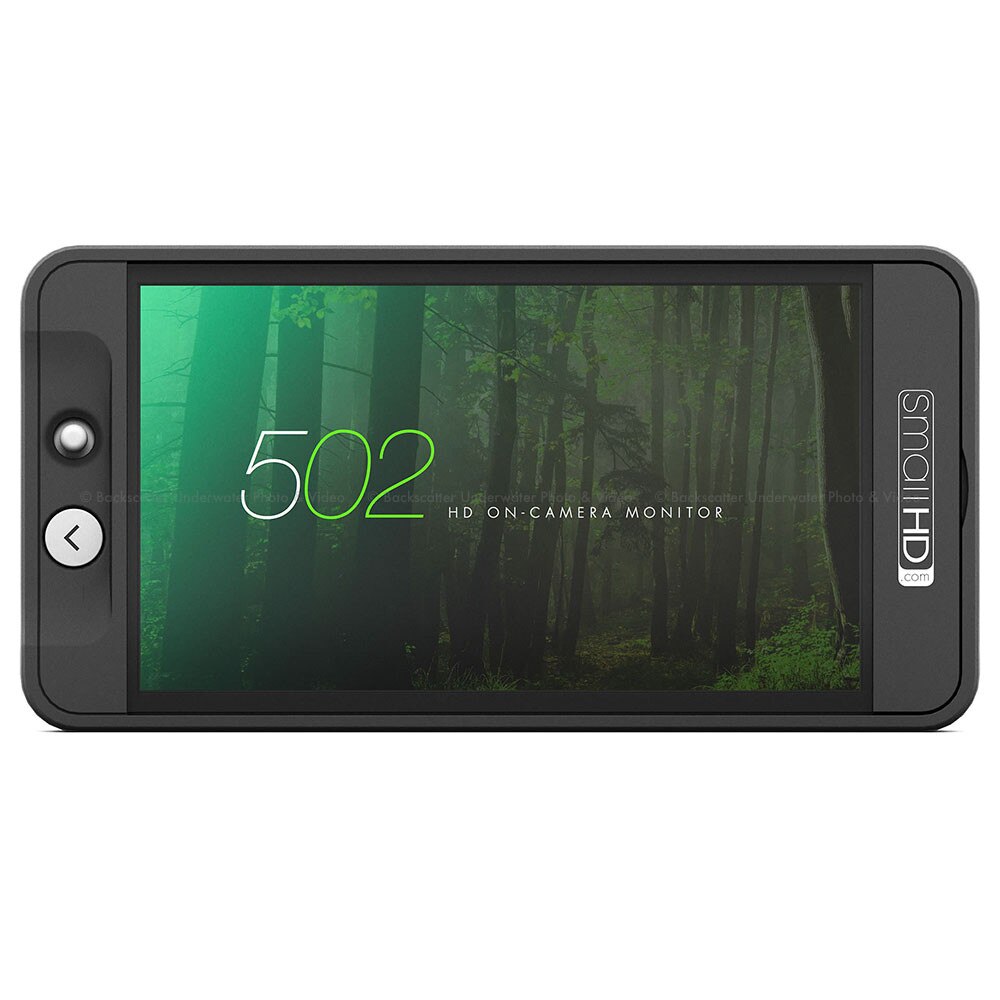

SmallHD 502 Full HD On-Camera 5 inch Monitor On-Camera Starter Kit

The SmallHD 502 is the lightest 5-inch, 1080p Full HD field monitor with color capabilities that rival OLED technology. It's a mere 7.4 oz light and is able to reproduce 100% Rec 709 color.

SKU: # shd-mon-502-kit1

FREE Standard Shipping to USA / CANADA!

Price $1,399.00

Base Price $

Price as Configured $

Price $1,399.00
Price $1,399.00

Custom Options


Overview / Product Description






SmallHD 502 Full HD On-Camera 5 inch Monitor On-Camera Starter Kit




A brilliant display with a desirable form factor.
  • 5-inch screen diagonal
  • 1920x1080 screen resolution
  • 85% NTSC Color Gamut
  • 441 pixels per inch
The SmallHD 502 is the lightest 5-inch, 1080p Full HD field monitor with color capabilities that rival OLED technology. It's a mere 7.4 oz light and is able to reproduce 100% Rec 709 color.



A user experience that will enhance your on set workflow.



Easy as 1,2,3.

1:


Navigate by simply moving and clicking the joystick - this allows easy access to pages which can be customized with any feature, including custom looks (3D LUTs).



2:


With pages set up, the 501 becomes an invaluable on-set tool for letting you quickly spot-check your entire shot for problem areas as well as using LUTs to see new opportunities for shots on the fly.



3:


Zoom into your image at any time by pressing up on the joystick; click to switch to panmode and at any time press the back button to reset.



Specs

Display

Panel TypeLCD
Size Diagonal5
Resolution1920 x 1080
Pixel Density (PPI)441
Aspect Ratio16:9 Native
Active Area5.0 in
Brightness400 cd/m2
Contrast1500:1
Color Gamut85% NTSC (100% Rec 709)
Color Depth24 Bit (8bpc)
Viewing AngleFull 179 Degrees
Backlight TypeLED
Adjustable BacklightYes
Temperature Adaptive ColorYes

Input Signal Types/Formats

3G-SDI
HD-SDIRGB/YCC 4:2:2 and 4:4:4,1080i60,1080i59.94,1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25 , 1080pSF29.97, 720p60, 720p59.94, 720p50
SD-SDI
HDMISupports 8/10/12 bit color, 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p59.94 , 720p50
Component
Composite
AudioHDMI and SDI

Output Signal Types/Formats

3G-SDI
HD-SDIRGB/YCC 4:2:2 and 4:4:4,1080i60,1080i59.94,1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25 , 1080pSF29.97, 720p60, 720p59.94, 720p50
SD-SDI
HDMISupports 8/10/12 bit color, 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p59.94 , 720p50
Component
Composite
AudioStereo Out (headphones)

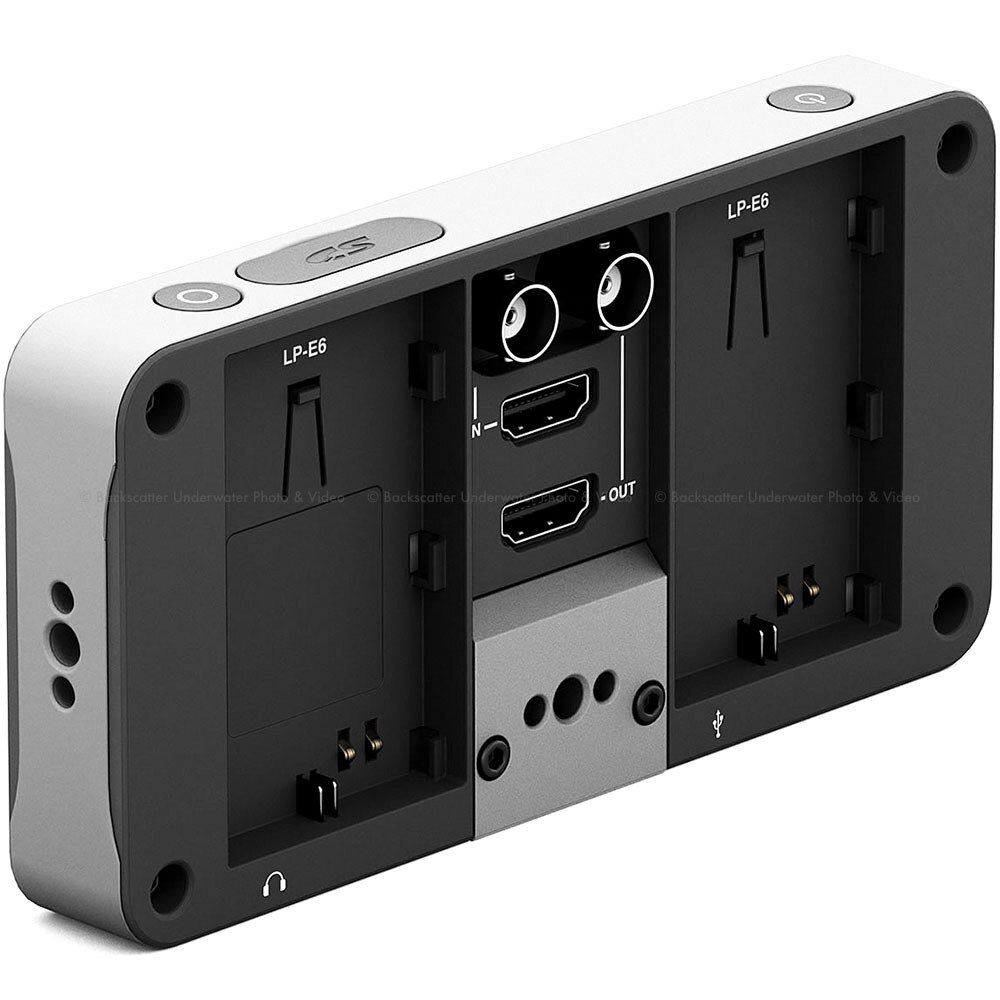

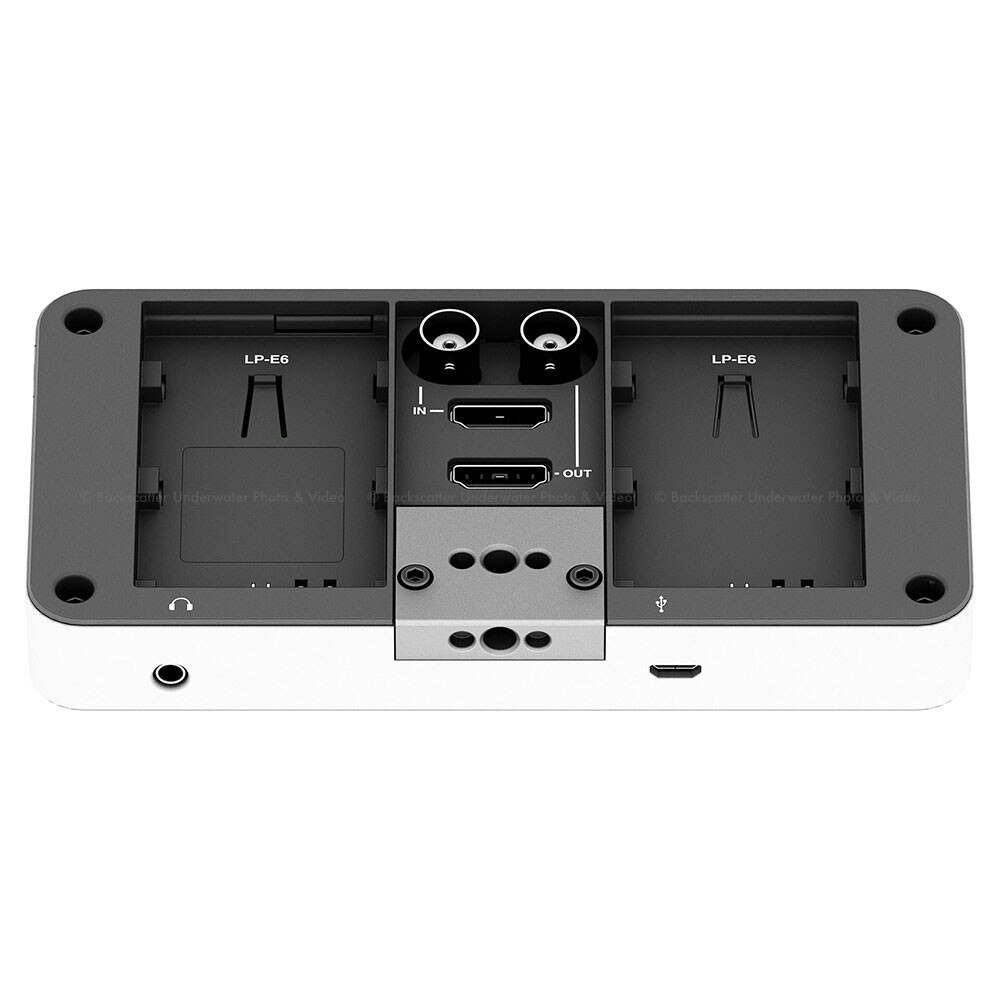

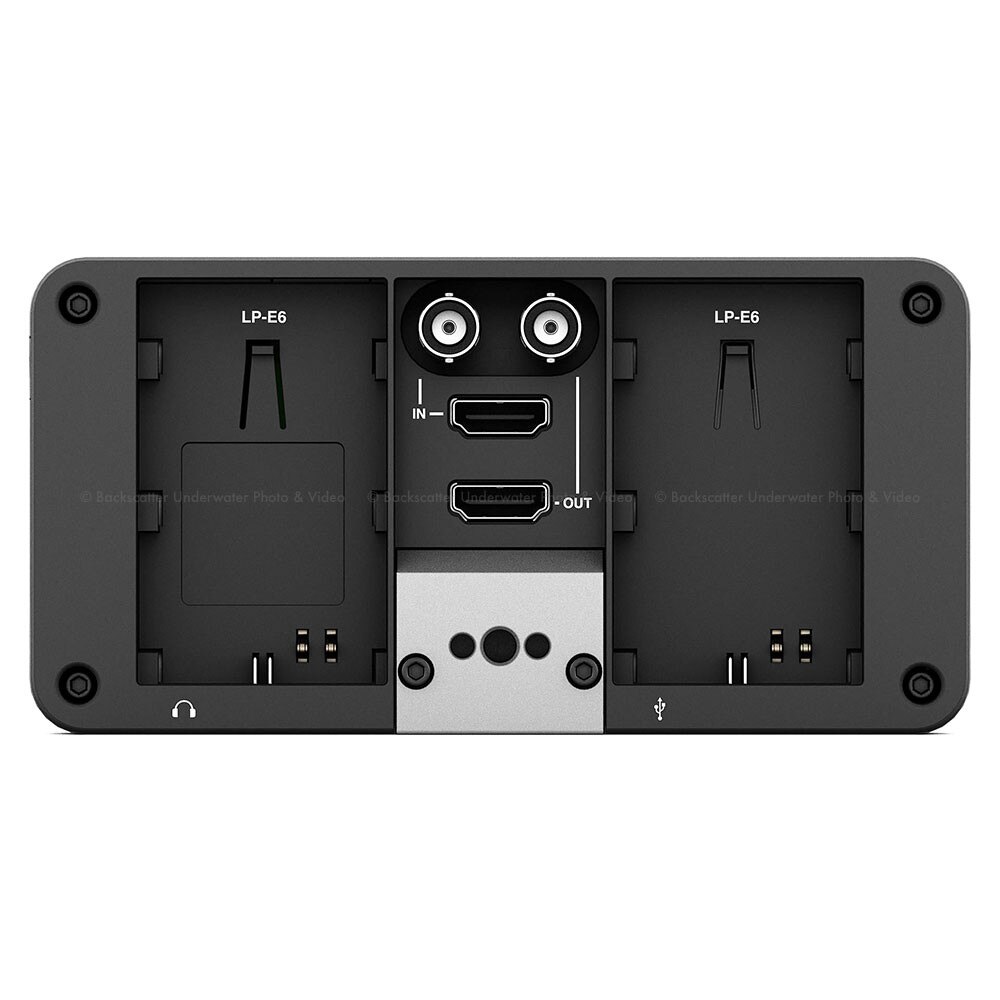

Connector Type

SDI1 SDI (in), 1 SDI (out)
HDMI1 HDMI (in), 1 HDMI (out)
Component
Composite
Audio1/8in Mini Stereo Headphone
PowerLP-E6 style
USBMicro-USB 5V @ .5A

Controls

Primary Control InterfaceJoystick + Back button
Record/CaptureCapture button
User Defined FunctionsUses Pages in conjunction with the Joystick control to provide any number of user defined monitoring options.
RF Wireless Remote / External ControlVia Remote
USB Remote / External Control

Data I/O

StorageSD Card (full-size)
USBFactory use and Future user functionality
Wireless
Wifi

Power

Connector TypeLP-E6 style
Voltage6.0 - 8.4 volts
Power Consumption8 watts
Battery Plate IncludedLP-E6 (2 battery slots)
Recommended Power SupplyLP-E6 coupler with built-in 7.2v, 2A regulator
Overload ProtectionYes
Smart Battery CompliantYes
Battery TypesLP-E6
Battery Chemistry
Output Voltage (VDC)
Battery Capacity (mAh)
Battery Charging Time (hours)

Environmental

ComplianceCE, FCC, IC
Operating Temperature30F to 90F
Storage Temperature0F to 120F
Screen Protection1mm Acrylic (user replaceable)
Height2.9" (7.37cm)
Width5.8" (14.73cm)
Depth/Length.8" (2.03cm)
Weight (Item Only without battery)80oz (2267.96g)
Weight (Packaged)80oz (2267.96g)
Mount Points(3) -20 thread points (bottom, back & right side)
ConstructionAluminum Frame with Rubberized Coating
Note:

Software

Pixel Zoom (type)2x & 4x with smooth pan via joystick
Frame GuidesYes
DSLR ScaleCanon, Nikon
Custom ScaleYes
Anamorphic De-SqueezeYes
Image Rotate(Manual/Automatic)Near Future
Image Flip (Manual/Automatic)Manual and Auto Flip
Cross ConversionNear Future
Focus Assist (Colors)Yes
PeakingYes
False ColorYes
ZebraYes - Multiple
WaveformYes
Vectorscope
PIPNo
RGB Parade
HistogramNear Future
Horizon IndicatorNo
Image CaptureIndividual and Time Lapse
Dailies Recording/Playback
Master Recording
Wifi Streaming
Custom LUTSYes
LUT CreationNo
LUT DownstreamFuture
LUT ImportYes
Onion Skinning
Image OverlayYes
Blue OnlyNo
FirmwareUser Upgradable. Current Version: 0.3
Audio MetersNear Future




This Kit Includes

502 Full HD On-Camera Monitor

SDI + HDMI in/out

1920 x 1080 display resolution

5-inch screen diagonal

Scopes, Focus Assist, Pixel Zoom

(more)...







LP-E6 Battery and Charger Kit

Two (2) LP-E6 style batteries (Canon 5D/7D)

One battery charger

Euro plug style adapter

12v car power cable for charging on-the-go







Small Hard Case For 500 Series

Airtight hard case for 500 Series monitors and accessories

Customizable foam insert (pick-and-pluck)

7.3 x 5 x 3.2 inch interior

8.7 x 7.5 x 3.9 inch exterior







4GB SD Card

Transfer various files and presets between monitors and your computer, such as look files, image captures, firmware updates and monitor profiles.







5 Inch Neoprene Sleeve

Neoprene Sleeve for 500 Series and DP4 models







500 Series Acrylic Screen Protector

Hard acrylic screen protection

Simple toolless replacement

Fits 500 Series monitors







Hot Shoe Ball Mount

Mount devices to the top of your camera

Fits any standard camera shoe mount







BNC Cable for SDI 36-inch

3 ft. SDI Cable - BNC to BNC Serial Digital Interface Cable







36-inch HDMI to HDMI Cable

3 ft. HDMI to HDMI Male-Male Cable







12-inch Thin Mini-HDMI to HDMI Cable

Thin, flexible, and conveniently short mini HDMI cable

Length: 12-inches

Outer Diameter: 4.5mm







SmallHD Cleaning Cloth

SmallHD Cleaning Cloth
