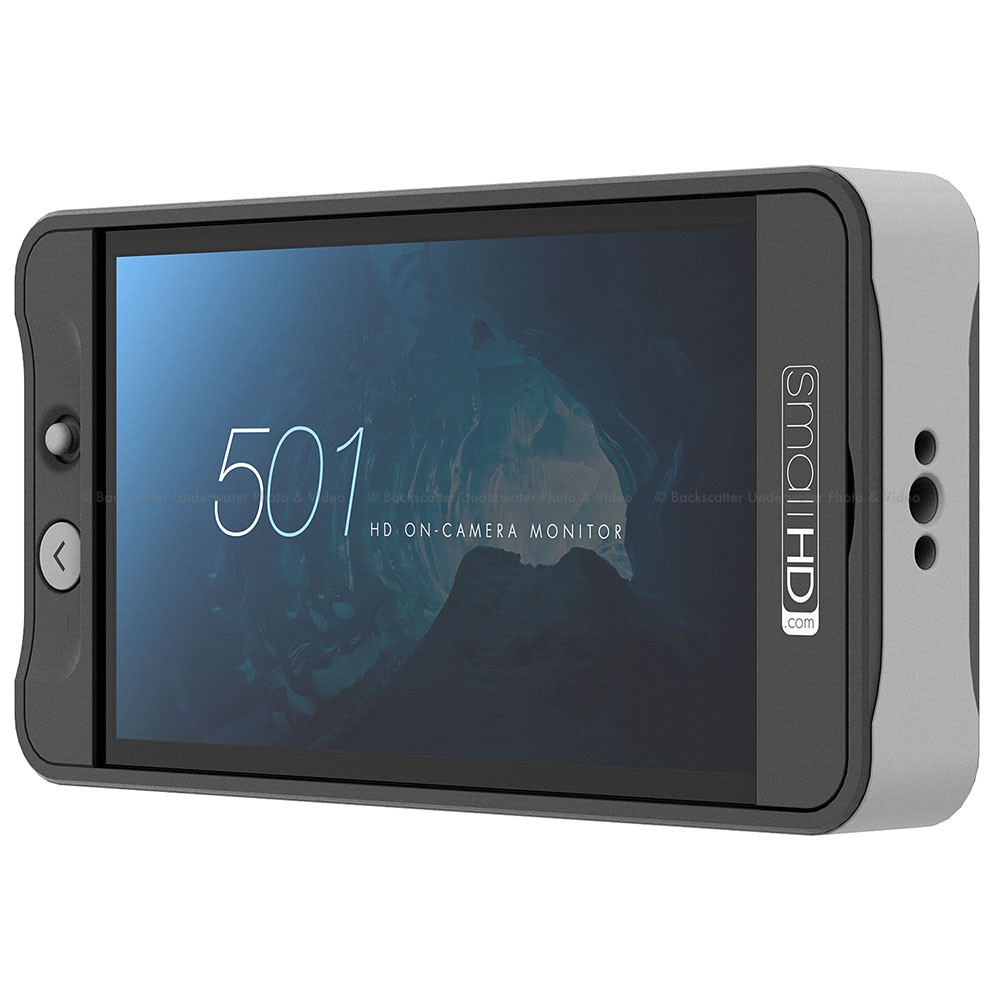

SmallHD 501 Full HD On-Camera 5 inch Monitor On-Camera Starter Kit

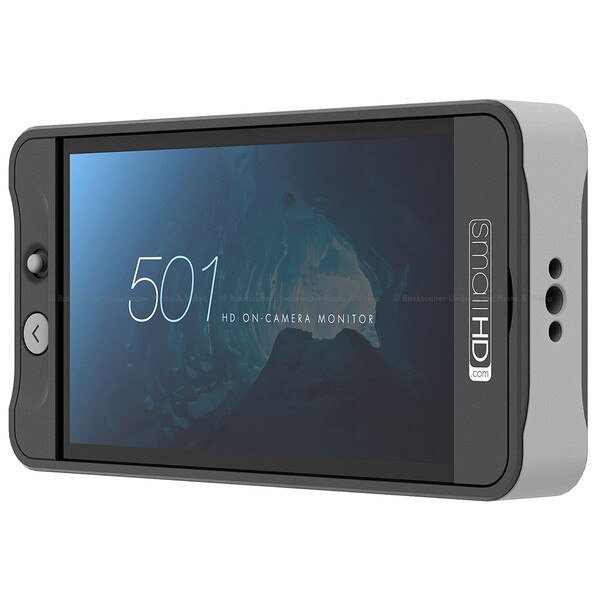

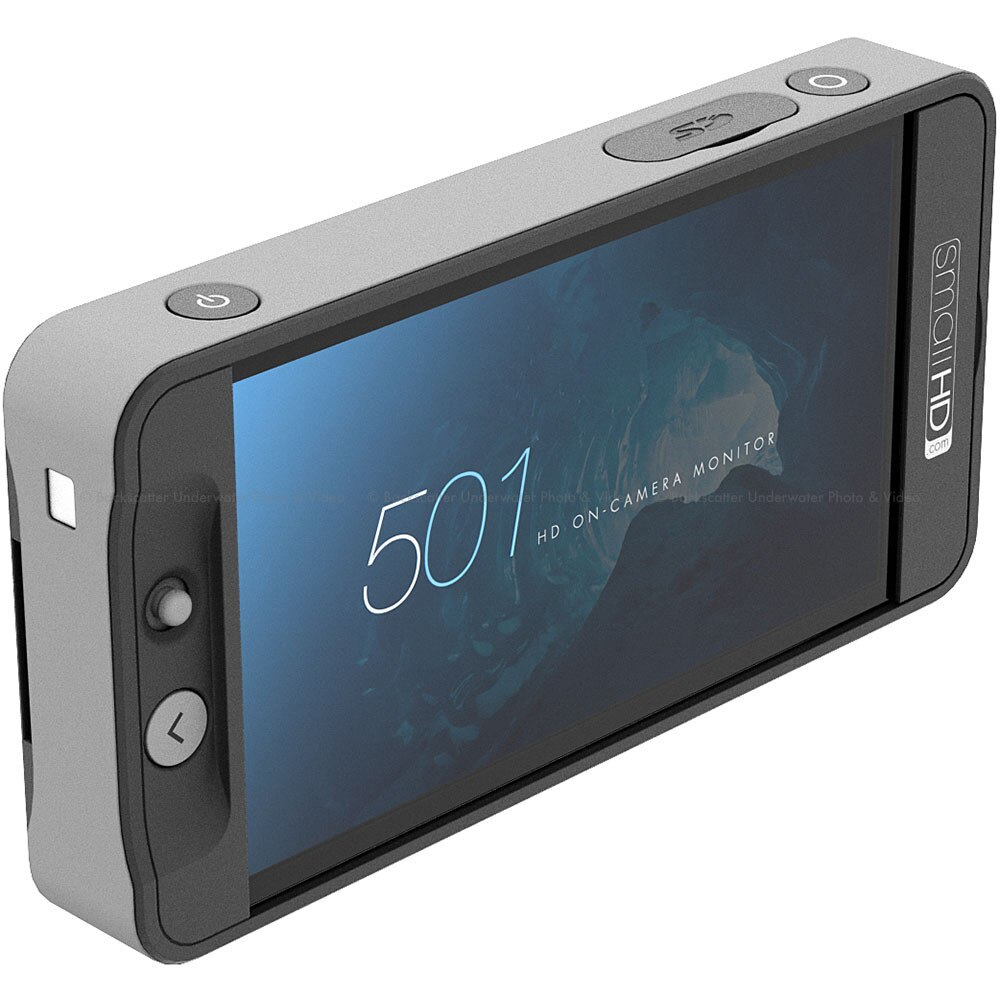

The SmallHD 501 is the lightest 5-inch, 1080p Full HD field monitor with color capabilities that rival OLED technology. It's a mere 7.4 oz light and is able to reproduce 100% Rec 709 color.

SKU: # shd-MON-501-KIT1

FREE Standard Shipping to USA / CANADA!

Price $1,099.00

Base Price $

Price as Configured $

Price $1,099.00
Price $1,099.00

Custom Options


Overview / Product Description


.





SmallHD 501 Full HD On-Camera 5 inch Monitor On-Camera Starter Kit

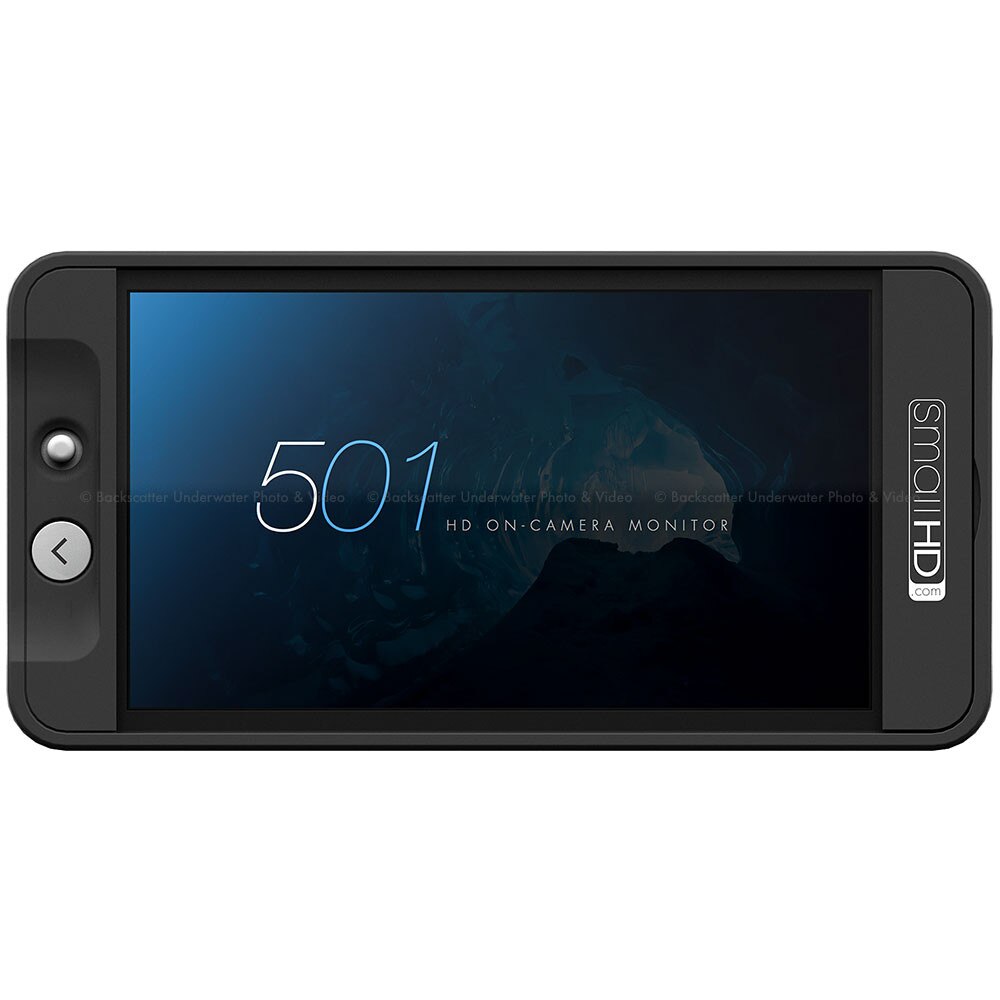

A brilliant display with a desirable form factor.
  • 5-inch screen diagonal
  • 1920x1080 screen resolution
  • 85% NTSC Color Gamut
  • 441 pixels per inch
The SmallHD 501 is the lightest 5-inch, 1080p Full HD field monitor with color capabilities that rival OLED technology. It's a mere 7.4 oz light and is able to reproduce 100% Rec 709 color.

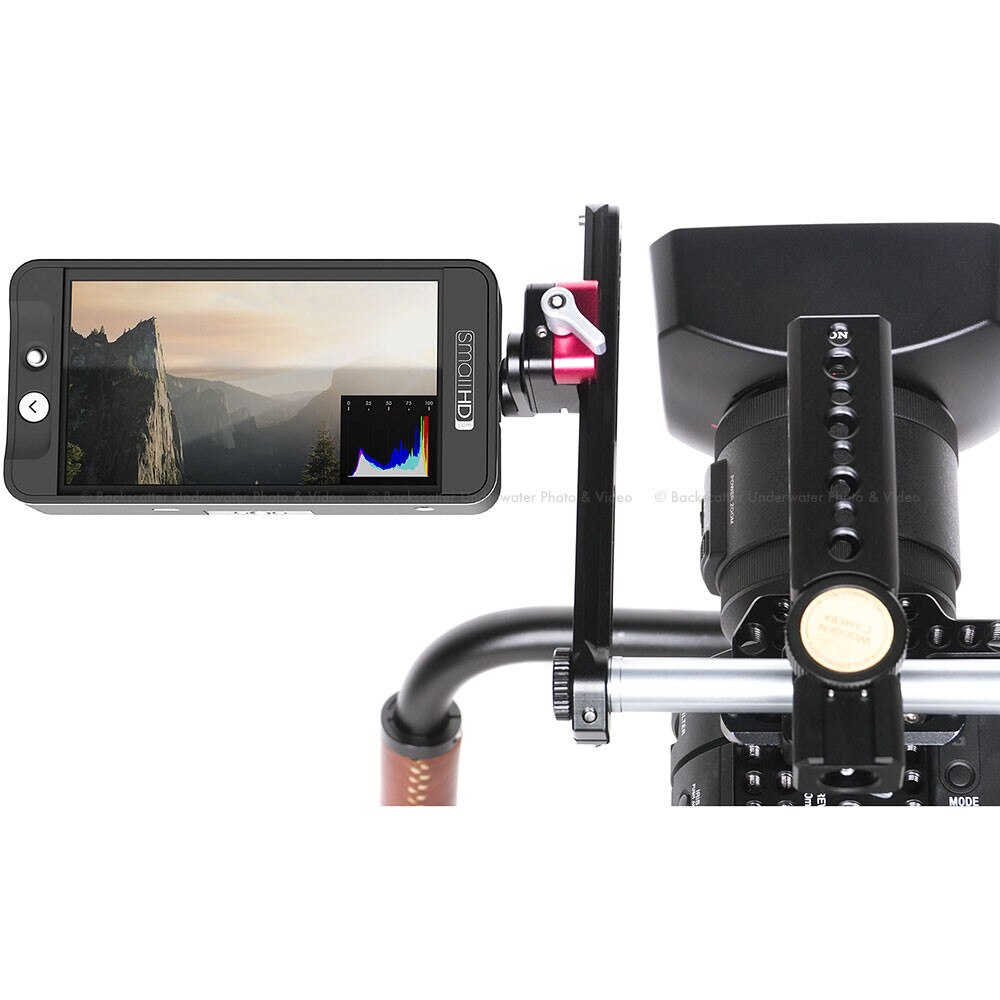

A user experience that will enhance your on set workflow.



Easy as 1,2,3.

1:


Navigate by simply moving and clicking the joystick - this allows easy access to pages which can be customized with any feature, including custom looks (3D LUTs).



2:


With pages set up, the 501 becomes an invaluable on-set tool for letting you quickly spot-check your entire shot for problem areas as well as using LUTs to see new opportunities for shots on the fly.



3:


Zoom into your image at any time by pressing up on the joystick; click to switch to panmode and at any time press the back button to reset.



Specs

Display

Panel TypeLCD
Size Diagonal5
Resolution1920 x 1080
Pixel Density (PPI)441
Aspect Ratio16:9 Native
Active Area5.0 in
Brightness400 cd/m2
Contrast1500:1
Color Gamut85% NTSC (100% Rec 709)
Color Depth24 Bit (8bpc)
Viewing AngleFull 179 Degrees
Backlight TypeLED
Adjustable BacklightYes
Temperature Adaptive ColorYes

Input Signal Types/Formats

3G-SDI
HD-SDI
SD-SDI
HDMISupports YCC 4:2:2, 8/10/12 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p/100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p59.94, 480p60, 480p100, 480p119.88, 480p120, 480p239.76, 480p240, 576p50, 576p100, 576p200, 480i59.94, 480i60, 480i119.88, 480i120, 480i239.76, 480i240, 576i50, 576i100, 576i200
Component
Composite
AudioHDMI

Output Signal Types/Formats

3G-SDI
HD-SDI
SD-SDI
HDMISupports YCC 4:2:2, 8/10/12 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p/100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p59.94, 480p60, 480p100, 480p119.88, 480p120, 480p239.76, 480p240, 576p50, 576p100, 576p200, 480i59.94, 480i60, 480i119.88, 480i120, 480i239.76, 480i240, 576i50, 576i100, 576i200
Component
Composite
AudioStereo Out (headphones)

Connector Type

SDI
HDMI1 HDMI (in), 1 HDMI (out - always ON)
Component
Composite
Audio1/8in Mini Stereo Headphone
PowerLP-E6 style
USBMicro-USB 5V @ .5A

Controls

Primary Control InterfaceJoystick + Back button
Record/CaptureCapture button
User Defined FunctionsUses Pages in conjunction with the Joystick control to provide any number of user defined monitoring options.
RF Wireless Remote / External ControlFuture
USB Remote / External Control

Data I/O

StorageSD Card (full-size)
USBFactory use and Future user functionality
Wireless
Wifi

Power

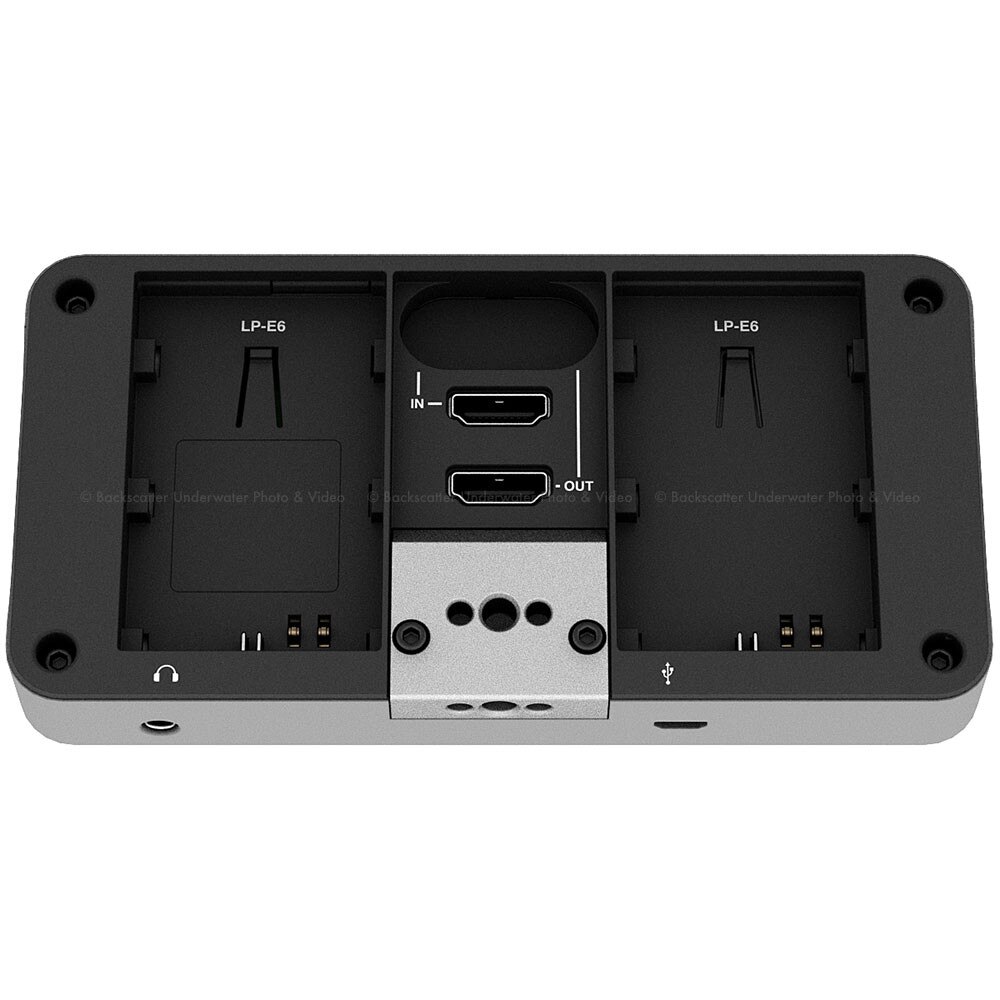

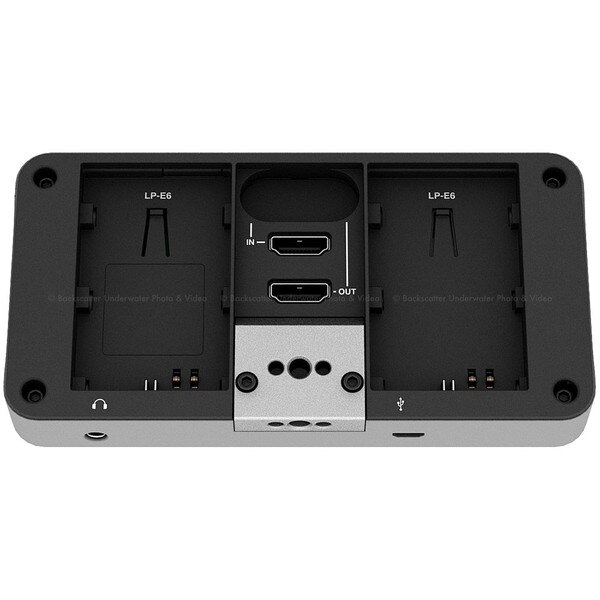

Connector TypeLP-E6 style
Voltage6.0 - 8.4 volts
Power Consumption6 watts
Battery Plate IncludedLP-E6 (2 battery slots)
Recommended Power SupplyLP-E6 coupler with built-in 7.2v, 2A regulator
Overload ProtectionYes
Smart Battery CompliantYes
Battery TypesLP-E6
Battery Chemistry
Output Voltage (VDC)
Battery Capacity (mAh)
Battery Charging Time (hours)

Environmental

ComplianceCE, FCC, IC
Operating Temperature30F to 90F
Storage Temperature0F to 120F
Screen Protection1mm Acrylic (user replaceable)
Height2.9" (7.37cm)
Width5.8" (14.73cm)
Depth/Length.8" (2.03cm)
Weight (Item Only without battery)7oz (198.45g)
Weight (Packaged)14oz (396.89g)
Mount Points(3) -20 thread points (bottom, back & right side)
ConstructionAluminum Frame with Rubberized Coating
Note:

Software

Pixel Zoom (type)2x & 4x with smooth pan via joystick
Frame GuidesYes
DSLR ScaleCanon, Nikon
Custom ScaleYes
Anamorphic De-SqueezeYes
Image Rotate(Manual/Automatic)Near Future
Image Flip (Manual/Automatic)Manual and Auto Flip
Cross Conversion
Focus Assist (Colors)Yes
PeakingYes
False ColorYes
ZebraYes - Multiple
WaveformYes
Vectorscope
PIPNo
RGB Parade
HistogramNear Future
Horizon IndicatorNo
Image CaptureIndividual and Time Lapse
Dailies Recording/Playback
Master Recording
Wifi Streaming
Custom LUTSYes
LUT CreationNo
LUT DownstreamFuture
LUT ImportYes
Onion Skinning
Image OverlayYes
Blue OnlyNo
FirmwareUser Upgradable. Current Version: 0.3
Audio MetersNear Future

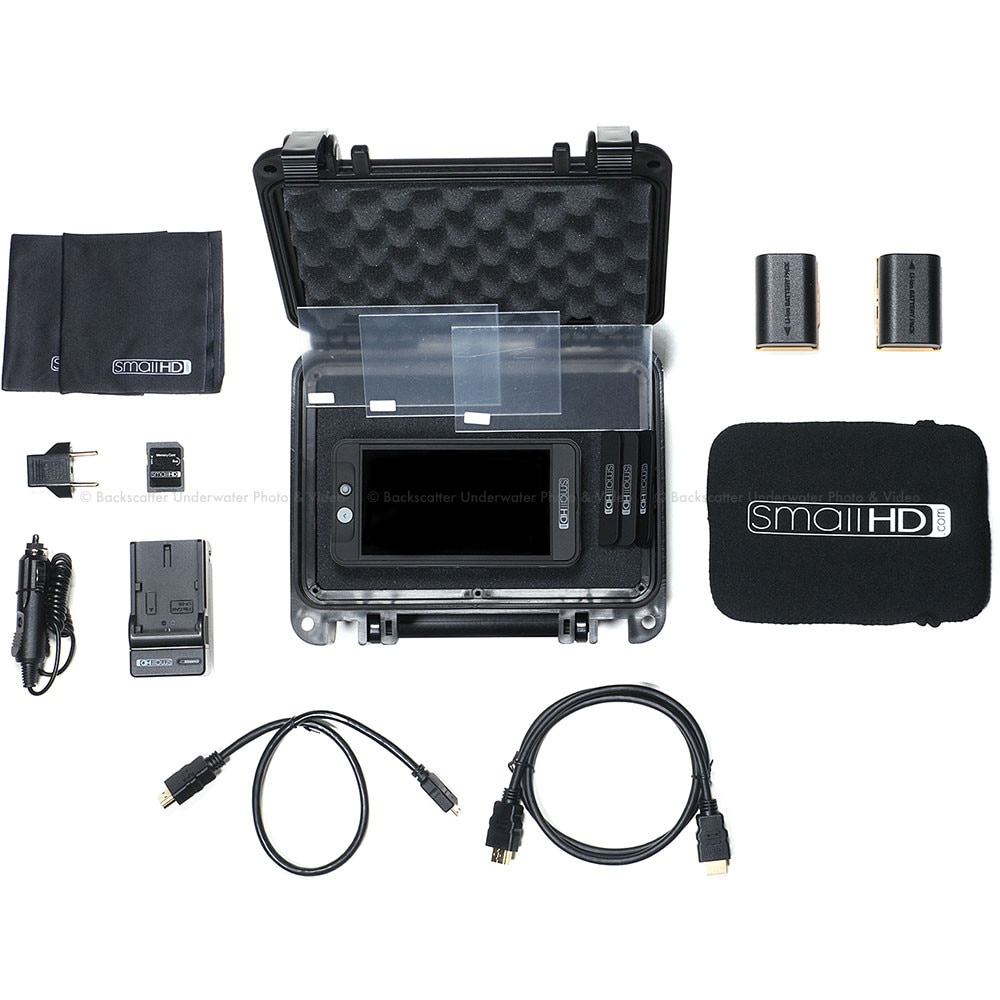

This Kit Includes

501 Full HD On-Camera Monitor

SmallHD 501 5in 1920x1080 LCD Field Monitor

(Does not include Batteries/AC Power Supply)







500 Series Monitor Case

Air-Tight 500 Series Monitor Case







SmallHD LP-E6 Battery and Charger Kit

SmallHD LP-E6 Battery and Charger Kit w 2 LP-E6 Smart Batteries and Charger







3 ft. HDMI to HDMI Cable

3 ft. HDMI to HDMI Male-Male Cable







12in Mini-HDMI to HDMI Cable

12in Mini-HDMI to HDMI Cable







500 Series Acrylic Screen Protector

Acrylic Screen Protection for your 500 Series Monitor







5 Inch Neoprene Sleeve

Neoprene Sleeve for 500 Series and DP4 models

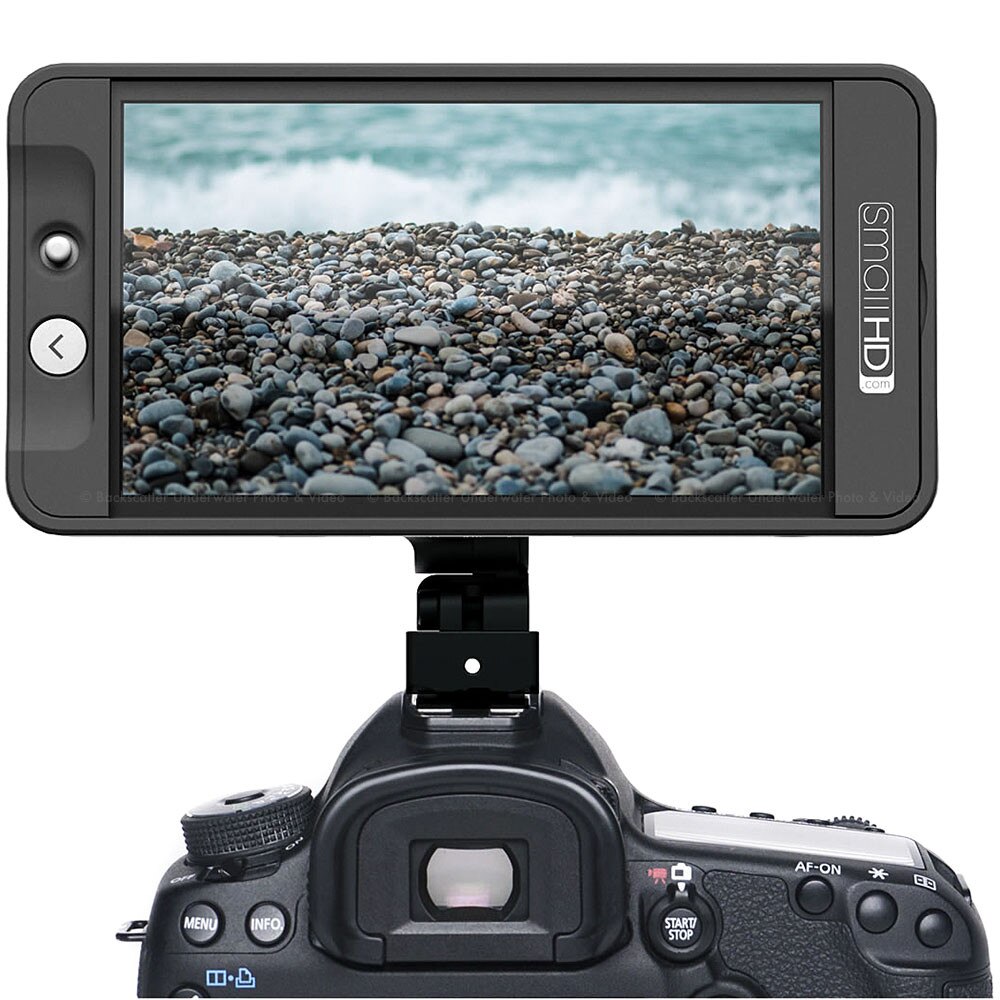

Hot Shoe Ball Mount

Hot Shoe Ball Mount







8GB SD Card

Transfer various files and presets between monitors and your computer, such as look files, image captures, firmware updates and monitor profiles.







SmallHD Cleaning Cloth

SmallHD Cleaning Cloth
