Nauticam NA-Z7V Underwater Housing for Nikon Z 7 & Z 6

Underwater image makers rely on environmental diversity to push their art to its limits and not just in the underwater environment. With the introduction of the Nikon Z7 and Z6, the full-frame mirrorless camera market has major new competitors to push the segment even further.

The Z7 and Z6, Nikon's first full-frame mirrorless cameras offer underwater shooters the same legendary Nikon sensors with the versatility of an electronic viewfinder and the more compact form factor of a mirrorless system. The NA-Z7V supports both the Z6 and Z7 models and features the larger-bore M24 bulkhead that supports HDMI 2.0 connections needed for the Atomos Ninja V Recorder/Monitor.

The Z7 and Z6, Nikon's first full-frame mirrorless cameras offer underwater shooters the same legendary Nikon sensors with the versatility of an electronic viewfinder and the more compact form factor of a mirrorless system. The NA-Z7 supports both the Z6 and Z7 models.


THE NIKON Z6 AND Z7 CAMERAS

For many full-frame Nikon shooters, the appeal of a mirrorless camera had been tempered by the thought of having to invest in and master a new system by moving to another ecosystem such as Sony. For those awaiting a mirrorless system that utilized Nikon imaging technology and ergonomics, the wait is over. The Z6 and Z7 cameras feature an identical body, differing only in their feature sets, an ideal feature when it comes to housing the camera for underwater use.

Both camera bodies are built around the new Z-mount. With an incredibly wide 55mm mount diameter (17% larger than F-mount) and very short flange distance, the Z-mount is able to offer a maximum aperture of F0.95. While the current range of Z-mount lenses is limited, almost the entire line of F-mount lenses is usable with the optional FTZ Adapter. When using the adapter, even non-VR lenses benefit from the camera's in-body stabilization. VR and Z-Mount lenses receive 5-axis stabilization whereas non-VR F-mount lenses have access to 3-axis stabilization.

There is also a dedicated e-VR (electronic VR) that combines optical and electronic stabilization for video shooting. Both the Z6 and Z7 are able to capture internal UHD 4K at 30fps or 1080 HD at up to 120fps at 144 Mbps. Capture uses the full width of the sensor and both cameras are capable of outputting 10-bit N-log UHD 4K over HDMI that supports start/stop control.

The OLED electronic viewfinder (EVF) of both the Z6 and Z7 gives 100% frame coverage at Quad-VGA (3.69M dot) resolution. When triggering external flashes, both cameras feature a 1/200 X-sync shutter speed.


THE NIKON Z7 CAMERA

The Z7 features a high-resolution 45.7MP FX-format sensor that can shoot at up to 9FPS. The Z7 features a wide ISO range of 64-25,600. Autofocus is achieved with 493 on-sensor AF points that cover 90% of the frame and the camera intelligently switched between contrast-detection and phase-detection points to achieve accurate focus regardless of light conditions.


KEY CAMERA SPECS:

• 45.7MP FX-Format Sensor with no OLPF
• 9 FPS continuous shooting
• 64-25,600 ISO Range
• UHD 4K 30p recording with no FOV crop
• 10bit UHD 4K N-log output via HDMI with start/stop support
• 5-axis VR stabilization (with Z lenses)
• 8K timelapse with exposure smoothing
• CF Express ready (currently supports XQD)



THE NIKON Z6 CAMERA

The Z6 is equipped with a 24.5MP FX-format sensor capable of up to 12FPS continuous shooting with an ISO range of 100-51,200. The video is recorded internally at up to UHD 4K 30p with no field-of-view crop. 273 on-sensor focus points cover 90% of the fame and the Z 6 intelligently switched between contrast-detection and phase-detection points to assure accurate autofocus.


KEY CAMERA SPECS:

24.5MP FX-Format Sensor with OLPF 12 FPS continuous shooting 100-51,200 ISO Range UHD 4K 30p recording with no FOV crop 10bit N-log UHD 4K output via HDMI with start/stop support 5-axis VR stabilization (with Z-mount lenses) 4K time lapse CF Express ready (currently XQD only)


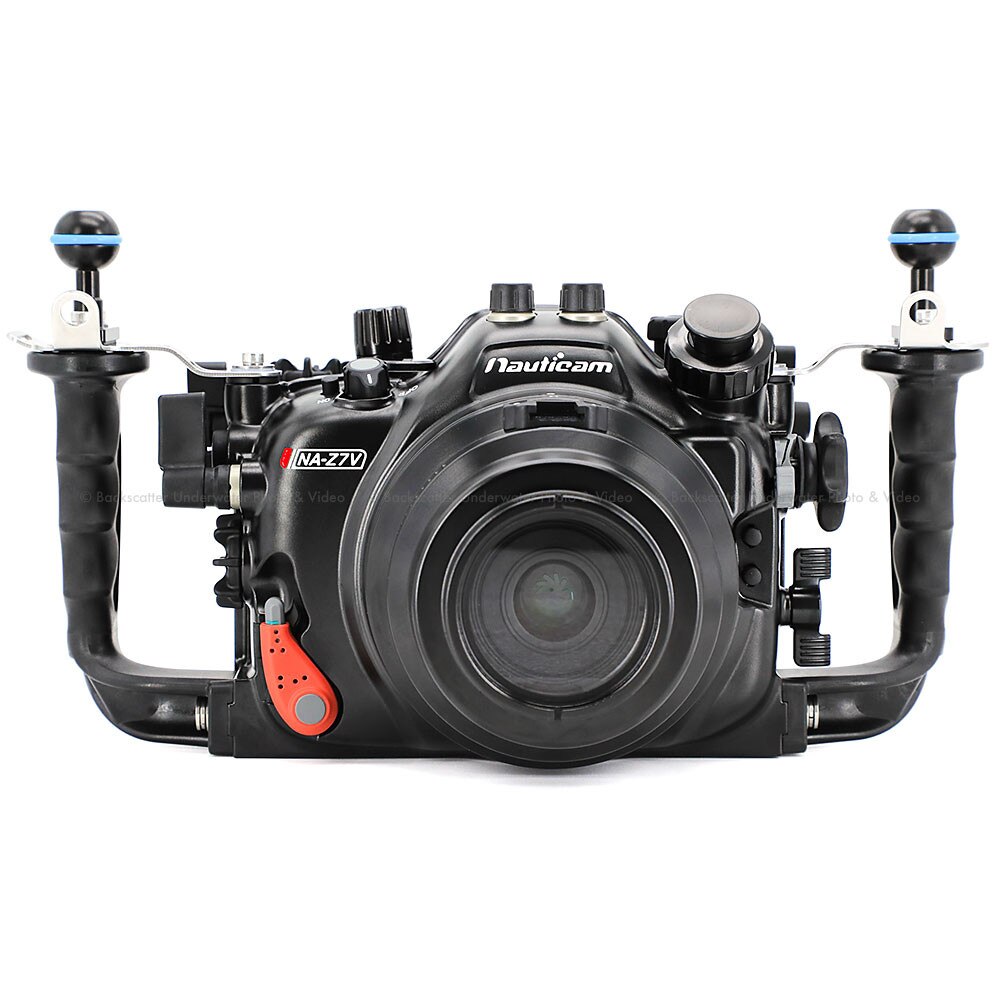

THE NAUTICAM NA-Z7 UNDERWATER HOUSING

Nauticam has produced a variety of housings for Nikon DSLR cameras and is not new to the mirrorless format. Nauticam has created housings for the mirrorless full frame, APS-C and MFT format mirrorless cameras from a variety of camera manufacturers. The NA-Z7, just as Nikon's Z6/7 cameras is an evolutionary step in underwater housings blending the Nikon F mount and new Z mount seamlessly in one housing.


F AND Z MOUNT SUPPORT

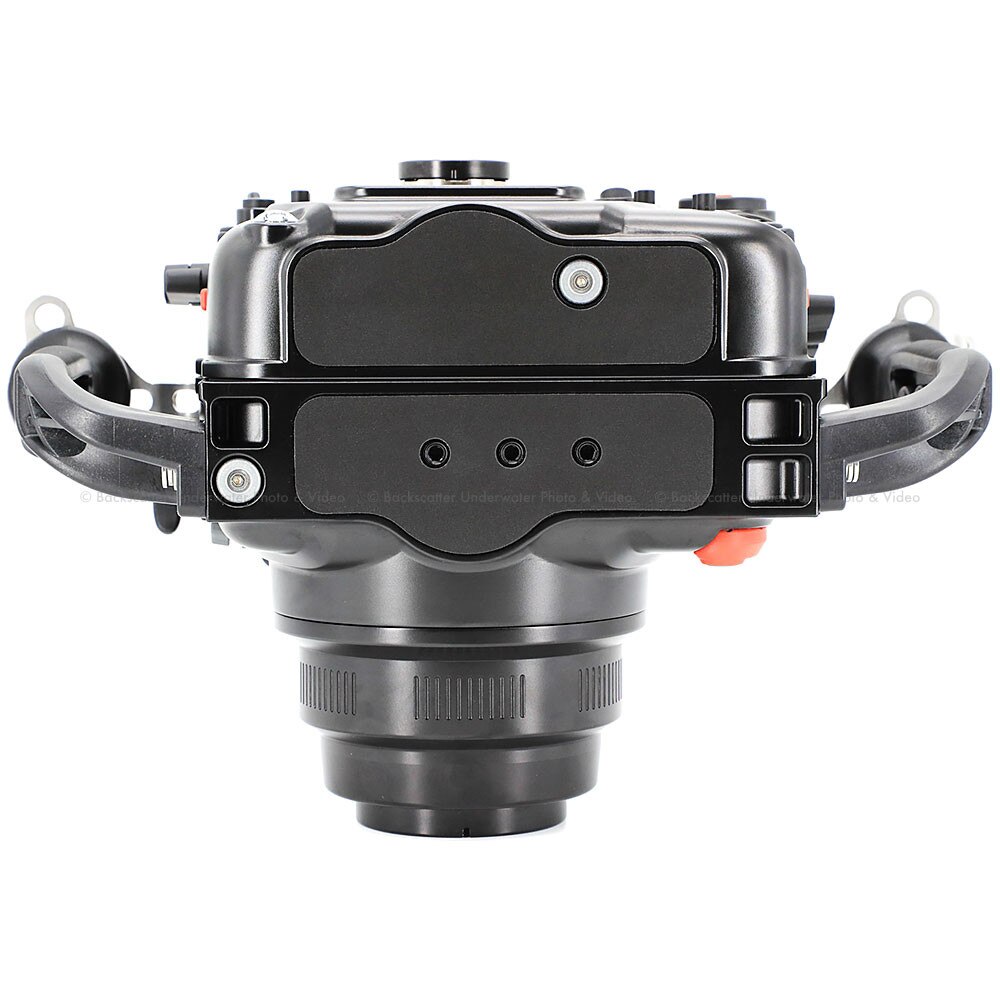

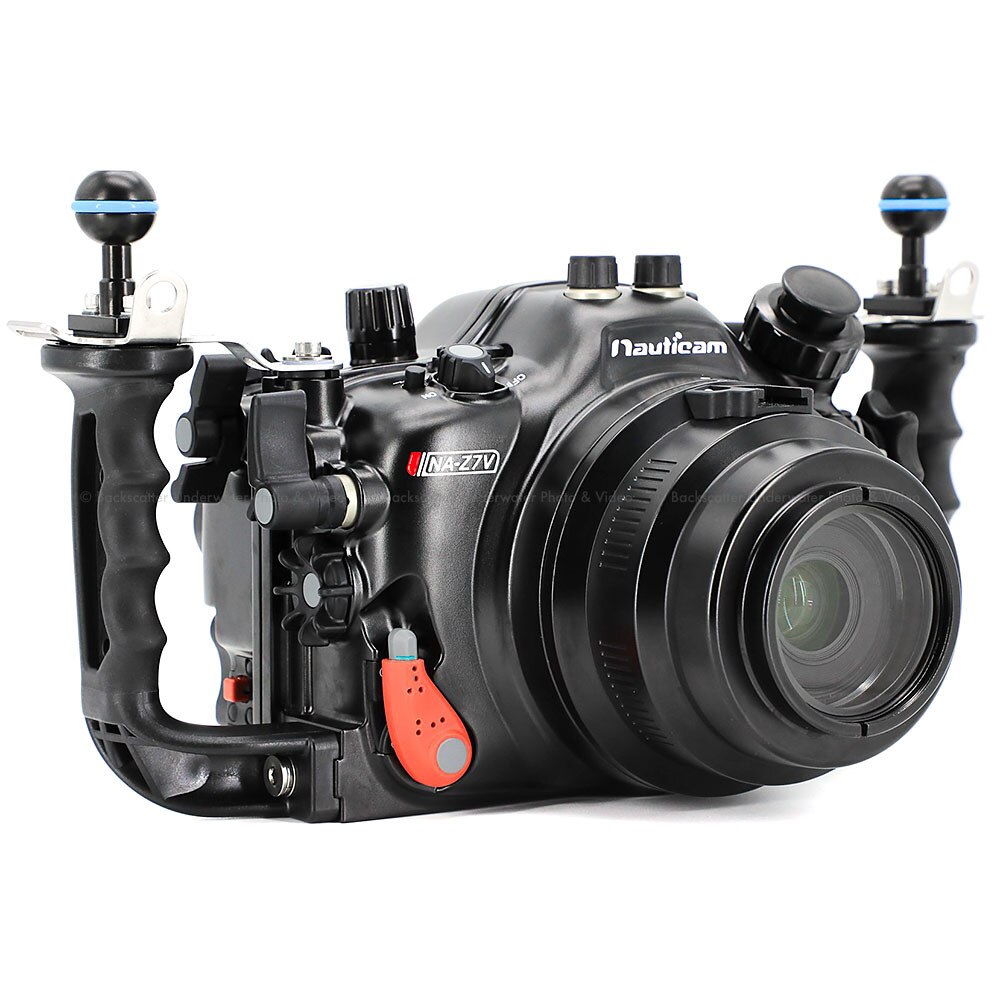

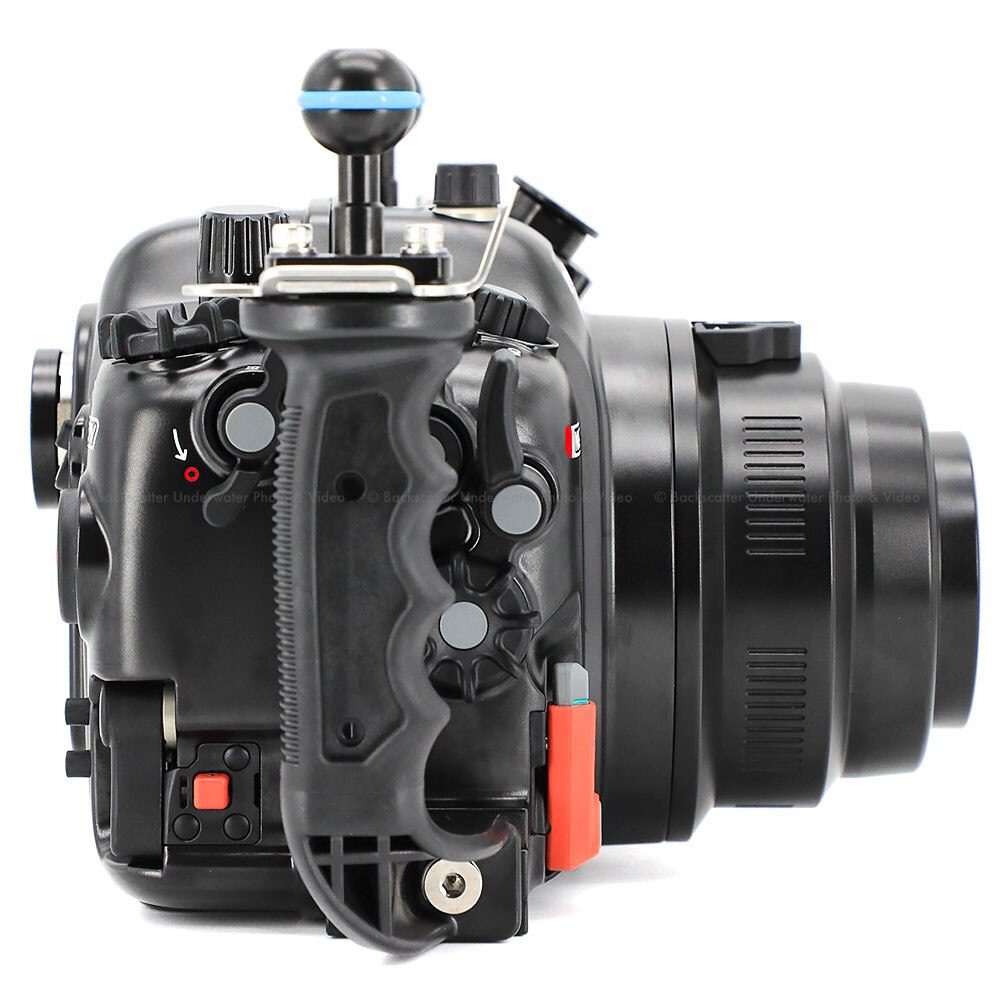

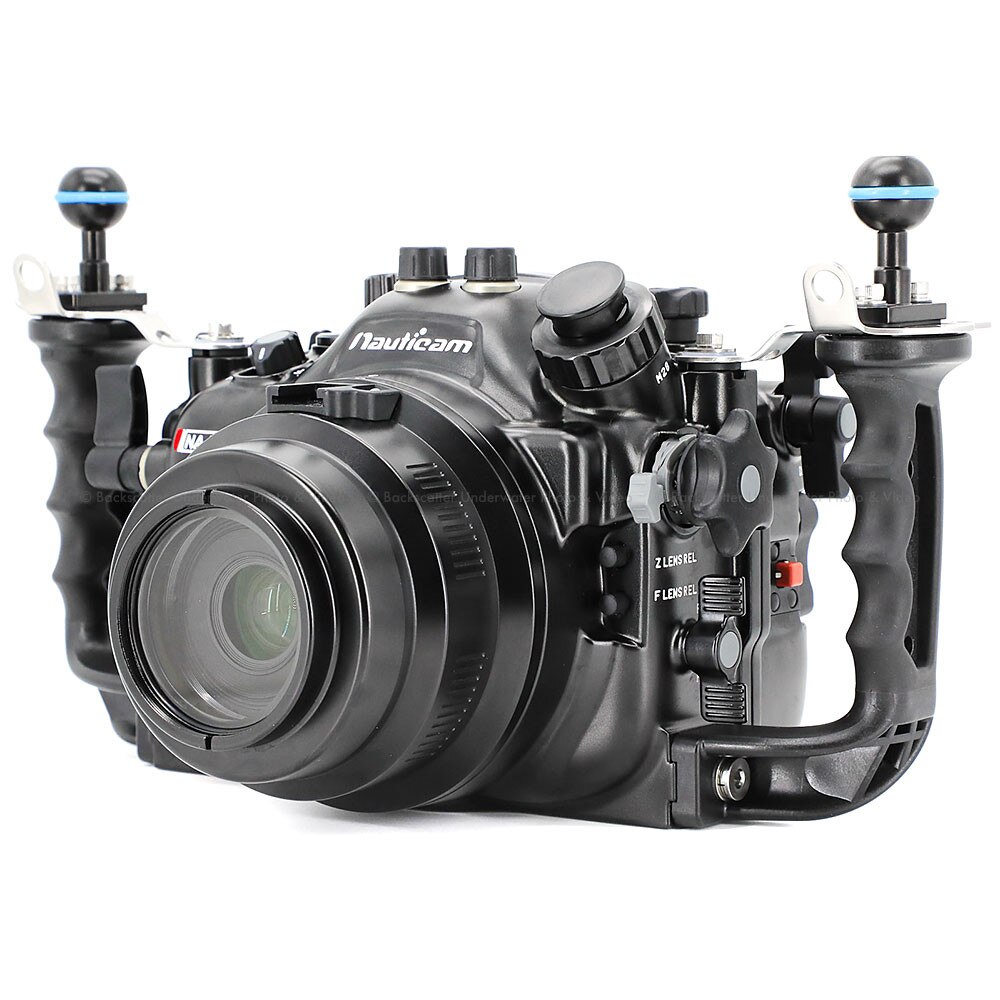

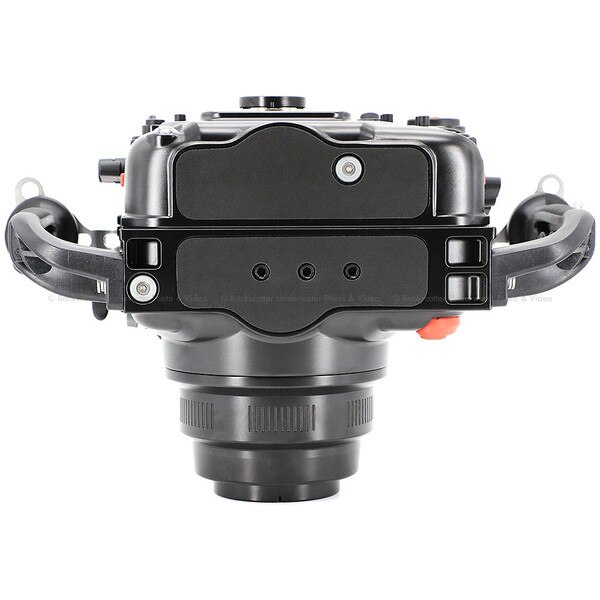

The Nauticam NA-Z7 housing allows not only the use of the new Z mount Nikon glass but also the F mount lenses with the Nikon FTZ Adapter. This is critical as the new Z mount lenses are being phased in over the next few years. The Nauticam NA-Z7 housing features two lens release buttons that correspond to either F or Z mount lenses. When switching between F and Z mount lenses, the camera must be removed from the housing to remove the adapter. When working within either the F or Z mount system use the appropriate lens release button to switch lenses without having to remove the camera from the housing. A vacuum system reset switch is located below the tray as well so there is no need to open the rear of the housing during lens or port changes.

The NA-Z7 is part of the N120 port system which allows for full support of Nikon F mount lenses with the same ports needed for their application on Nikon SLR housings. As Z mount lenses become available Nauticam will add supported configurations.


INTELLIGENT CONTROL PLACEMENT

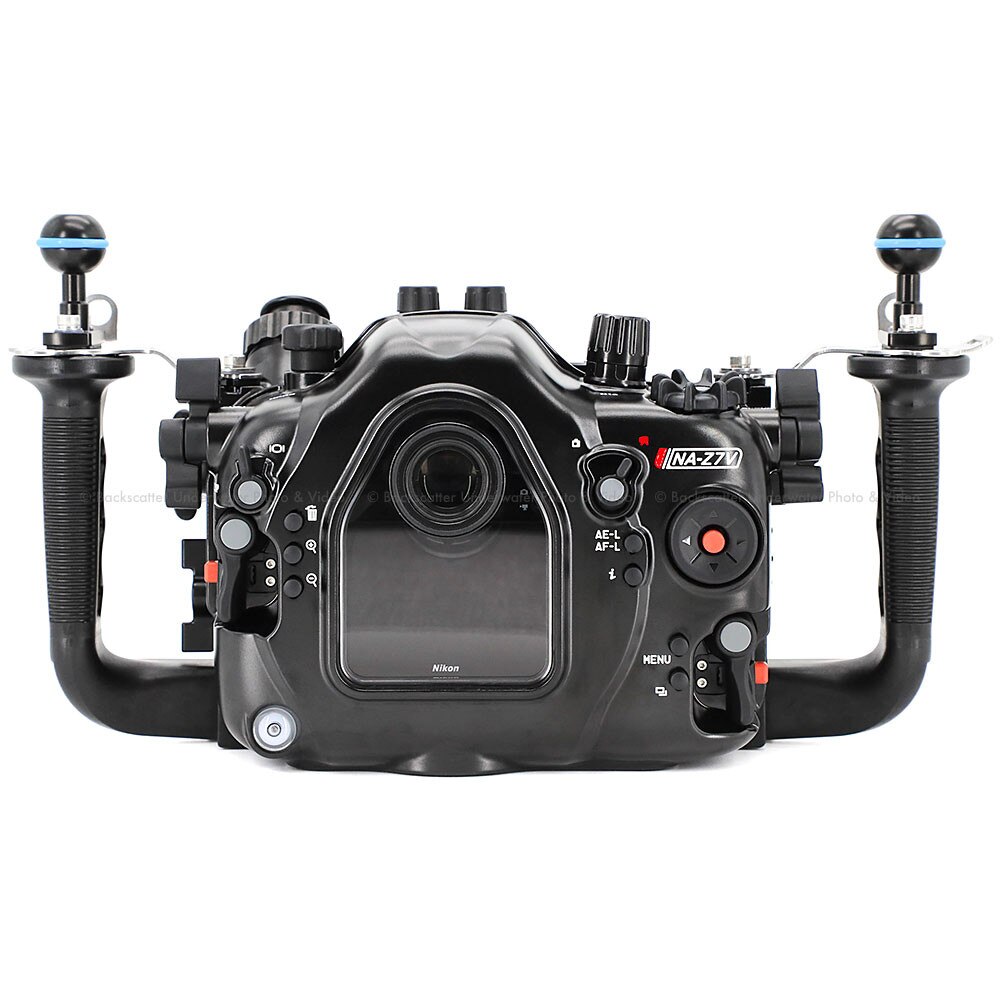

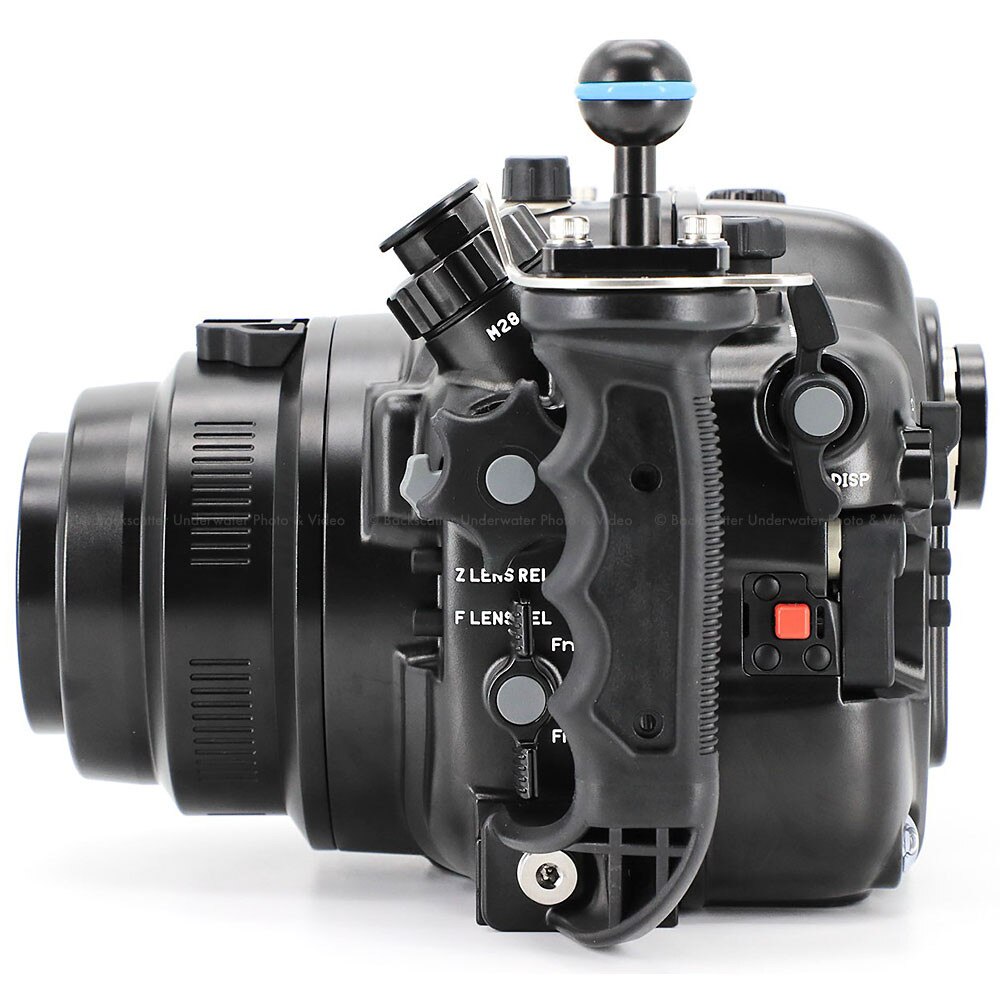

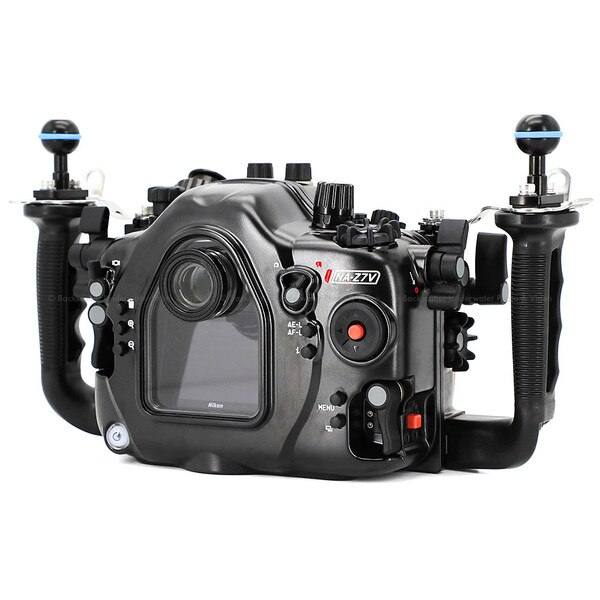

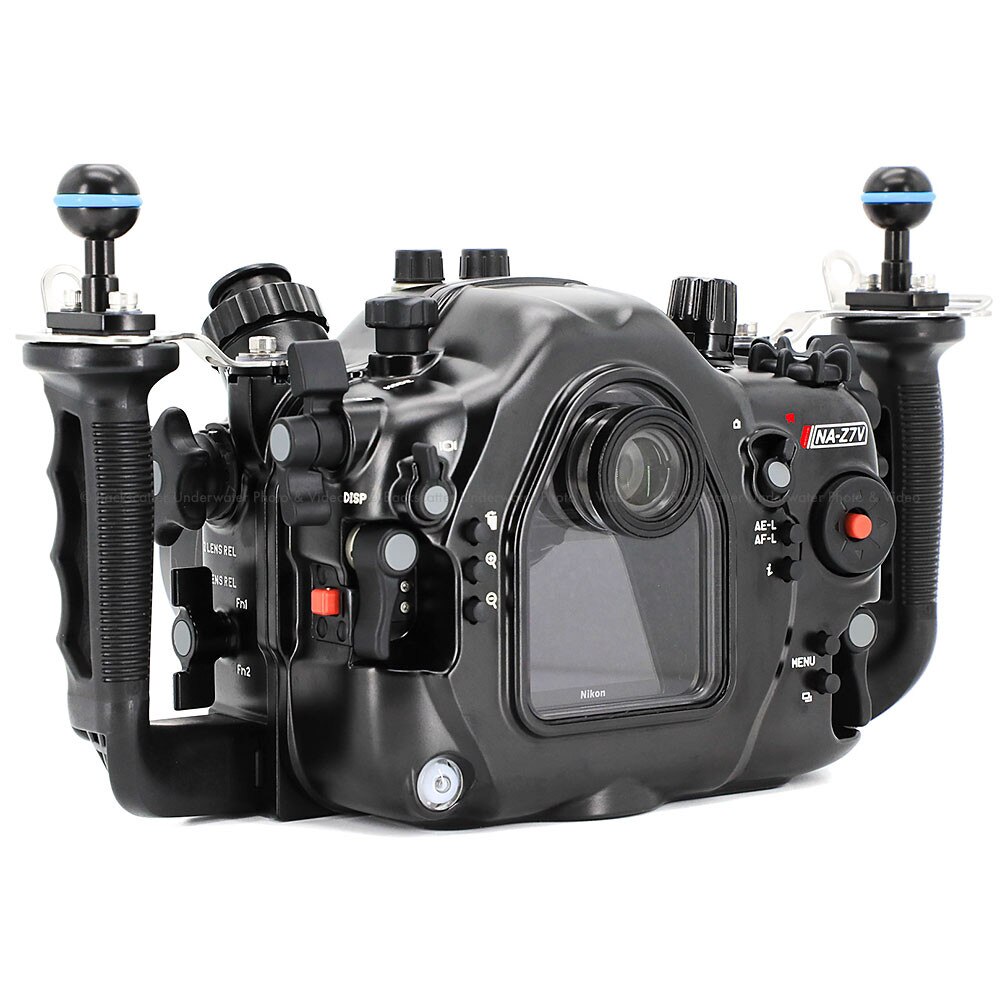

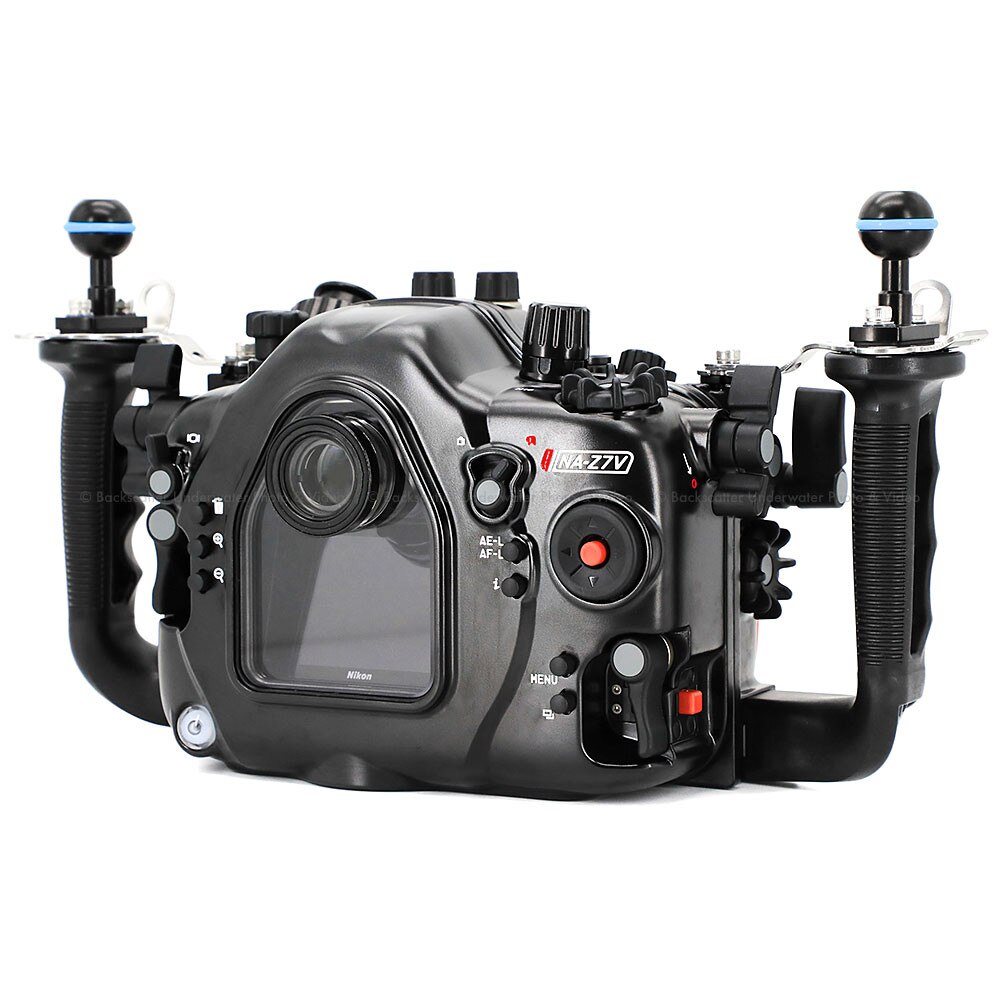

Nauticam engineers are obsessed with functionality and this is evident in the location of essential controls. Regardless of where the control is located on the camera, the Nauticam housing puts them where you need them to be underwater. For those switching between photo and video modes, an easily reachable switch is located on the right rear of the housing. The right side double thumb lever, easily reached from the right handle features access to the AF-on and Record buttons respectively. Between the double thumb lever and the multi-stage shutter release is an ISO lever allowing quick changes to sensitivity.

The left double thumb lever accesses the DISP and Playback controls. The Zoom In and Zoom Out controls, located on the right rear of the camera body is relocated to the left side of the housing to a location more familiar to Nauticam housing users.

The switch that allows for switching between the LCD display and the EVF, a crucial and much-used control with mirrorless systems is located close to the left handle within easy reach.

Front and rear control dials are readily accessible by the familiar large knurled dials at the right handle. The ergonomic housing handles are rubberized and feature stainless steel stiffening brackets to ensure a stable platform when using large strobes or video lights attached to the pre-installed 1" mounting balls.


FLASH TRIGGERING

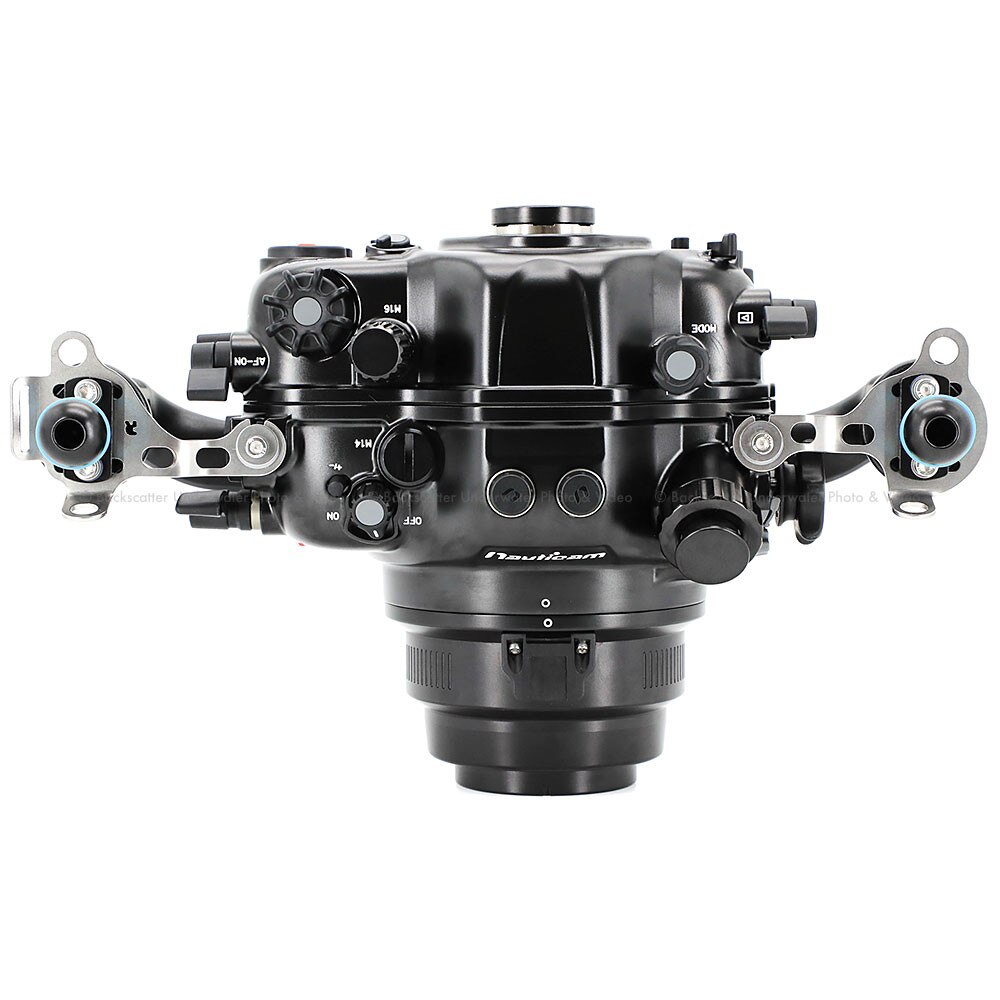

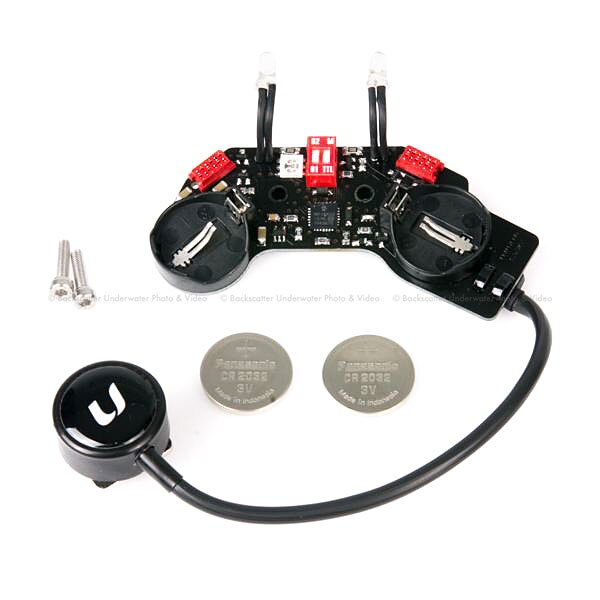

The NA-Z7 comes with Nauticam's self-powered manual flash trigger preinstalled. The flash trigger plugs into the hot-shoe of the camera and uses LED lights recessed into each of the two optical bulkheads to trigger supported underwater flashes when used with the correct fiber optic connection. The flash trigger is powered by coin cell batteries that provide thousands of flashes per battery. The flash trigger can be upgraded to support TTL triggering (PN 2638 TTL Converter for Nikon).


HDMI VIDEO OUTPUT

The Z7 camera supports 10 bit HDMI video output at UHD resolution (3840 x 2160) at up to 30p. An external monitor or recorder can be used with the optional standard M16 HDMI bulkhead (PN 25033), HDMI (D-C) cable in 190mm length (PN 25036) which come standard in any Nauticam monitor housing package.


FEATURES

PATENTED PORT LOCKING LEVER

Unveiled on the very first Nauticam DSLR housing in 2009, this locking lever has become a signature of the Nauticam brand. No twisting or threading action is required to mount a port, and it locks securely in place with this lever. Nauticam also offers locking port extensions, meaning a dome will never twist, even when used with a long extension ring.


FTZ ADAPTER SUPPORT

The NA-Z7 supports the FTZ adapter and belongs to the N120 Port System meaning Nikon F Mount lenses can be used with the same ports and extensions as on a Nauticam Nikon DSLR Housing. As Z mount lenses become available, supported lenses will be integrated into the port system.


MISSION CONTROL

Nauticam engineers have placed all essential controls within easy reach of the rubberized ergonomic handles. Regardless of location on the camera, housing access is located where you need it most to capture fast-changing underwater scenes.


STAINLESS STEEL HANDLE BRACKETS

Stiffening handle brackets are included with the housing. These brackets eliminate any flex or wobble when using big strobes, and provide multiple attachment points for lanyards or other accessories.


PREMIUM OPTICS

The NA-Z7 supports many of the corrective wide angle and magnifying macro optics in the Nauticam lens lineup. F mount lenses, paired with the FTZ adapter can be used with the same extensions and ports as on Nauticam N120 Nikon DSLR housings.


VACUUM CHECK AND LEAK DETECTION SYSTEM

The NA-Z7 features Nauticam's vacuum check and leak detection system electronics preinstalled. When paired with the M16 Vacuum Valve II (25625) the system gives a visual indicator of water tightness with the integrated multicolor LED.


WHAT'S IN THE BOX:

• Nauticam NA-Z7 Housing
• 90122 Housing O-ring, lubricant and removal tool
• CR2032 Battery (for vacuum system)
• Allen Wrench Set



RECOMMENDED ACCESSORIES:

• 25625 M16 Vacuum Valve II (Pushbutton Release)
• 32201 Nauticam 180 straight viewfinder
• 32203 Nauticam 45 viewfinder
• 26308 TTL Converter for Nikon
• 85201 0.36x Wide Angle Conversion Port with Aluminum Float Collar (incl. N120 to N100 port adaptor)
• 86201 Macro to Wide Angle Lens 1 (MWL-1) 150 deg. FOV with full frame 60mm macro lens
• Various electrical bulkheads
• 25033 standard HDMI bulkhead with M16 thread
• 25036 HDMI (D-C) cable in 190mm length
• (Both 25033 and 25036 are standard accessories in Nauticam monitor housing)



TECHNICAL SPECIFICATIONS

• Dimensions: 360mm x 200mm x 160mm (W x H x D)
• Depth Rating: 100m
• Weight: 3.02kg
• Port Opening: N120
