Nauticam NA-A9 Underwater Housing for Sony a9 Mirrorless Camera



Blazing Fast Professional Mirrorless

Aimed squarely at professional image makers, the Sony Alpha 9 provides 20 frames per second continuous shooting with full autofocus and UHD 4K Video. The A9 features a new 24-megapixel full frame Stacked CMOS sensor with excellent image quality, even at high ISO, and an ultra-fast readout that enables the blazing speed this camera is capable of.


Key Camera Specifications

• 24 Megapixel full-frame Stacked CMOS Image Sensor
• Up To 20 fps continuous Shooting with Full AF
• 241 Shot Continuous Shooting Buffer (Raw)
• 5-Axis In Body Image Stabilization
• 3.7M-dot OLED Viewfinder (1280 x 960 pixels), up to 120 fps update
• 1.44M-dot Rear LCD (touch screen)
• Oversampled UHD 4K/24p Video from Full Sensor Width, 1.24x crop at 30P

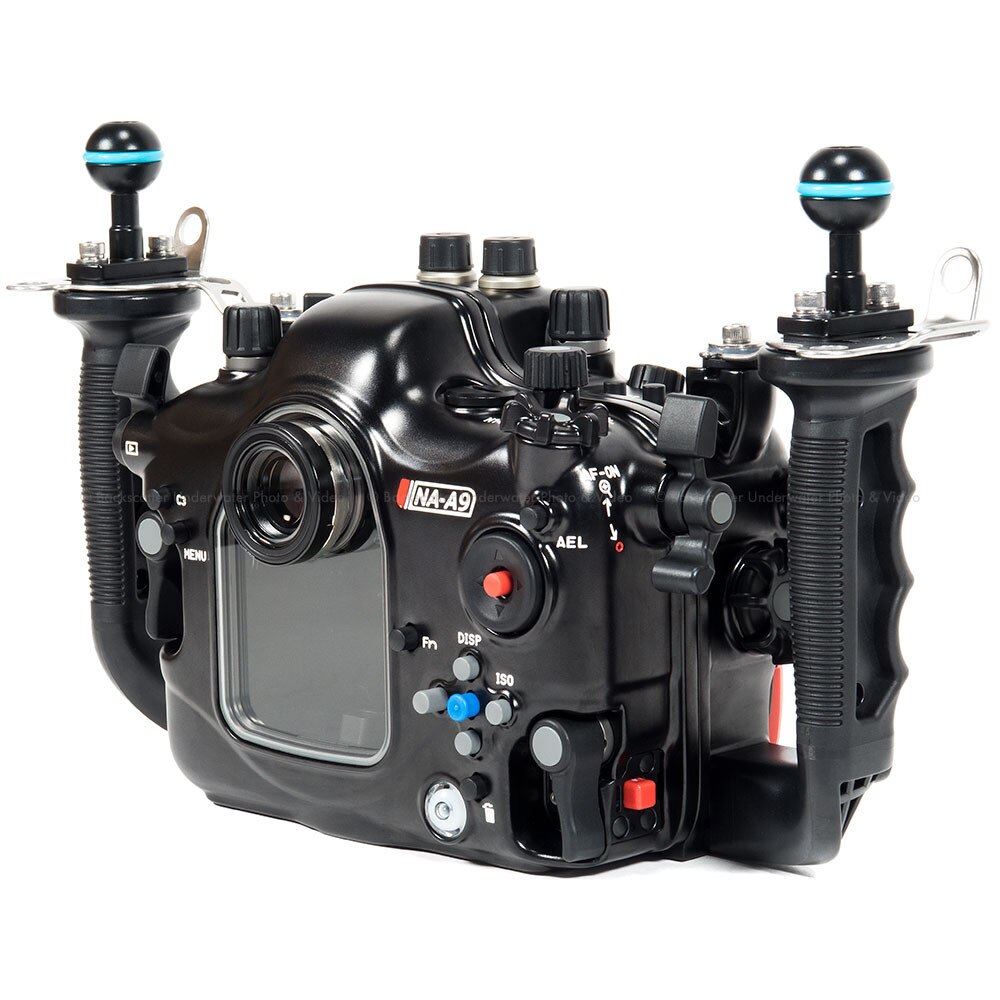

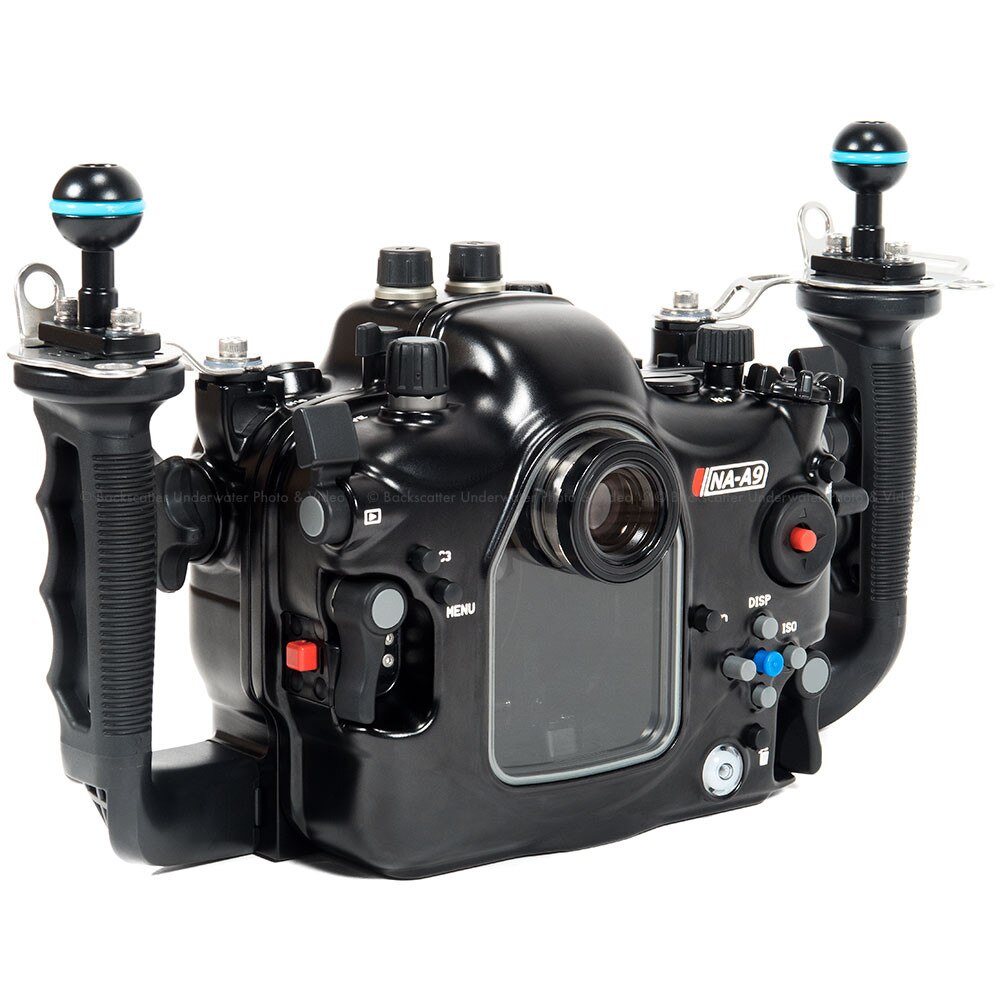

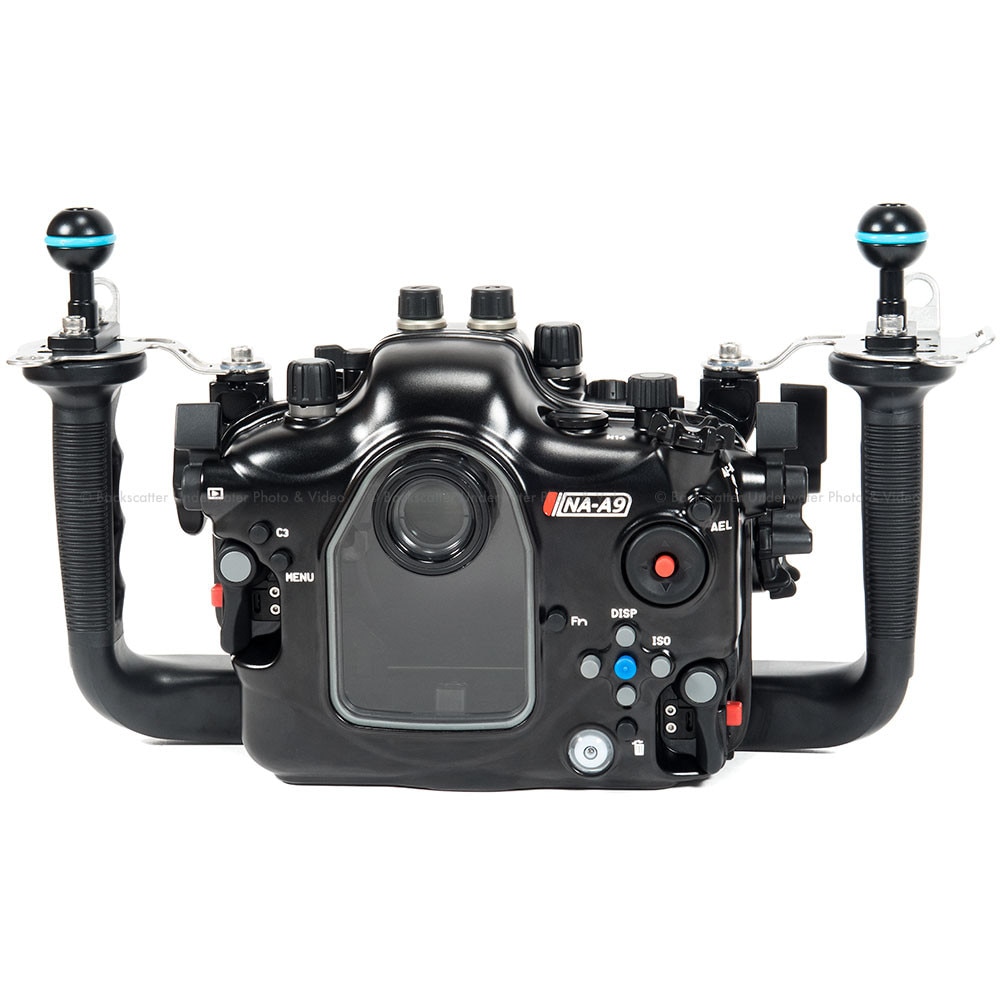

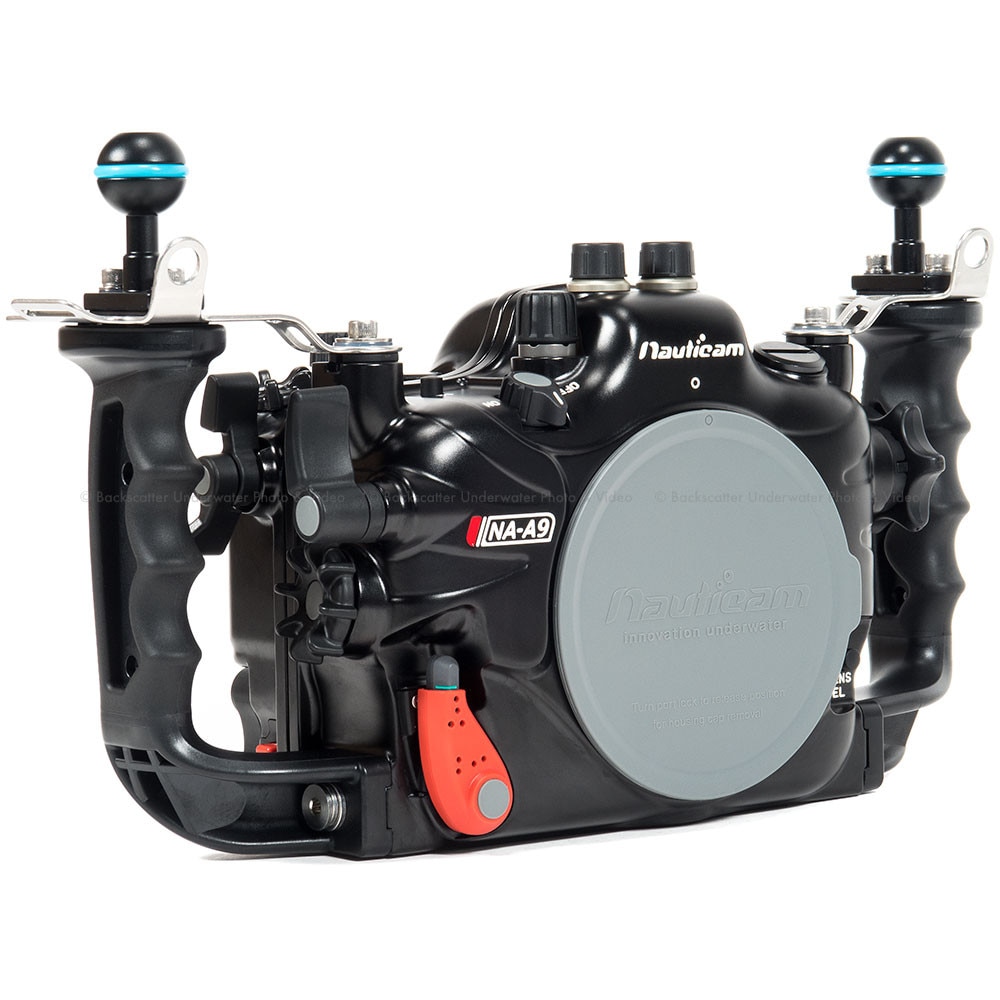

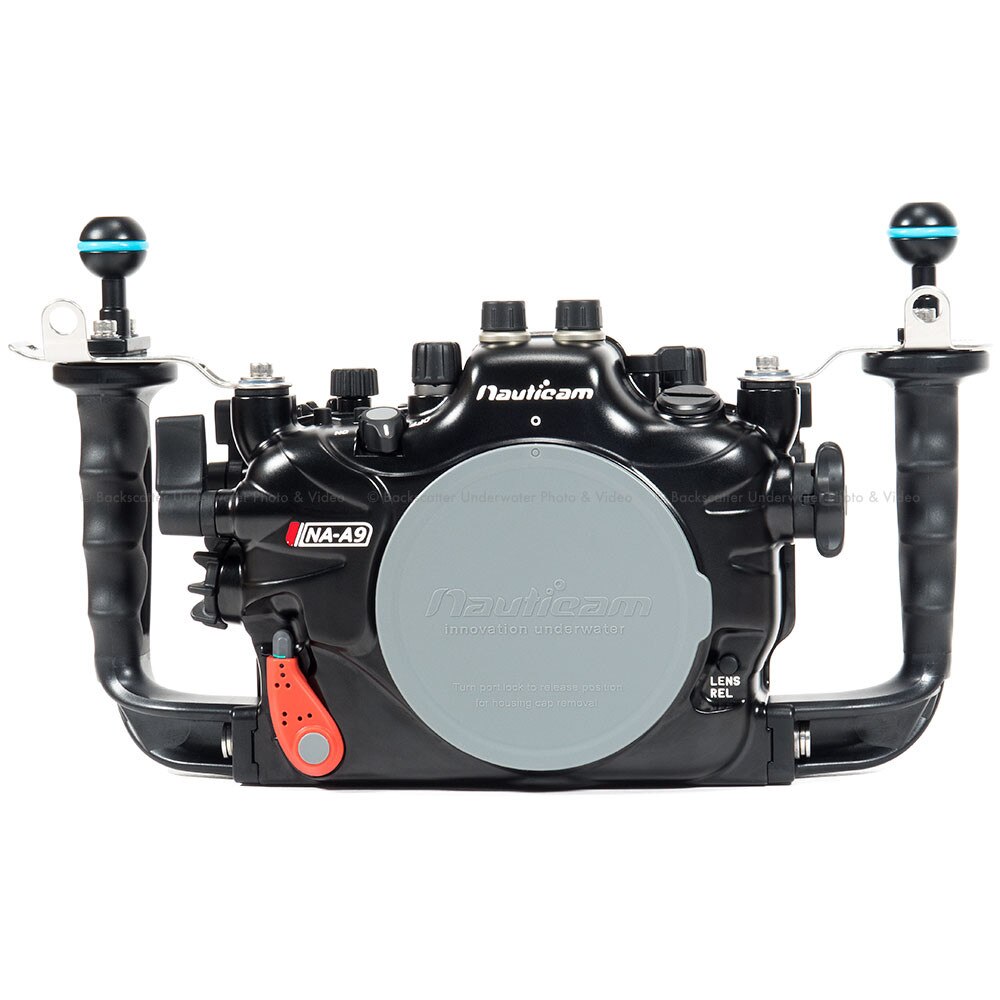

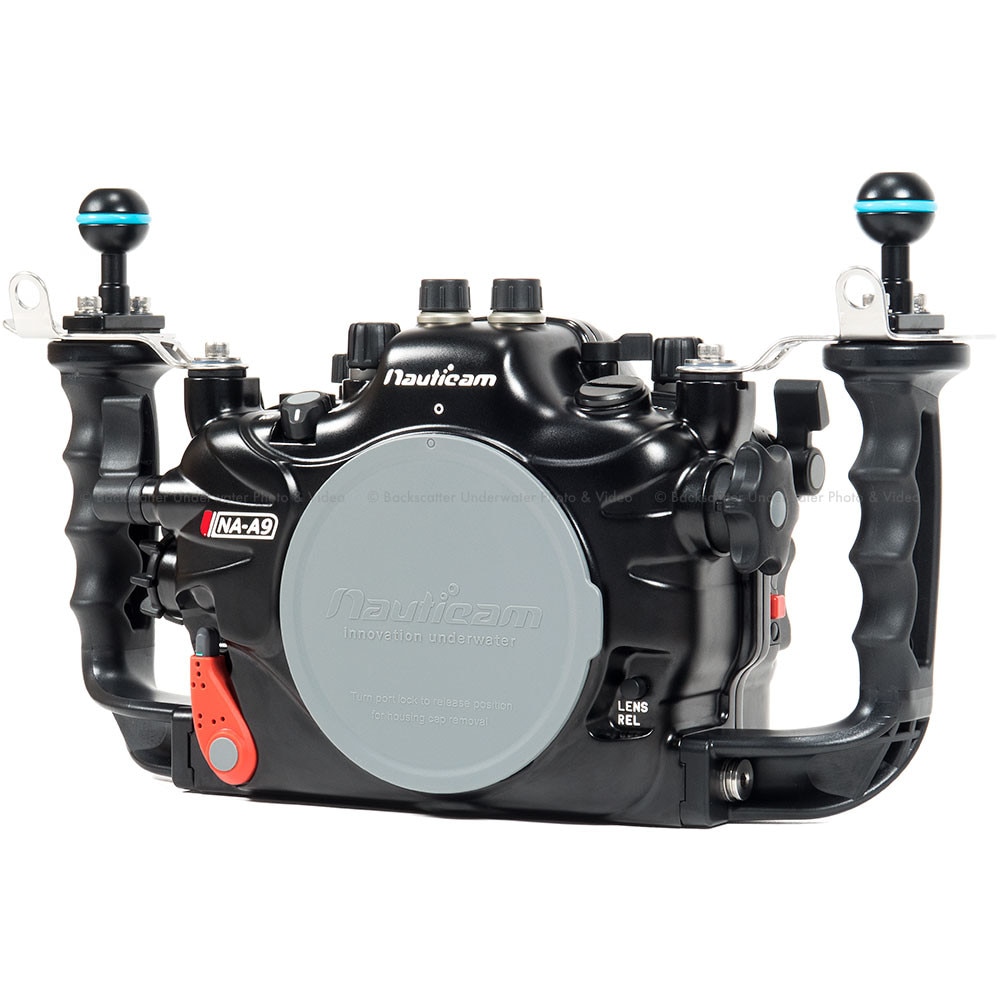

The Nauticam NA-A9 Housing

A professional housing befitting of a flagship camera, the NA-A9 underwater housing provides fingertip access to all key camera controls in a rugged and reliable aluminum underwater housing. Ergonomic camera control access is one of the defining strengths of a Nauticam housing, and the NA-A9 continues this tradition. Essential camera parameter changes are made from the handles, without awkward reaches.

The NA-A9 housing inherits the core design elements from the Nauticam pro DSLR range and bundles them in a more compact package. A patented port locking lever allows lens changes to be made in seconds. Opening the housing for a quick battery and media changes is fast and easy with the locking housing latches. The system is a seamless extension of the camera.


Optics

Sharing the same lens port accessories as the Nauticam NA-A7II housing, a list of thirteen Sony FE mount lenses are currently supported. An adaptor allows the entire N120 DSLR lens lineup to be used as well, supporting the popular Canon EF lenses attached to the A9 with an EF to Sony E mount lens adapter. Also available is an adapter to attach the water contact UW-Nikkor series lenses originally used on the Nikonos underwater range finder systems. From ultra wide fisheye lenses to long macros, the Nauticam A9 system has all focal lengths covered.


Modern Optics for In Water Use

Inspired by the water contact lens designs of decades before, Nauticam is continually developing new optical accessories that raise the bar of what is possible in underwater imaging. Designed with modern lens design software, and fully optimized for in water use, these lenses provide significantly better performance than an in air lens behind a dome or flat port alone.


Flash Triggering

An optional LED flash trigger (26302) provides rapid fire strobe triggering with optical slave strobes over fiber optic cables. A new universal fiber optic cable set (26216) provides reliable triggering with all popular optical slave strobes!

Flash systems that use electrical sync cables are connected to a Nikonos Bulkhead and Hotshoe (25056).


Build Quality

Nauticam's build quality is simply unmatched, using cutting edge product design and modern, innovative manufacturing techniques that result in trouble free reliability. A bit like a fine Swiss time piece, the complexity under the hood results in a trouble free user experience that just works and keeps working for years to come.


Key Features

Integrated Vacuum Monitoring and Leak Detection

Circuitry included as standard equipment provides constant monitoring of water tight integrity when combined with an optional Nauticam M14 Vacuum Valve II (25624). Green means safe to dive!


Vacuum System Reset Button

A blue button integrated into the camera mounting tray, accessible from the port mount, allows vacuum monitoring electronics to be reset when changing lenses from the front of the housing.


Port Locking Lever

The iconic Nauticam port locking lever allows effortless port changes. No twisting required, just press and lock.

This is a patented Nauticam feature, found on no other housing, providing unmatched ease of use!


Locking Housing Latches

Securely and safely locked when closed, but effortless to open when needed, Nauticam Locking Housing Latches eliminate the finger pinching stainless steel buckles used in other housings.

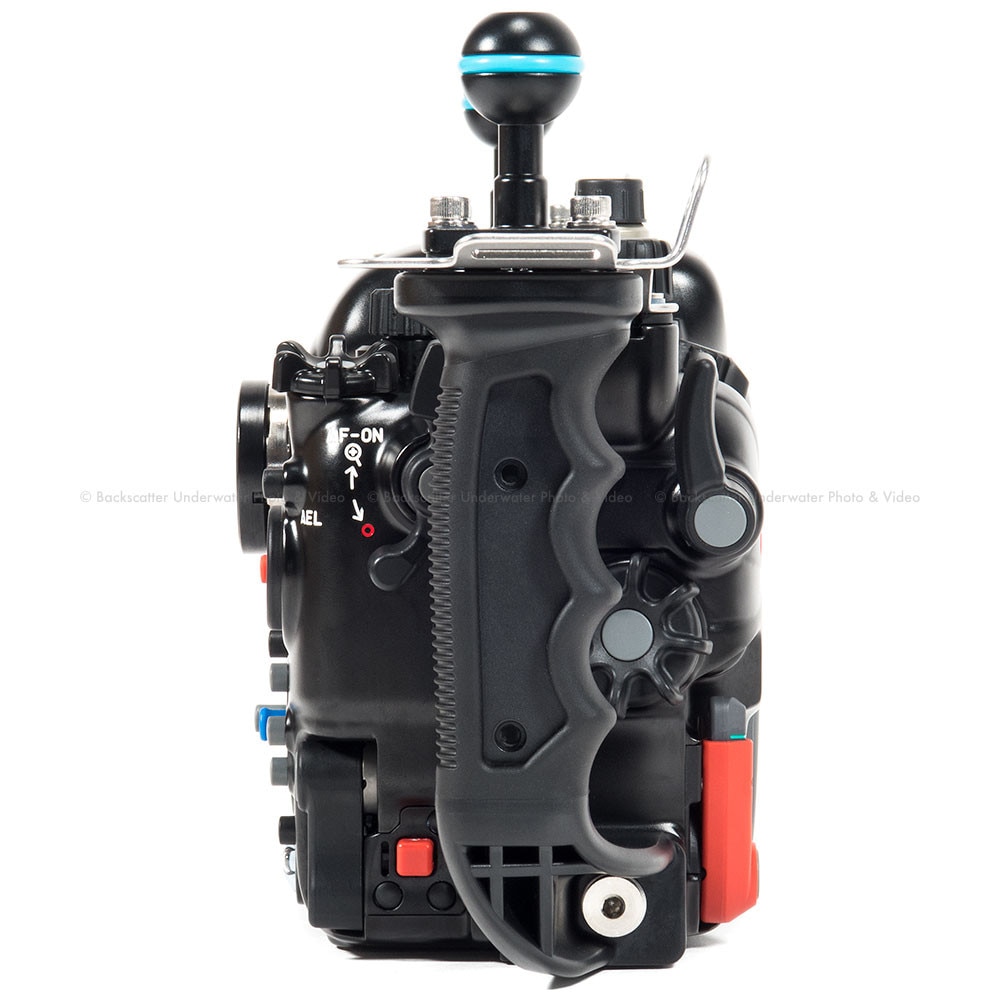

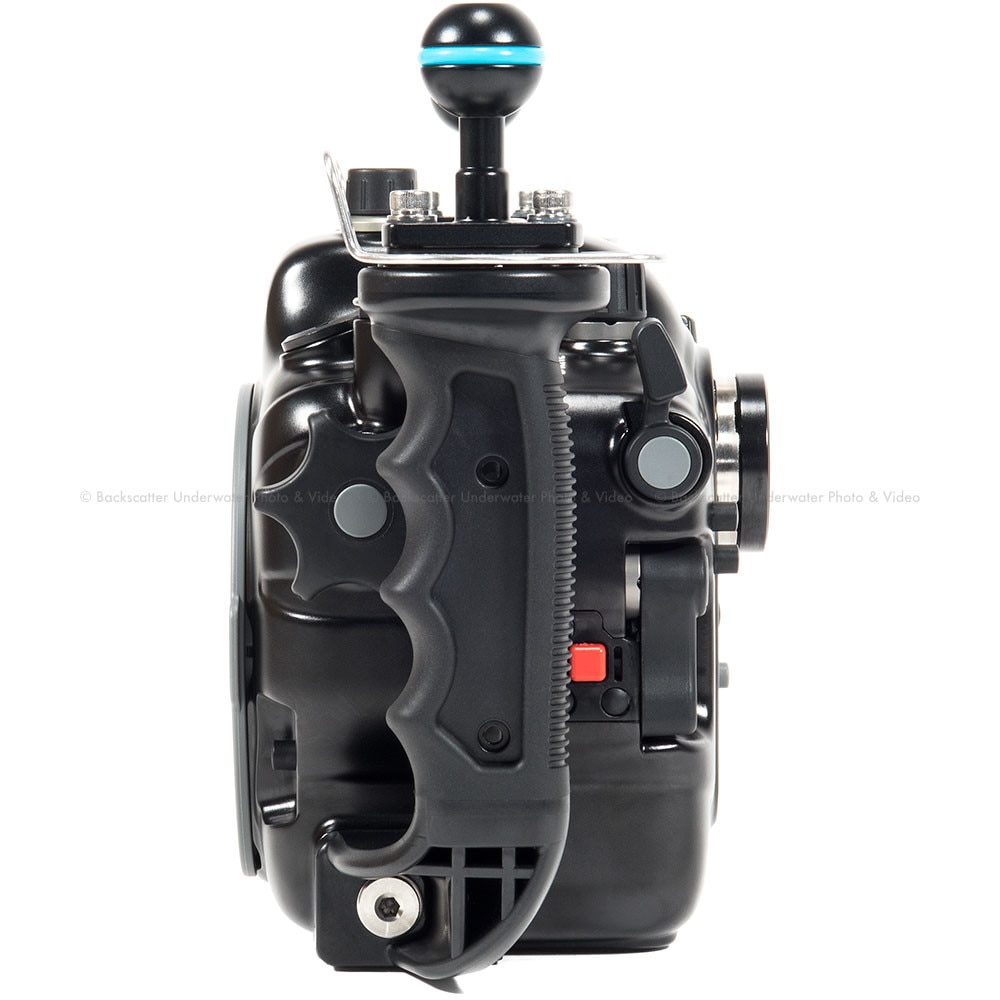

Ergonomic Rubberized Handles with Stainless Steel Support Brackets

Rubberized handles and oversized controls are easy to operate even when wearing thick cold water gloves.

Handle support brackets are included with the housing, providing a solid "wobble free" attachment base to shoot from, even with heavy lighting systems. Multiple lanyard attachment points are included in the brackets.


Extensive Accessory Lineup

The range of Nauticam accessories is unmatched, from viewfinders to electronic bulkheads, multiple accessories are available to customize the system to individual needs. A variety of lens ports support all popular lenses. Accessory lenses, like the revolutionary Super Macro Converters, SMC-1 and SMC-2 enhance the system with super macro capabilities.

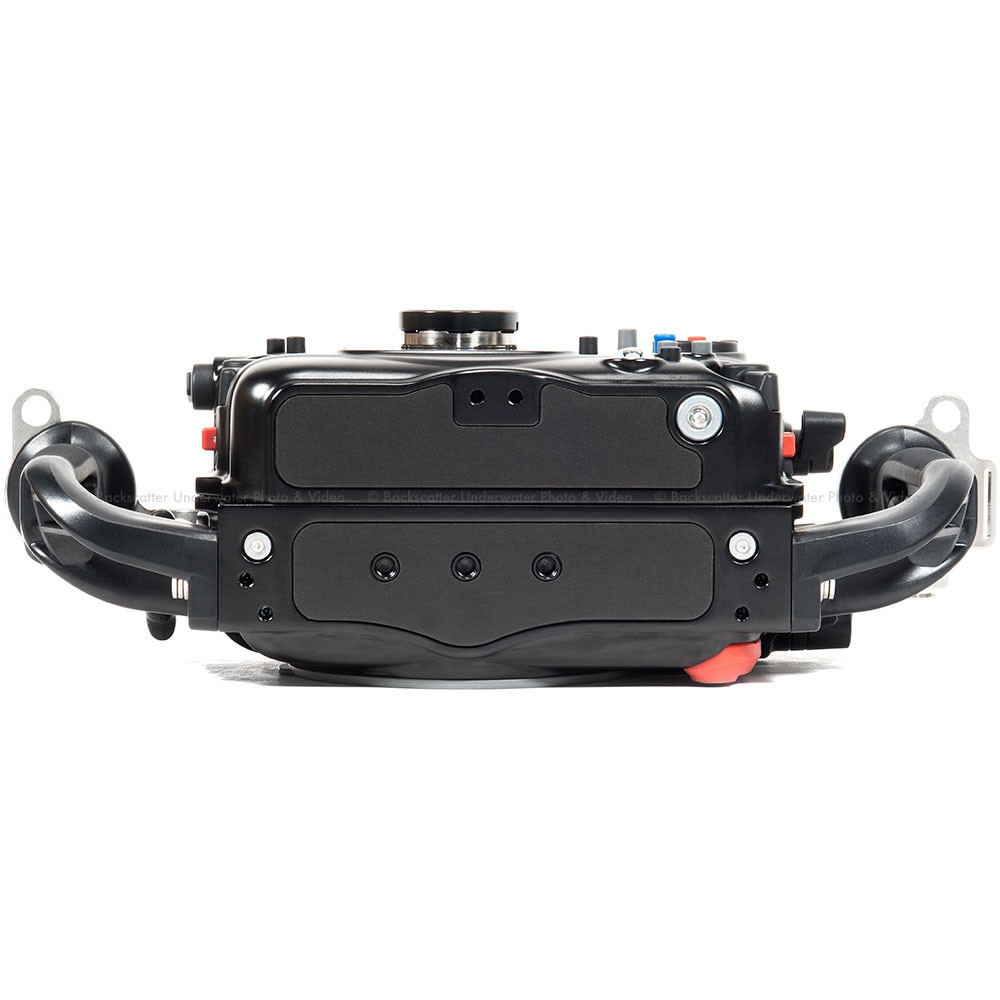

Tripod Mounting Balls

Mounting points for three industry standard 1" mounting balls are machined directly into the bottom of to the housing, eliminating the need for accessory brackets to attach tripod legs.


Viewfinder Options

The NA-A9 standard optical glass viewfinder is very good and travel-friendly, but many photographers prefer the ease of a magnified viewfinder with dioptric adjustment. An accessory enlarging viewfinder allows the large 3.7M-dot OLED viewfinder (1280 x 960 pixels) with up to 120 fps refresh to be seen in its full glory!

Nauticam produces a "straight" 180º enhanced viewfinder and a 45º angled enhanced viewfinder to enhance the ease of close quarters work often associated with macro shooting. Both viewfinders have high-quality optics and allow bright viewing of the entire image. A patented external dioptric adjustment allows personal adjustment to a sharp-as-a-tack standard underwater and viewfinder changes can be executed in just a few seconds without using tools. As an added bonus, the viewfinders have extra clearance that provides more room for regulator second stages.

45º (32203) and 180º (32201) Magnifying Viewfinders provide a large, clear, corner-corner view of the Sony A9 3.7 M-dot OLED Electronic Viewfinder.


Integrated Vacuum Check and Leak Detection System

The Nauticam vacuum check and leak detection system is shipped with NA-A9 as standard equipment. Combined with an accessory vacuum valve (PN 25624), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.

The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.


Details and Specifications

• Depth Rating: 100m
• Weight: 2.52 kg
• Dimensions: 348mm x 200mm x 118mm W x H x D
• Battery for Vacuum system: CR2032
