Inon UWL-S100 ZM80 M52 Underwater Wide Conversion Lens

Dual use (land / underwater) wide conversion lens specially designed for particular wide cameras having master lens wider than 28mm (35mm film equivalent) or having super zoom with longer extension. You can get ultra wide underwater imaging with approx. 80mm focal length (35mm film equivalent) setting on the camera not as like standard wide conversion lens.

SKU: # IN-uwl-s100zm80

FREE Standard Shipping to USA / CANADA!

Price $280.00

Base Price $

Price as Configured $

Price $280.00
Price $280.00

Custom Options


Overview / Product Description

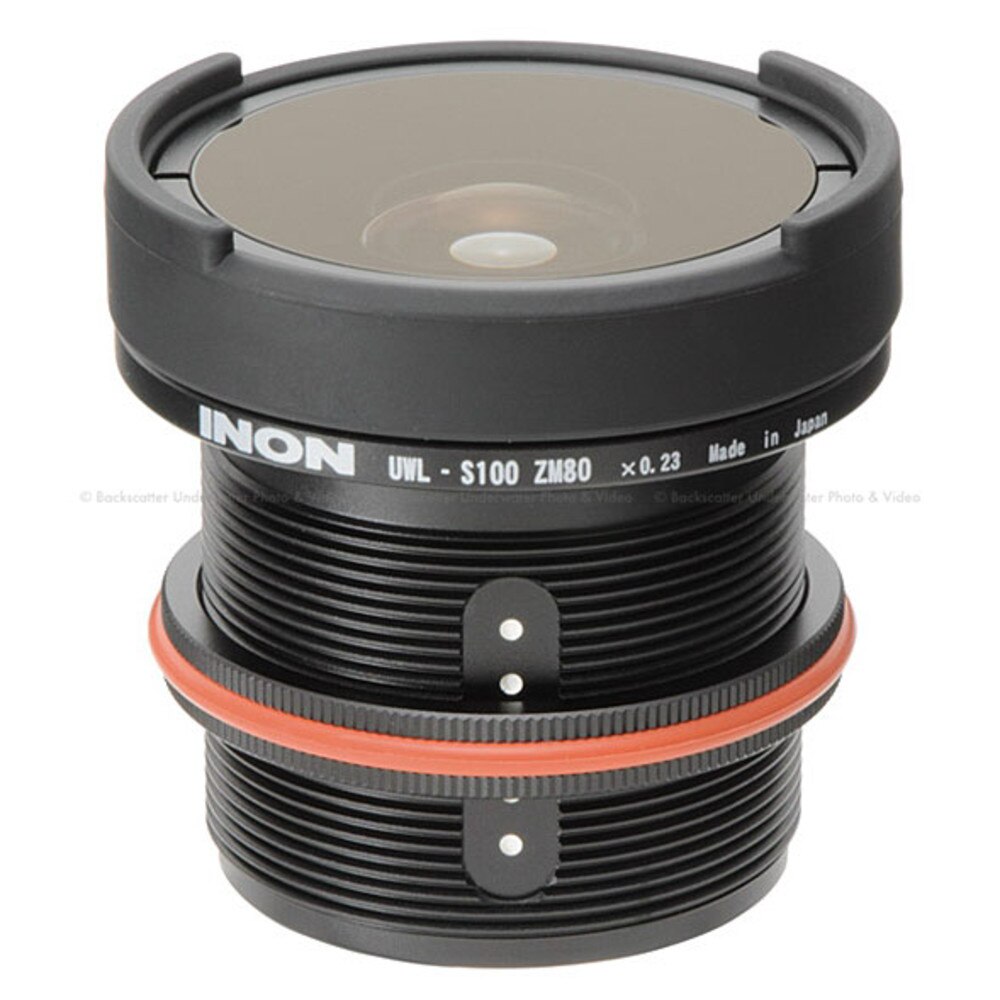

Inon UWL-S100 ZM80 M52 Underwater Wide Conversion Lens




Dual use (land / underwater) wide conversion lens specially designed for particular wide cameras having master lens wider than 28mm (35mm film equivalent) or having super zoom with longer extension. You can get ultra wide underwater imaging with approx. 80mm focal length (35mm film equivalent) setting on the camera not as like standard wide conversion lens.



The maximum view angle is 100_underwater for wide imaging and 179.8_on land for fish-eye imaging.



Unique optical design allows to shorten minimum focal distance with ultra wide view angle thus effective for wide macro shot.



The lens construction is 4 elements in 4 groups by optical glasses. Subject side lens surface is water-shedding magenta coating and inner lenses have multi coating to suppress reflection by lenses themselves to suppress chromatic aberration.



Optional "Dome Lens Unit II for UWL-S100 ZM80" further increases maximum view angle to 149.8_underwater for semi-fisheye imaging.

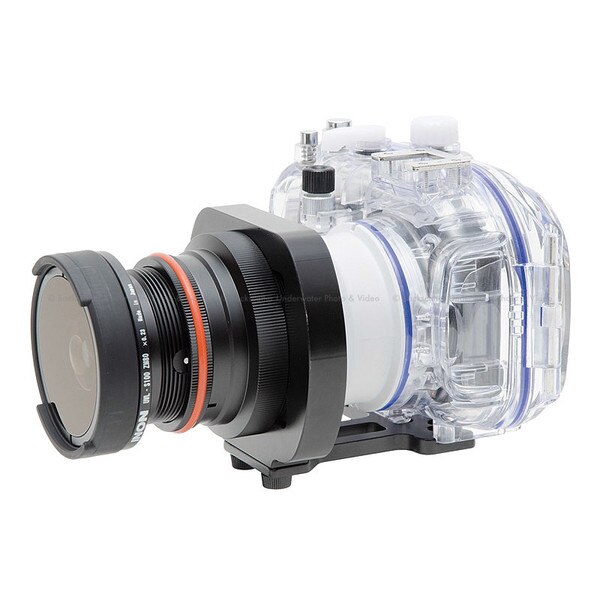

The UWL-S100 ZM80 is attached on compatible camera housing via combination of "Lens Adapter Base" which is exclusively designed for each housing and appropriate "Mount Converter".



The lens barrel has threaded wall to adjust lens position back and forth to accommodate with different master lenses among many compact digital cameras.
  • (*1) Optional "M52-M67 Mount Converter for UWL-S100 ZM80" is necessary.
  • (*2) Optional "M52-LD Mount Converter for UWL-S100 ZM80" is necessary.
