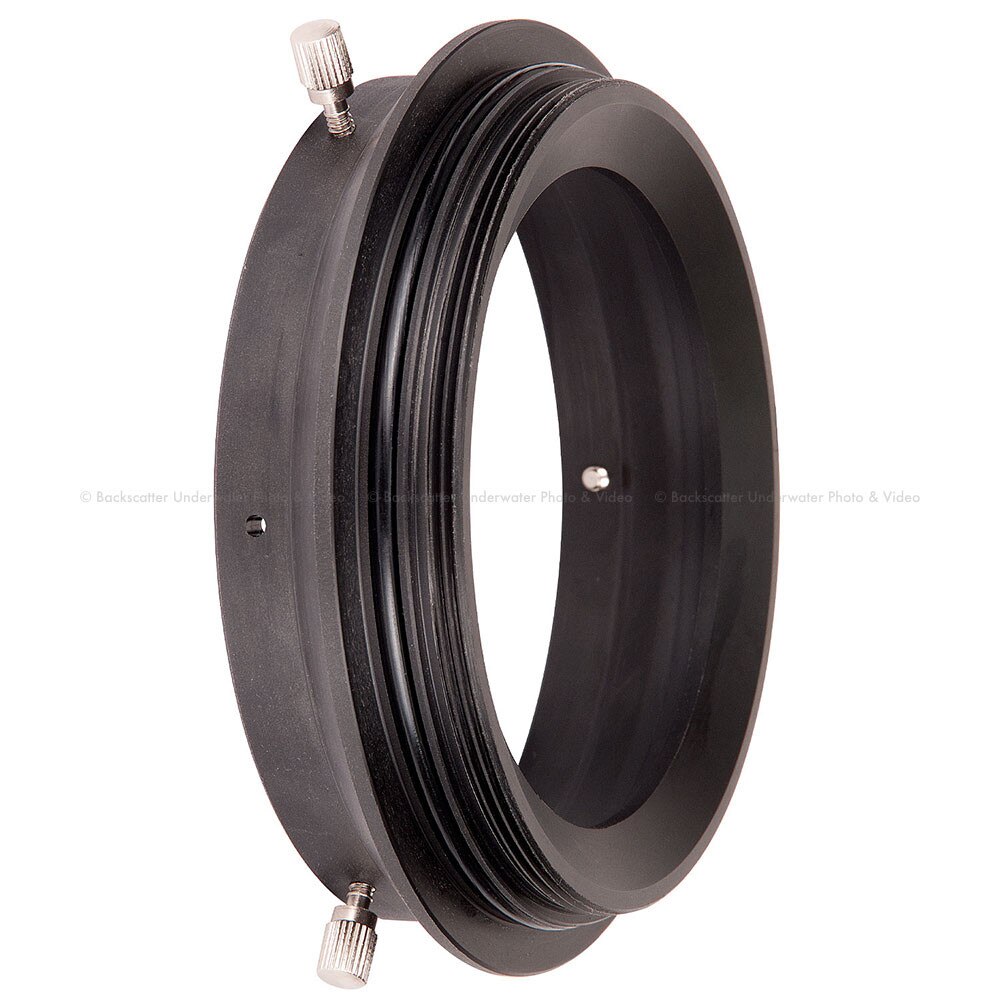

Ikelite Mirrorless Port Adapter for Modular 8-inch Dome

Ikelite Mirrorless Port Adapter for Modular 8-inch Dome

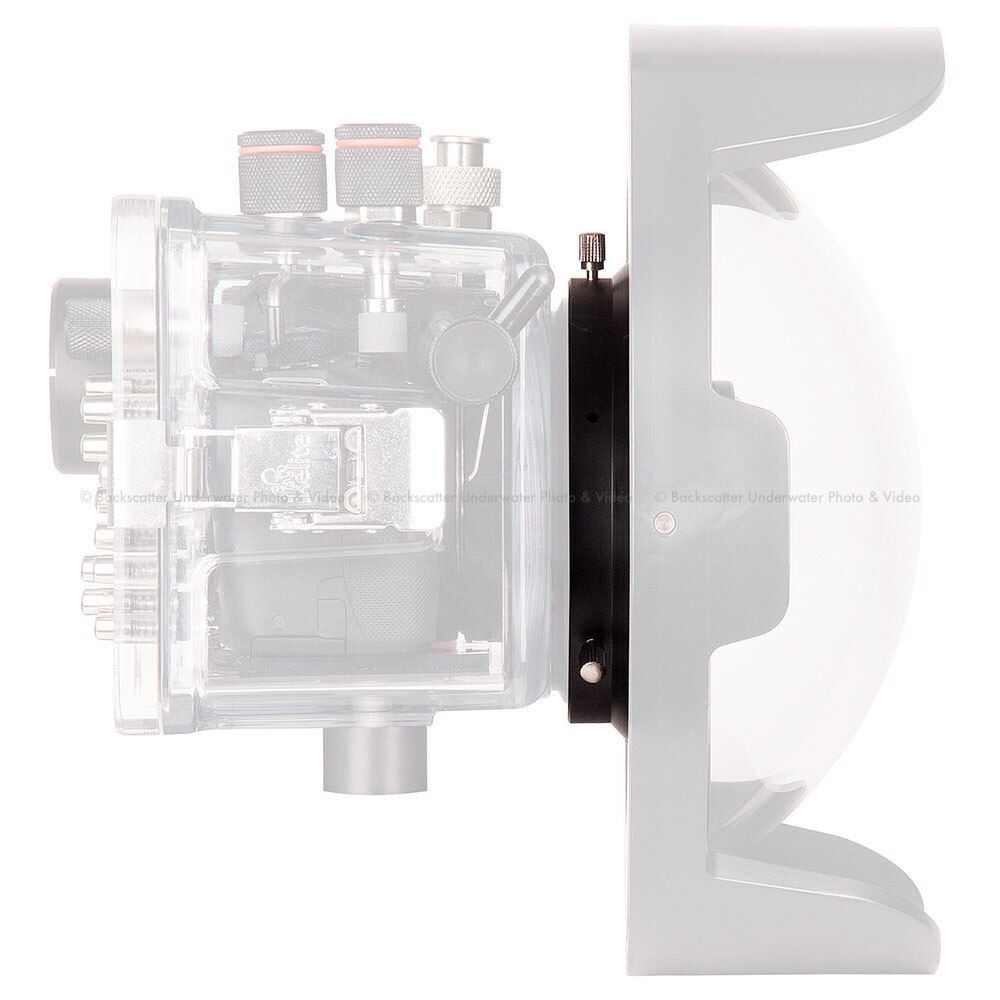

Allows for the attachment of a Modular 8-inch Dome to any Ikelite Housing for a Compact DSLR or Mirrorless camera. The 8-inch dome is specially designed for underwater photography and injection molded out of optical grade acrylic. The diameter of the dome provides sharper photos corner-to-corner, while the large surface area of the dome makes shooting over-unders (half-in, half-out of the water) easier.

The dome needs be very close to the front of the housing to provide the best images possible with super wide angle lenses. The proximity of the port to the housing precludes the use of zoom function when using this adapter. Lenses must be used at a fixed focal length.

Modular 8-inch Dome sold separately.

Mirrorless Port System
An interchangeable lens camera demands a housing with interchangeable lens ports. It couldn't be more simple to change ports than this systemjust press the port on and tighten three thumb screws. Feel positive reinforcement that the port is secure without any complex moving parts that can jam or break in a remote location.

Compatible Mirrorless Lenses

• Olympus M.Zuiko 9-18 mm
• Olympus M.Zuiko 12-40 mm
• Olympus M.Zuiko 12-50 mm
• Panasonic 8 mm Fisheye*
• Panasonic 7-14 mm
• Sony 10-18 mm
• Sony 16 mm
• Sony 16 mm with Fisheye Converter*
• Sony 16-50 mm
• Sony 18-35 mm
• * Minimal vignetting (shadows in the corners of the image) will be present due to the ultra-wide angle of coverage.

Compatible Compact DSLR Lenses

• Tokina 10-17 mm Fisheye
• Canon 8-15 mm*
• Canon 10-18 mm
• Sigma 15 mm f/2.8 EX
• Rokinon 8 mm
• * This lens has what's called a "Limit Switch" that keeps the lens from being used wider than 10mm. That is because the lens naturally vignettes below 10mm when used on a APS-C sensor, like that of the Canon EOS 100D Rebel SL1. This lens can be used at 8mm, but will vignette. This vignetting is caused by the sensor and not the dome/shade.

What's Included

• Port adapter
• Spare securing screws
• Silicone lubricant 1cc tube

Specifications

• Acetyl body

Spare Parts

• 0184.2 - Silicone lubricant 2cc resealable tube
• 0132.36 - Spare o-ring
