Gates Z100 Underwater Housing for Sony PXW-Z100 CameraIn the workhorse tradition of the EX1 and PMW-200 housings, the Gates Z100 Housing raises the bar to 4K resolution. Like its predecessors, the Z100 embraces features for discerning professionals: adjustable weight system for perfect balance and trim: SWP44C Super Wide Port resolving to 4K full zoom through performance; HD- SDI surface feed for topside DP monitoring; and of course durable bulletproof machined aluminum, 100% reliable mechanical controls and 2 year renewable warranty.Gates, Z100, Underwater, Housing, for, Sony, PXW-Z100, Camera

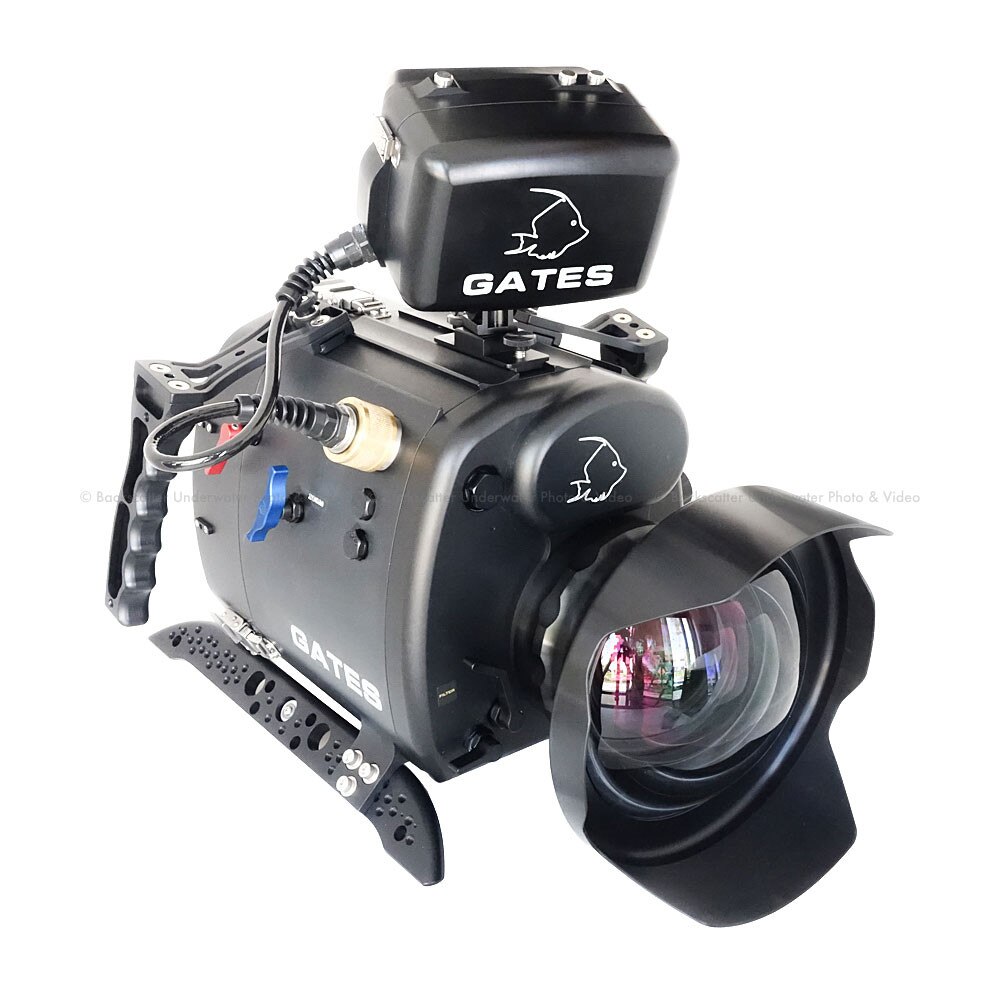

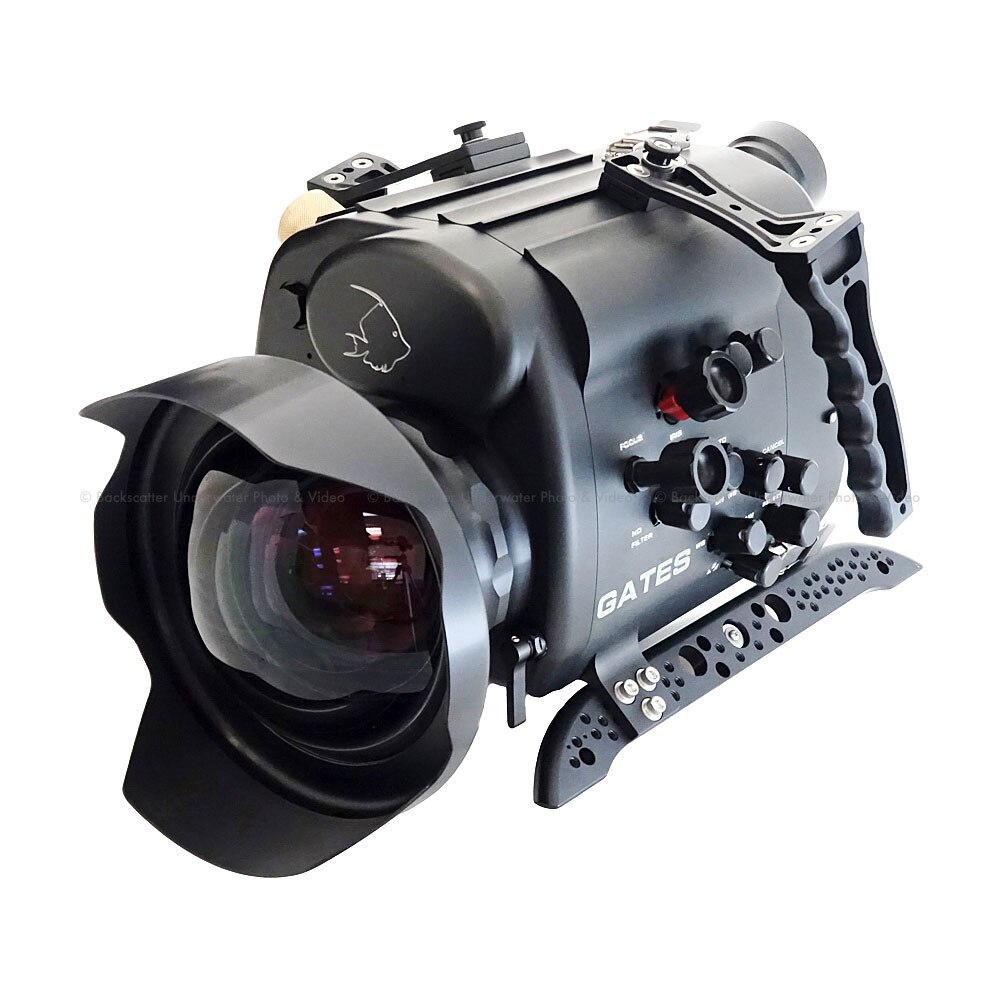

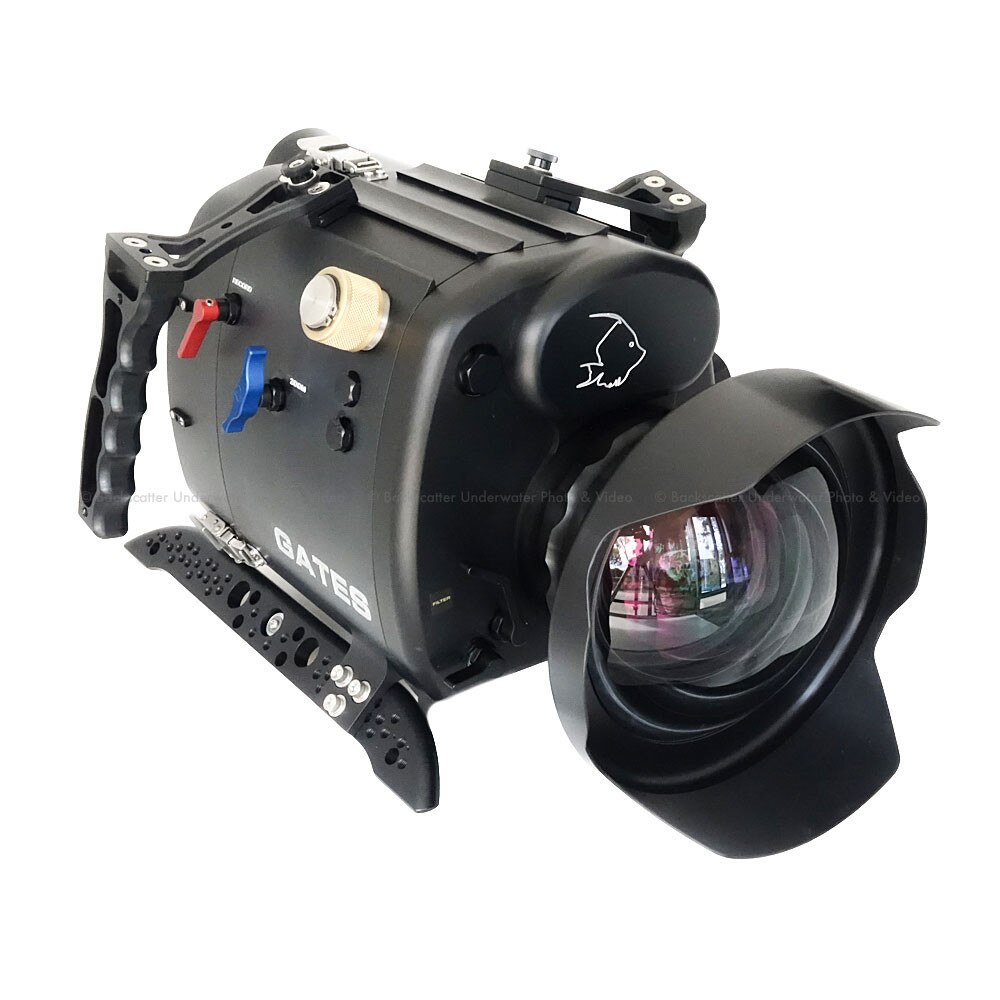

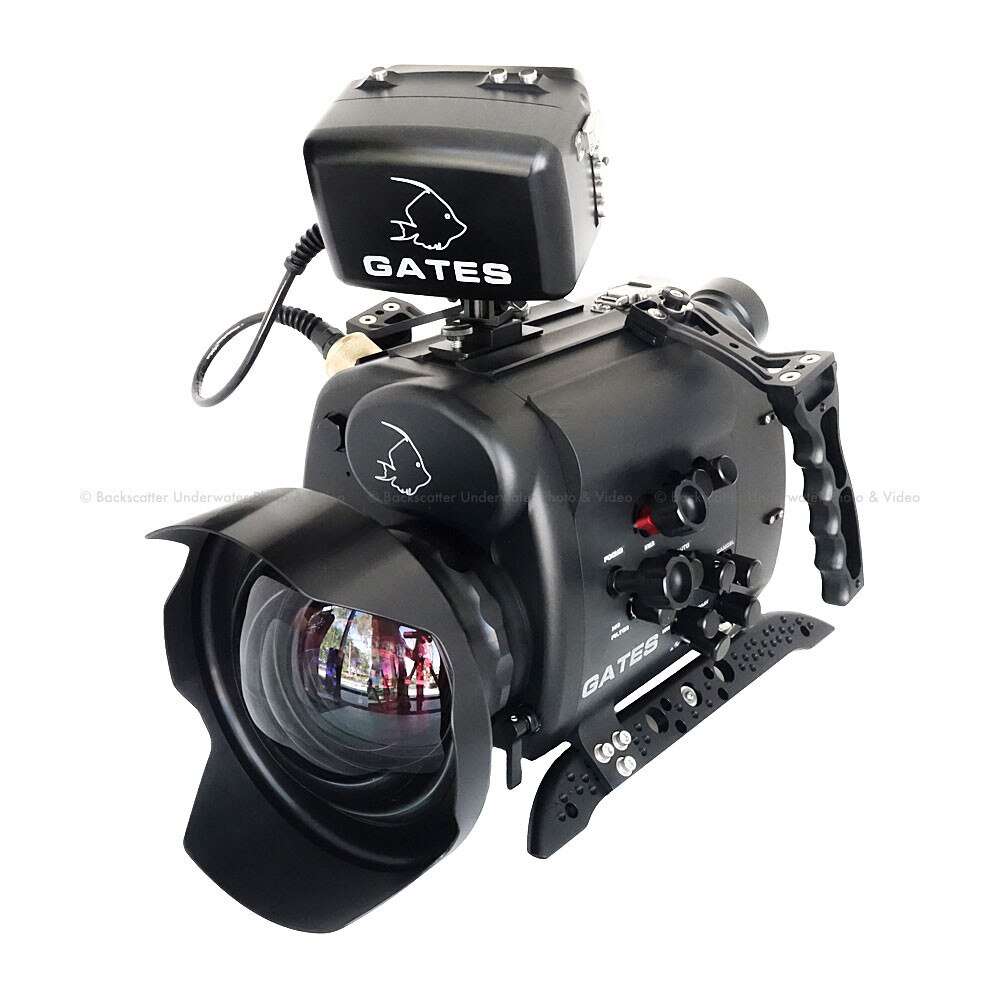

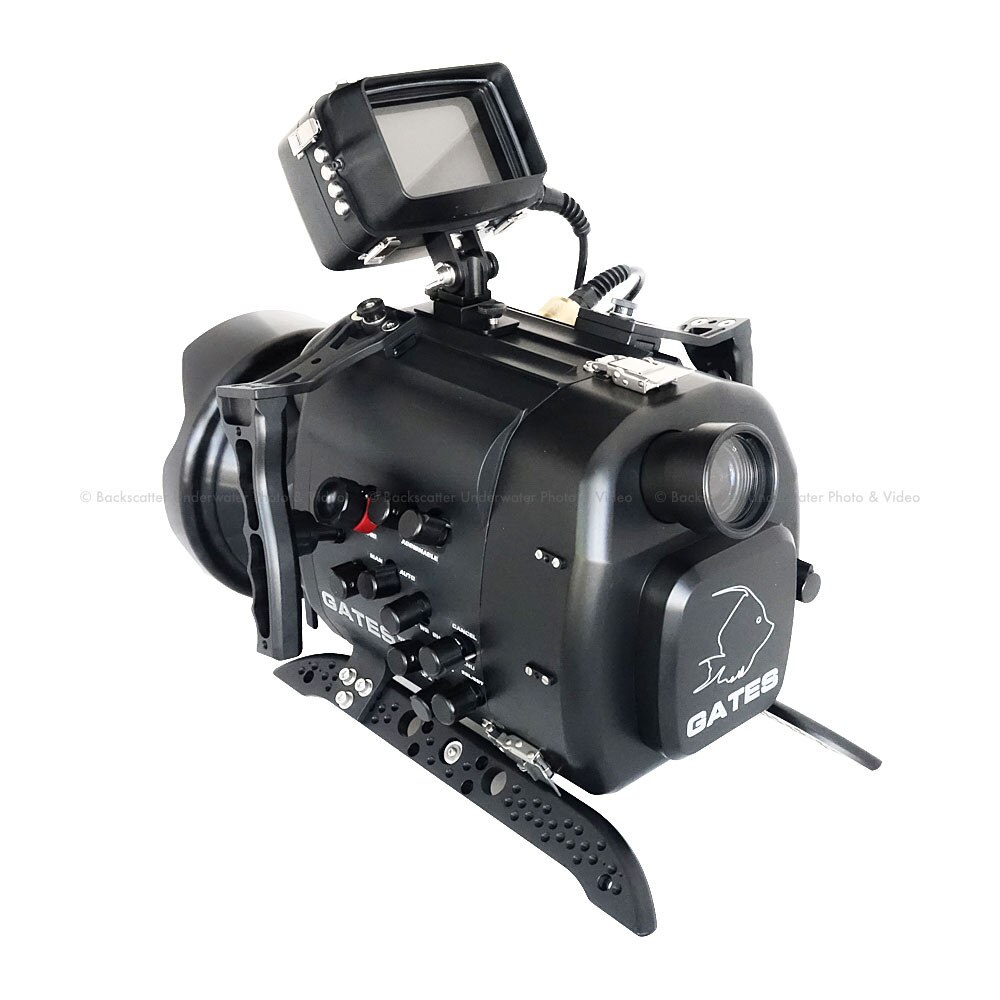

Gates Z100 Underwater Housing for Sony PXW-Z100 Camera

In the workhorse tradition of the EX1 and PMW-200 housings, the Gates Z100 Housing raises the bar to 4K resolution. Like its predecessors, the Z100 embraces features for discerning professionals: adjustable weight system for perfect balance and trim: SWP44C Super Wide Port resolving to 4K full zoom through performance; HD- SDI surface feed for topside DP monitoring; and of course durable bulletproof machined aluminum, 100% reliable mechanical controls and 2 year renewable warranty.

SKU: # gt-75-10-404

FREE Standard Shipping to USA / CANADA!

Price $7,250.00

Base Price $

Price as Configured $

Price $7,250.00

This product has been discontinued. Please scroll down for accessories and other options.

Price $7,250.00

This product has been discontinued. Please scroll down for accessories and other options.

Custom Options


Overview / Product Description


Gates Z100 Underwater Housing for Sony PXW-Z100 Camera




4K Professional Underwater Imaging

In the workhorse tradition of the EX1 and PMW-200 housings, the Gates Z100 Housing raises the bar to 4K resolution. Like its predecessors, the Z100 embraces features for discerning professionals: adjustable weight system for perfect balance and trim: SWP44C Super Wide Port resolving to 4K full zoom through performance; HD- SDI surface feed for topside DP monitoring; and of course durable bulletproof machined aluminum, 100% reliable mechanical controls and 2 year renewable warranty.



Reaching the far corners of the world, Gates housings are tasked with demanding projects extending from marine research and military to television and cinema productions. Experts know that failure is not an option, so they never take a chance.... they take a Gates!



Key Features:

  • Durable, "Bulletproof" machined aluminum, black type III 'hard' anodize finish, and sealed with a nickel- acetate process.
  • EM50 Color Monitor: A 5 diagonal top mounted monitor for framing and focus. (Optional)
  • Pro Controls such as manual focus, iris and white balance are standard.
  • Changeable Buoyancy and Trim: Add / remove trim weights for ideal balance -- just the way you like it.
  • Reliable Fingertip Controls are 100% Mechanical -- no sticky buttons, faulty electronics or dead batteries!
  • Quality Optics means clarity, sharpness and no vignetting (cutoff dark corners) to spoil your images.
  • 2-Year Warranty. Only Gates offers a 2-year renewable warranty on all housings.
  • Seal Check (optional) assures housing integrity before entering the water.
Specifications:

  • Controls (All Mechanical)
    • Power On/Off
    • Menu
    • Neutral Density Filter
    • A/M Focus
    • Gain
    • Assign Buttons
    • Internal Flip Diopter (+1, +2, or +4) * A/M Iris
    • Internal Flip Color Correction Filter
    • Record/Standby * Manual Iris
    • Zoom
    • Manual Focus *WBSet
    • Select / Set Roller
  • Dimensions:
    • 16.7" L x 11.8" H x 10.5" W (16 w/handles)
    • 43 cm L x 30 cm H x 27 cm W (40 cm w/handles)
  • Construction: Machined aluminum. Type III hard anodize finish. Stainless steel hardware.
  • Weight
    • Dry: 24 lbs / 11 kg (without camera)
    • In water: Slightly negative and adjustable
  • Depth Rating: 450 feet / 137 meters
  • Batteries: Accepts Sony batteries up to 2NP-F970/B
  • Warranty: 2 Years Renewable
Port Options:

  • Standard Port SP44: Optical acrylic dome is field replaceable. A/R coated glass dome optional. (Glass dome depth rated to 150 feet / 46m.)
  • Flat Port FP44: A simple flat element good for macro work with diopters. Element is field replaceable.
  • Precision Super Wide SWP44C: Hi Resolution, distortion-free with full zoom through capability.
Accessories:

  • Customizations are routine and welcome at Gates.
  • HD-SDI Surface Feed, for topside Director viewing and / or recording.
  • Gates Tripod collapses to the housing when not in use.
