Gates Pro Action Underwater Housing for ARRI ALEXA Mini, RED DSMC3 (Raptor), DSMC2 (Raven / Weapon / Scarlet-W / Monstro), and DSMC (Scarlet / Epic / Dragon)

Designed for one mission underwater action the new Gates Pro Action has purpose-built features for run and gun scenarios. Like a sleek, small profile for the freediver pursuing bait balls. Or the surf shooter composing the perfect wave with Pro Actions integrated, pivoting external monitor. And multi-camera compatibility RED DSMC1 / DSMC2 and ARRI ALEXA Mini is a bonus for natural history filmmakers.

Pro Action travels easy, fitting comfortably in a carry-on size Pelican case with camera / monitor / battery neatly tucked inside for the trip. Pro Action accepts all DSLR glass and smaller PL mount lenses, Various accessories extend Pro Action to pole cam shots of risky shark action and dolphin racing with a cheeseplate scooter mount.

The Gates Pro Action Housing is tailor-made for surf, dive, and exploratory imaging. And like all Gates products, Pro Action comes with our legendary 2-year warranty and customer support.

Pro Action Signature Features

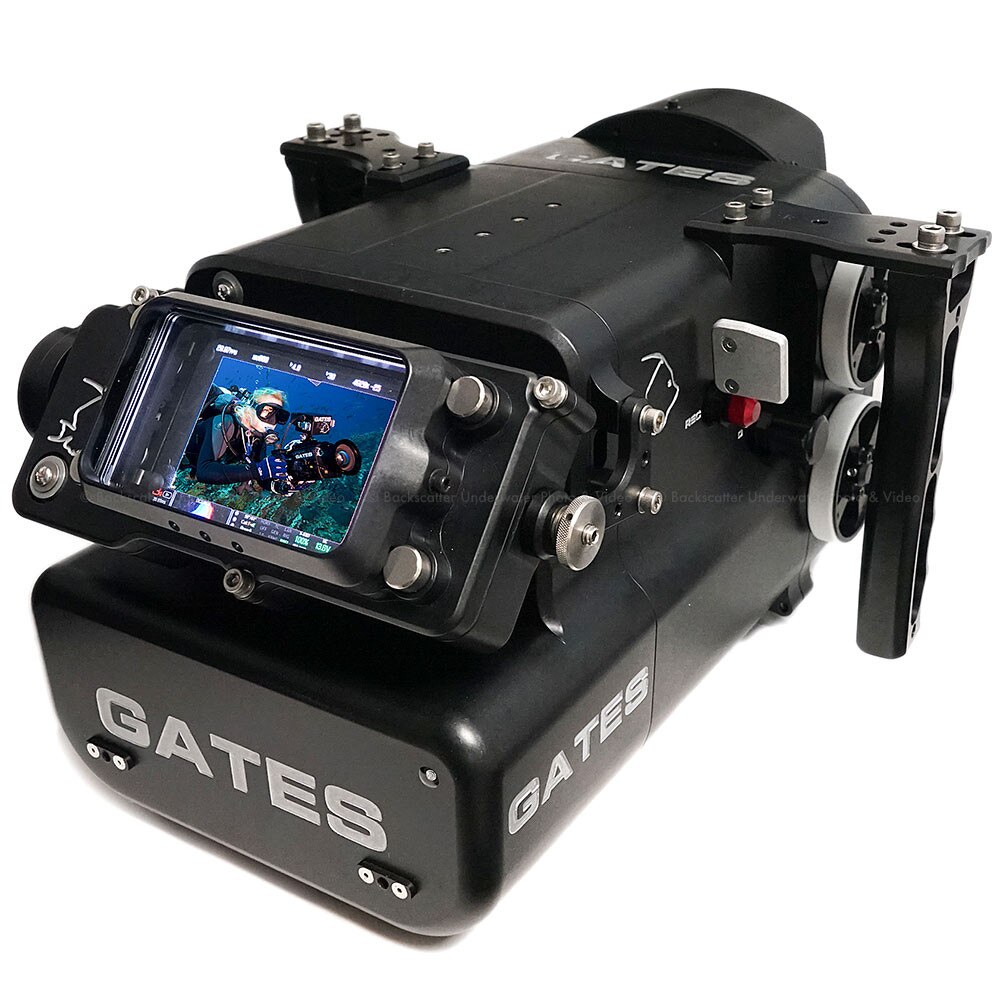

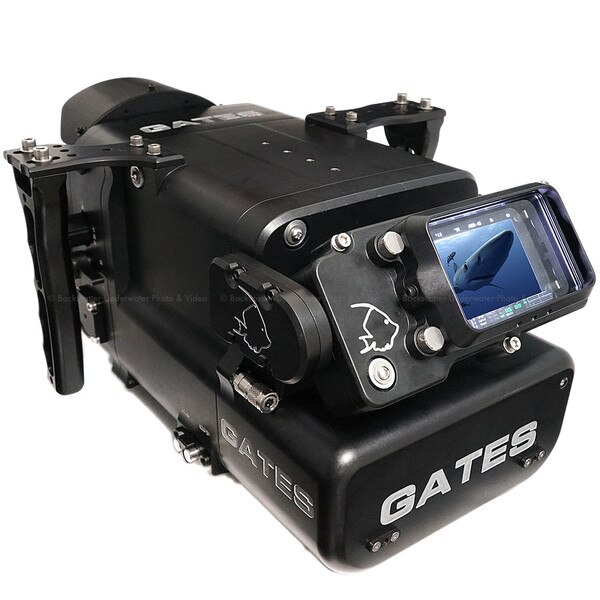

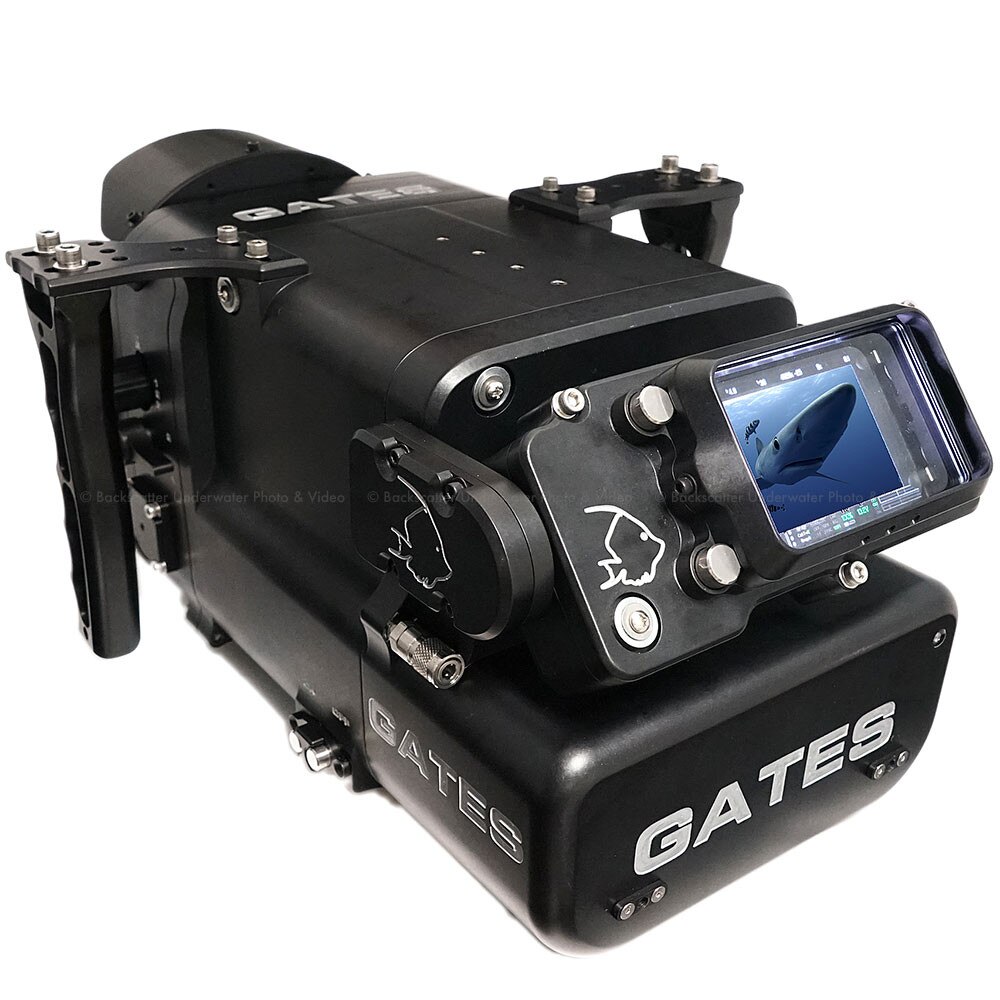

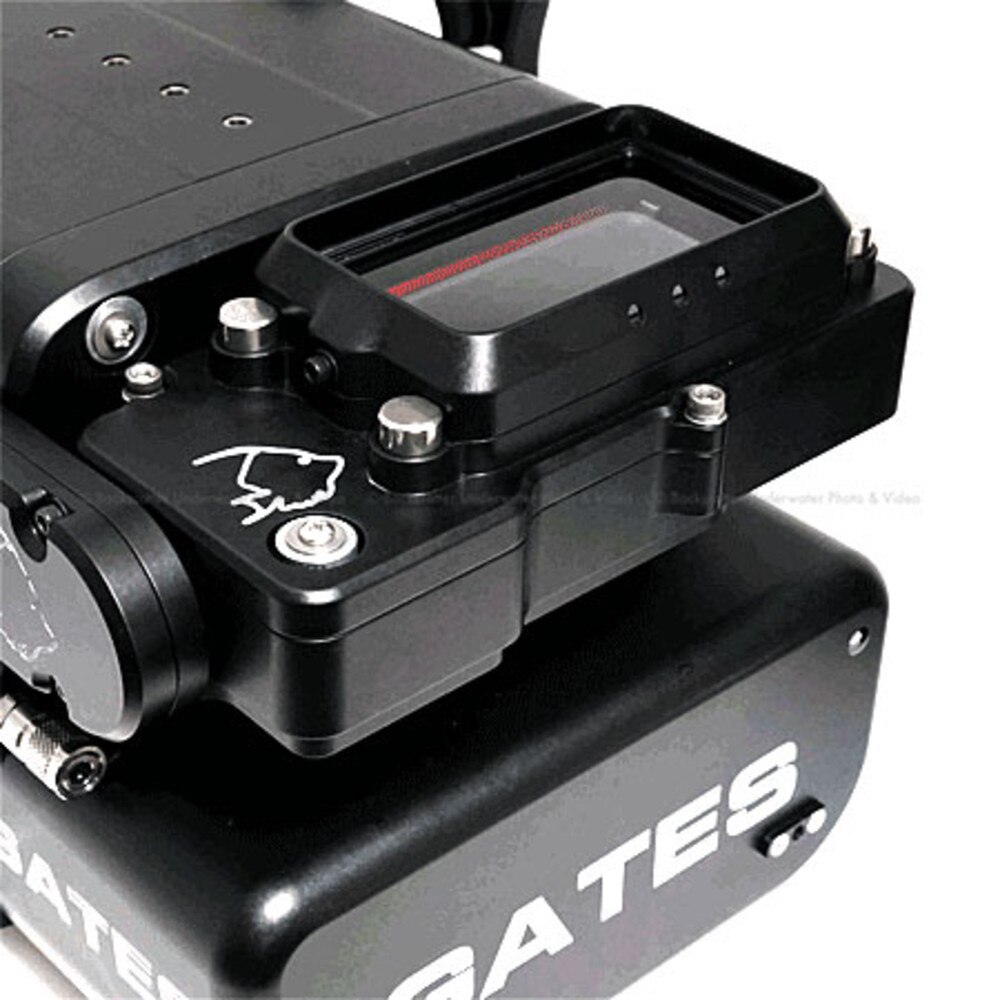

• Integrated, pivoting external monitor follows the sleek profile and pivots a full 90° for top or rear viewing
• Sleek profile and compact size make Pro Action your travel companion, fitting into a carry-on case or backpack.

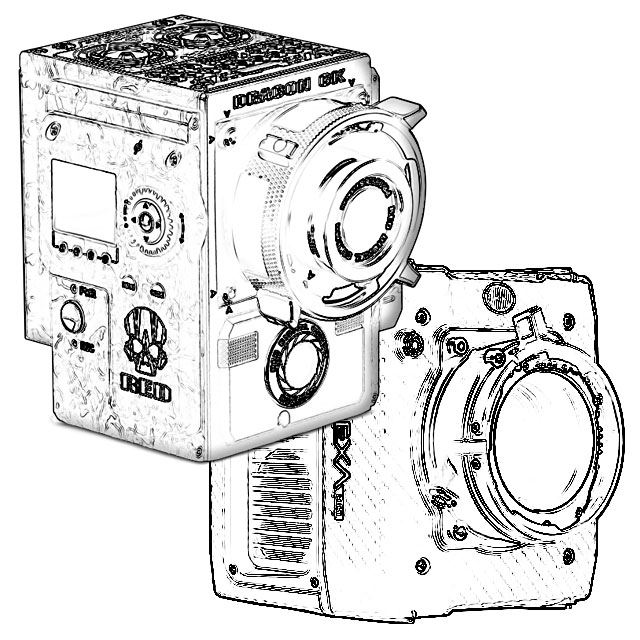

• Multi-Camera support for RED DSMC1 (Epic, Scarlet, Dragon), DSMC2 (Epic-W, Weapon, Scarlet-W, Raven), and ARRI ALEXA Mini.
• New 60-series Precision Ports match the compact size of Pro-Action. Existing 80-series ports are compatible, too.
• Simple run and gun controls access user-assignable on RED and ARRI cameras.
• Clean, Uncomplicated Design with mechanical control of lens and camera assignable buttons. Simplicity = Reliability
• Seal Check assures housing integrity before entering the water.
• 2-Year renewable warranty, legendary service, and factory-direct support = your success.

Specifications:

• Controls: (All Mechanical)
• Power On/Off
• Run / Stop
• 2x Direct Coupled Mechanical Lens control
• DSMC1: User Assignable x 2
• DSMC2: User Assignable x 6
• ALEXA Mini: User Assignable x 3
• External Monitor: 4x Smart Corners
• Dimensions (Housing only):
• Transport size with SP60-6 glass dome
• 17.1 L x 8.7 H x 9.7 W (12.7 w/Handles)
• 43.5 cm x 22.1 cm x 24.7 cm (32.6 cm)
• Construction: Machined aluminum. Type III hard anodize finish. Stainless steel hardware.
• Battery Options:
• Blueshape BV090
• SWIT 8172 and 8192
• Warranty: 2 Years Renewable. Factory-direct support.
• Depth Rating: 150 feet / 45 meters
• Weight: 30 lbs / 13.6 kg including camera, DSLR lensand Transvideo monitor installed.

Port Options

• Dome Port SP60-6
• 6 in / 152mm optical dome is field replaceable. Acrylic and A/R coated glass versions are available.
• Flat Port FP60
• A simple flat element is good for macro work. Element is field replaceable. Acrylic or glass.
• Dome Port SP60-8
• And 8 in / 203mm acrylic dome in a smaller, 60-series port shell.
• Flat Port FP80
• A simple flat element is good for macro work. Element is field replaceable.
• Dome Port SP80-8
• 8 in / 203mm optical dome is field replaceable. Acrylic and A/R coated glass versions are available.
• Dome Port SP80-10
• Designed for cinema glass, the AR Coated 10 in / 254mm optical dome port is nearly a full hemisphere.

Camera Equipment Required

• DSMC3: Camera (No modules). Recording media
• DSMC: Camera (No modules). REDMAG media. For setup only: REDMOTE
• DSMC2: Camera. Jetpack SDI Module (SKU 720-0047). Sidekick Module (SKU 7200032). REDMAG media. For setup only: FOOLCONTROL (via wifi / smartphone)
• ARRI Mini: Camera. Recording media.
