Gates ALEXA Underwater Housing for Arri Alexa XT Plus

Supporting over 70 PL mount lenses, the Gates ALEXA housing is an integrated underwater workhorse on par with the Arri Alexa cameras for which is was designed. The seasoned professional will recognize many Gates signature features: clean, uncomplicated, user friendly design; Gates precision ports for clear, sharp images; extensive line of accessories and custom configurations; and Seal Check II will verify housing integrity before entering the water.

SKU: # gt-90-10-803

FREE Standard Shipping to USA / CANADA!

Price $19,650.00

Base Price $

Price as Configured $

Price $19,650.00
Price $19,650.00

Custom Options


Overview / Product Description

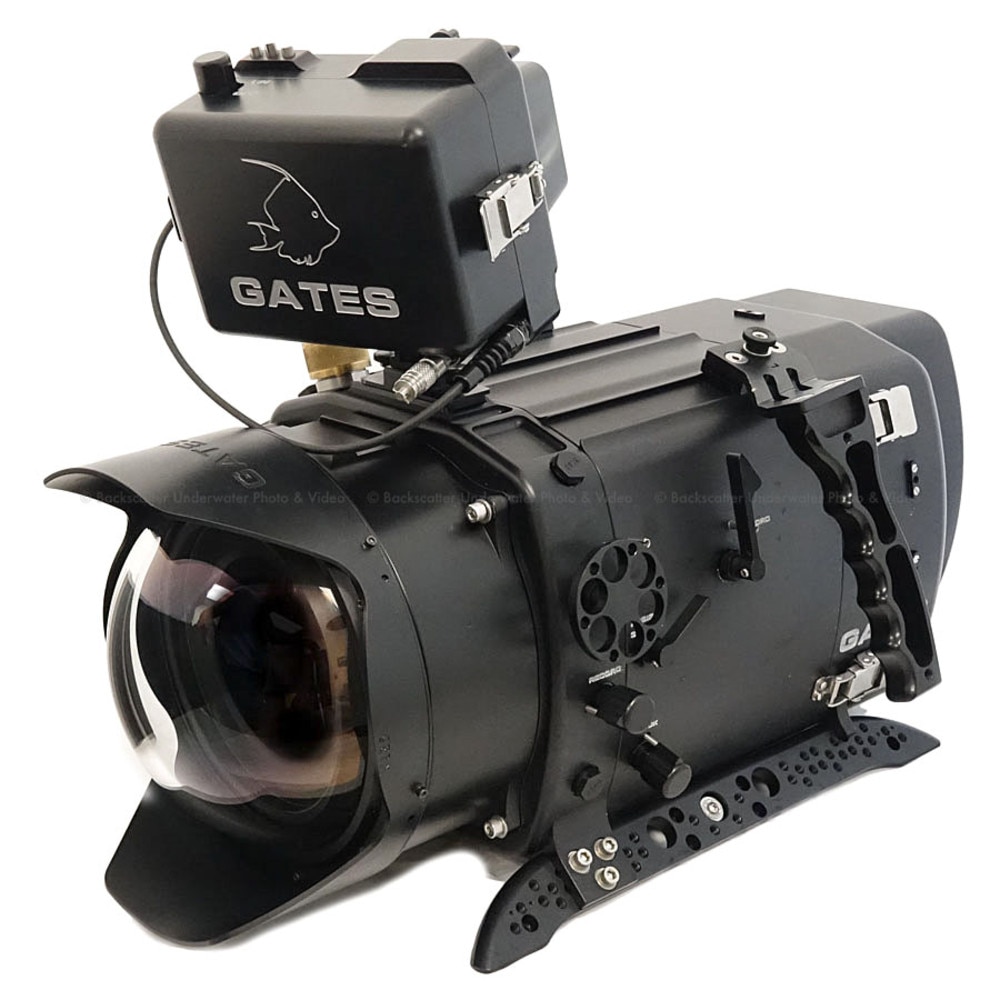

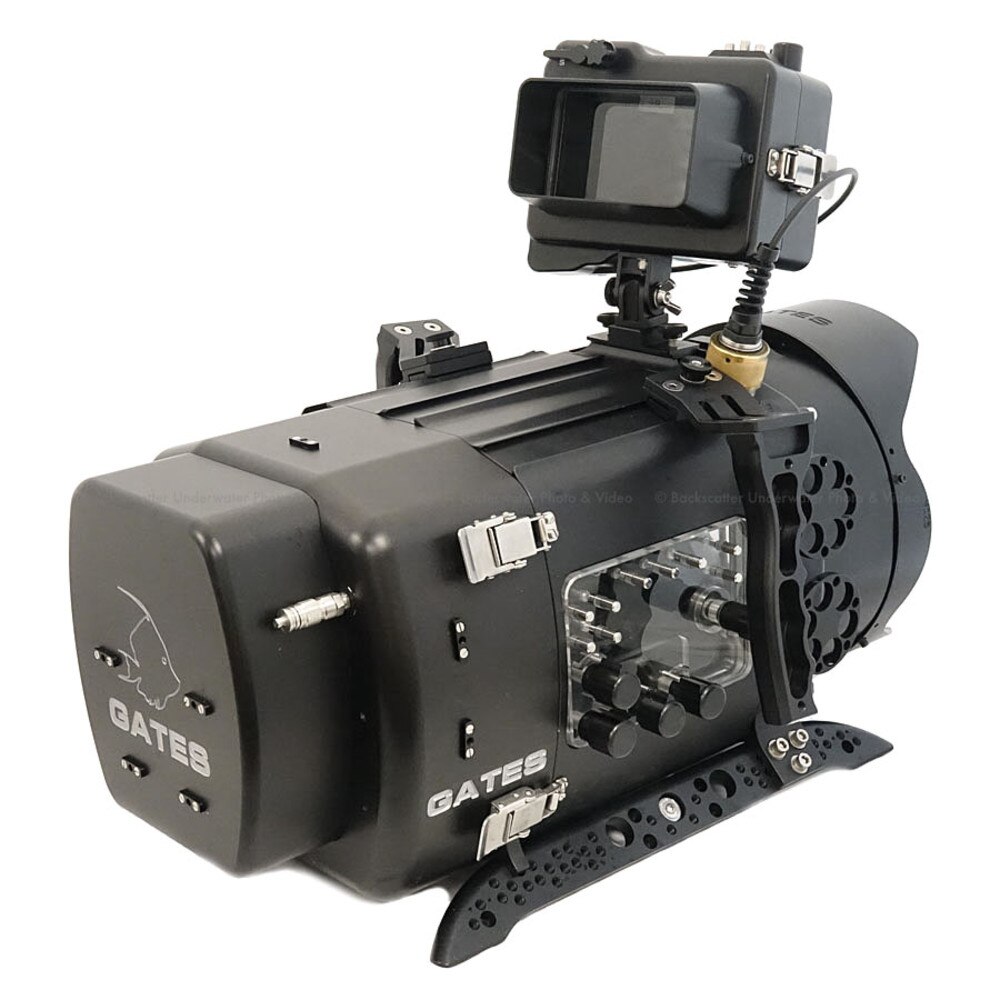

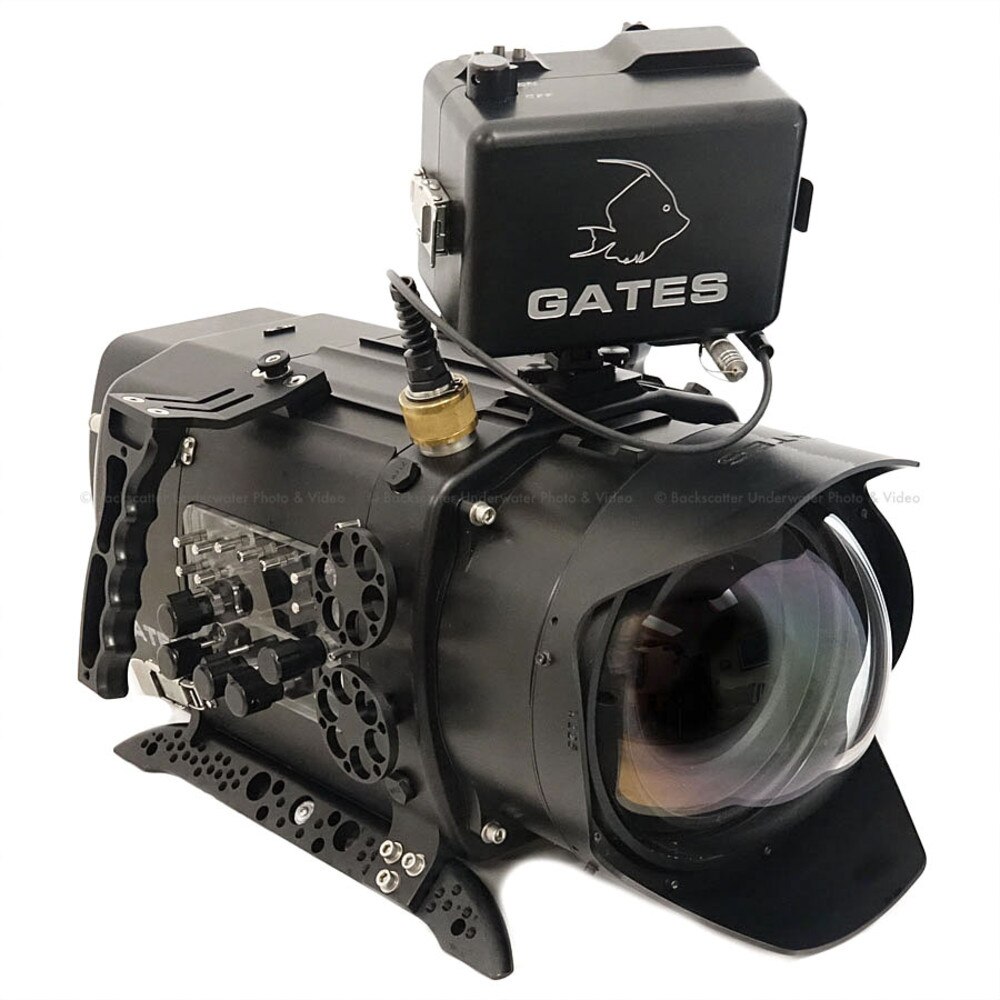

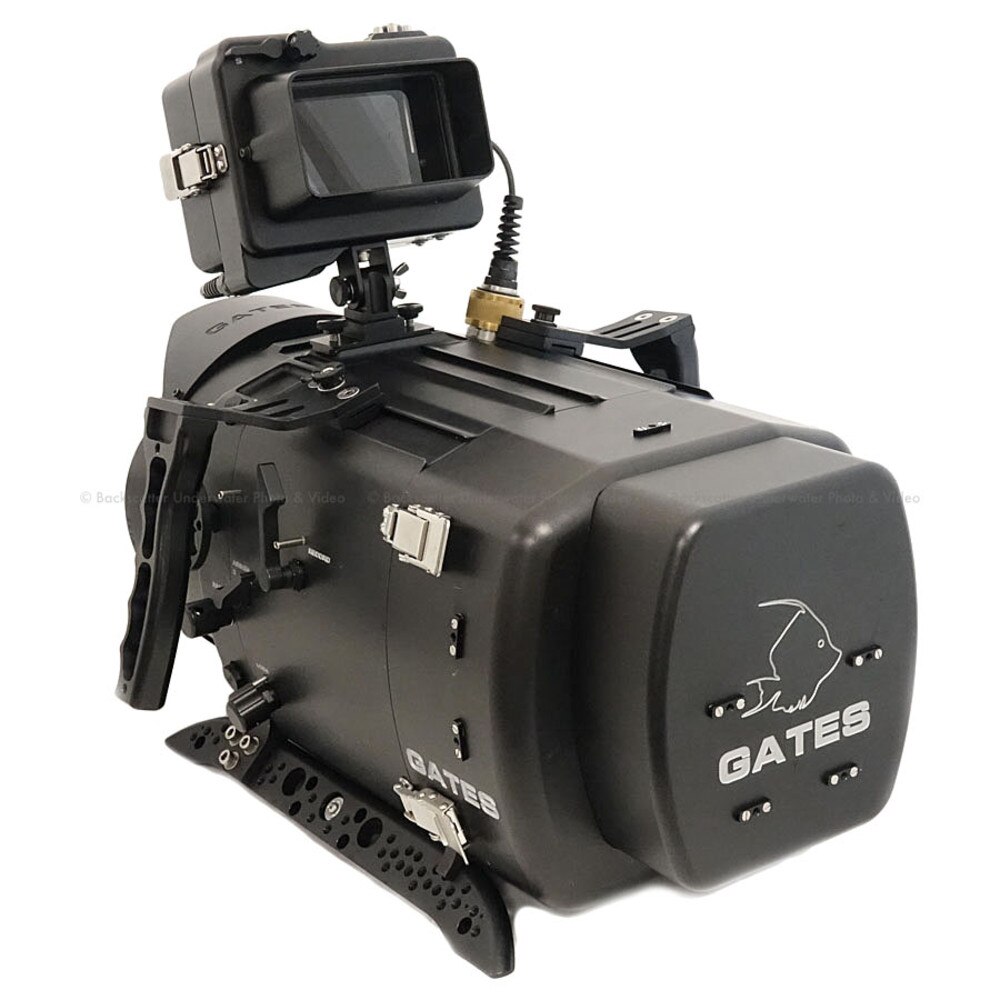

Gates ALEXA Underwater Housing for Arri Alexa XT Plus




Gates Bulletproof underwater security for the Arri Alexa

Supporting over 70 PL mount lenses, the Gates ALEXA housing is an integrated underwater workhorse on par with the Arri Alexa cameras for which is was designed. The seasoned professional will recognize many Gates signature features: clean, uncomplicated, user friendly design; Gates precision ports for clear, sharp images; extensive line of accessories and custom configurations; and Seal Check II will verify housing integrity before entering the water.



Reaching the far corners of the world, Gates housings are tasked with the most demanding projects extending from marine research and military to television and cinema productions. Experts know that failure is not an option, so they never take a chance.... they take a Gates!



Compatible Cameras:

  • ALEXA XT: Arri Alexa EV & XT
  • ALEXA XT PLUS: Arri Alexa XT Plus
Gates Signature Features:

  • Durable, "Bulletproof" machined aluminum, black type III 'hard' anodize finish, and sealed with a nickel- acetate process.
  • TVL55 External Color Monitor is standard with the ALEXA.
  • Full Control Access: soft keys, playback, user keys and direct couples focus, zoom, iris.
  • Changeable Buoyancy and Trim: Add / remove trim weights for ideal balance -- just the way you like it.
  • Clean, Uncomplicated Design with 100% mechanical controls no complicated mechanisms or electronics to fail. Simplicity = Reliability
  • Quality Optics means clarity, sharpness and no vignetting (cutoff dark corners) to spoil your images.
  • 2-Year renewable warranty, legendary service, and factory direct support = success.
  • Seal Check assures housing integrity before entering the water.
Specifications:

  • Controls (All Mechanical)
    • Power On/Off
    • Screen Buttons x6
    • Record / Stdby
    • Home
    • Menu
    • Jogwheel / Set
    • Assign x 2
    • Play
    • Grab
    • TC
    • Back
    • User
    • Lock
    • Direct Lens Coupled (manual) Focus, Iris, Zoom
  • Dimensions:
    • Transport size with 8 dome, PE286
    • 21 L x 11.5 H x 11.9 W (16.5 w/Handles)
    • 54 cm x 29.2 cm x 30.2 cm (41.9 cm)
  • Construction: Machined aluminum. Type III hard anodize finish. Stainless steel hardware.
  • Weight
    • Dry: TBD lbs (PE160 / Glass SP80)
    • In water: Slightly negative and adjustable
  • Batteries: V-Lock type. Contact Gates for non-standard battery size compatibility.
  • Warranty: 2 Years Renewable. Factory direct support.
  • Depth Rating: 200 feet / 61 meters
Port Options:

  • Standard Port SP80: Optical dome is field replaceable. Acrylic and A/R coated glass versions available.
  • Flat Port FP80: A simple flat element good for macro work. Element is field replaceable.
Accessories

  • Comm Input: Records diver communications.
  • Customizations are routine and welcome at Gates.
  • HD-SDI Surface Feed, for topside Director viewing and / or recording.
  • Water Alarm with visible and cascading audio is easily seen and heard underwater.
  • Gates Tripod collapses to the housing when not in use.
