Dive & See DNC-N Underwater housing for Atomos Ninja-2 recorder and monitor
Take your Atomos Ninja-2 1080 Recorder and Monitor underwater and get uncompressed HD video with the Dive & See DNC-N Underwater Housing. With the ability to control of most of the recorder's controls, you will be able to hit record remotely and see what you are shooting from the Ninja Recorder.
FREE Standard Shipping to USA / CANADA!
Base Price $
Price as Configured $
Overview / Product Description
Compact, rugged, safe design. The monitor guarantees NEMA 6 (IP 68). Strong and lightweight anodized aluminum shell resistant to salt water.
The set includes a detachable mount adapter, allowing the underwater monitor to be tilted and rotated, with 1" ball on the end. Binding T-slots on the top and bottom allow convenient connection with underwater housings and arms, manufactured by Ultralight and Beneath the Surface. It is useful for lighting or an external microphone.
QUICK DETACHABLE CONNECTORS

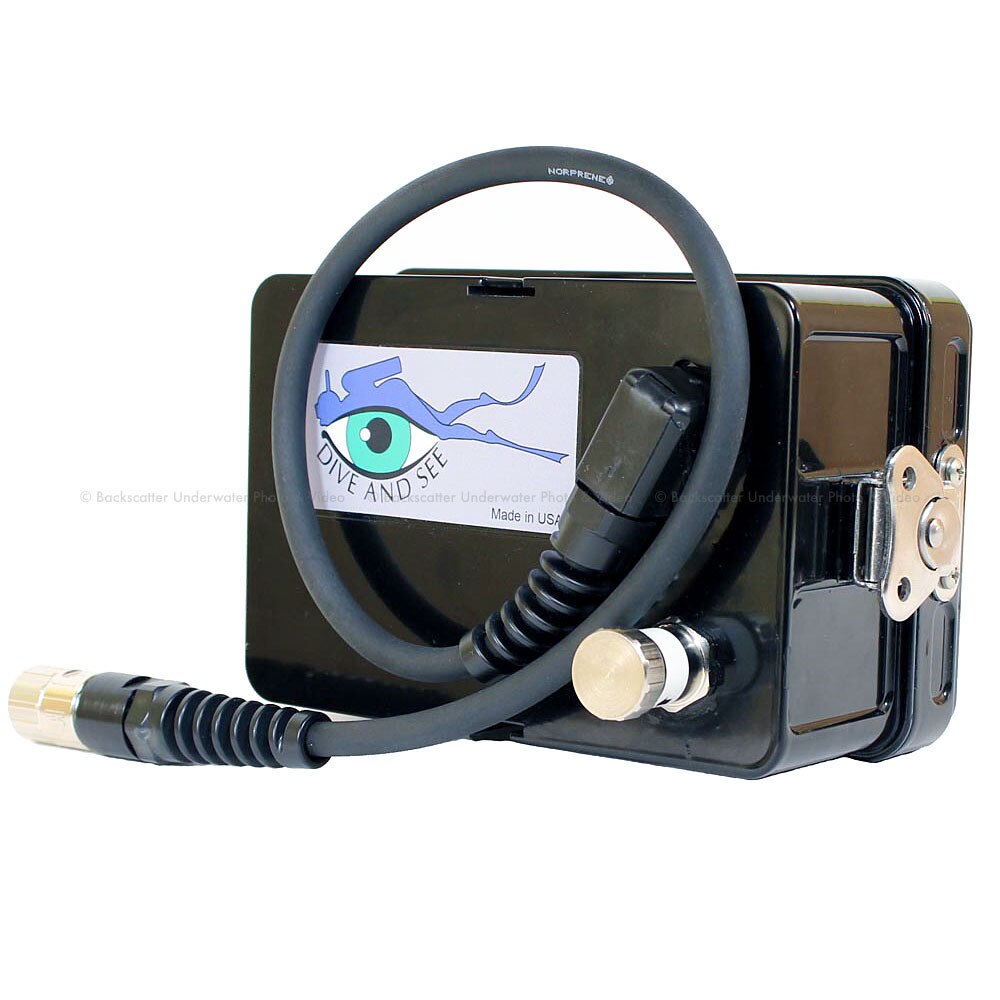

Being a manufacturer allows Dive & See to provide custom variations (1/2x20; M12; M14; M15; M16; etc) of the underwater bulkhead connectors for HDMI signal. They are compatible with many video and DSLR housings. All of the bulkhead connectors have water blocks and are open face pressure rated to 85 PSI. The Dive & See bulkhead connectors fit into existing free ports in your housing and are easy to install. The DNC-N has a detachable HDMI cable for a quick connection with a bulkhead connector on the housing. The unplugable cable is convenient for transportation. The bulkhead connector is compatible with DNC-7 and DNC-5. A dual o-ring seals the bulkhead HDMI connector and increases the reliability of the connection. The first o-ring works as an axial seal and the second as a radial seal to assure continued sealing. Custom bulkhead connector, length and other connector types are available.
The Switch Guard design of the power button protects the Atomos Ninja 2 from self-activation during transportation. All push buttons made are from non-corrosive steel.
MINI HDMI RIGHT ANGLE CONNECTOR
Dive & See's unique right-angle connector allows our monitors to easily fit with existing photo and video housings.
- Screen Size: 4.3 inch / 16:9
- Records 1080/30p/60i, 10-Bit, 4:2:2 from Sensor
- Trigger REC/STOP from housing and camera. For a list of compatible cameras, please visit Atomos.com/support, and click on Knowledge Base
- Video input: HDMI

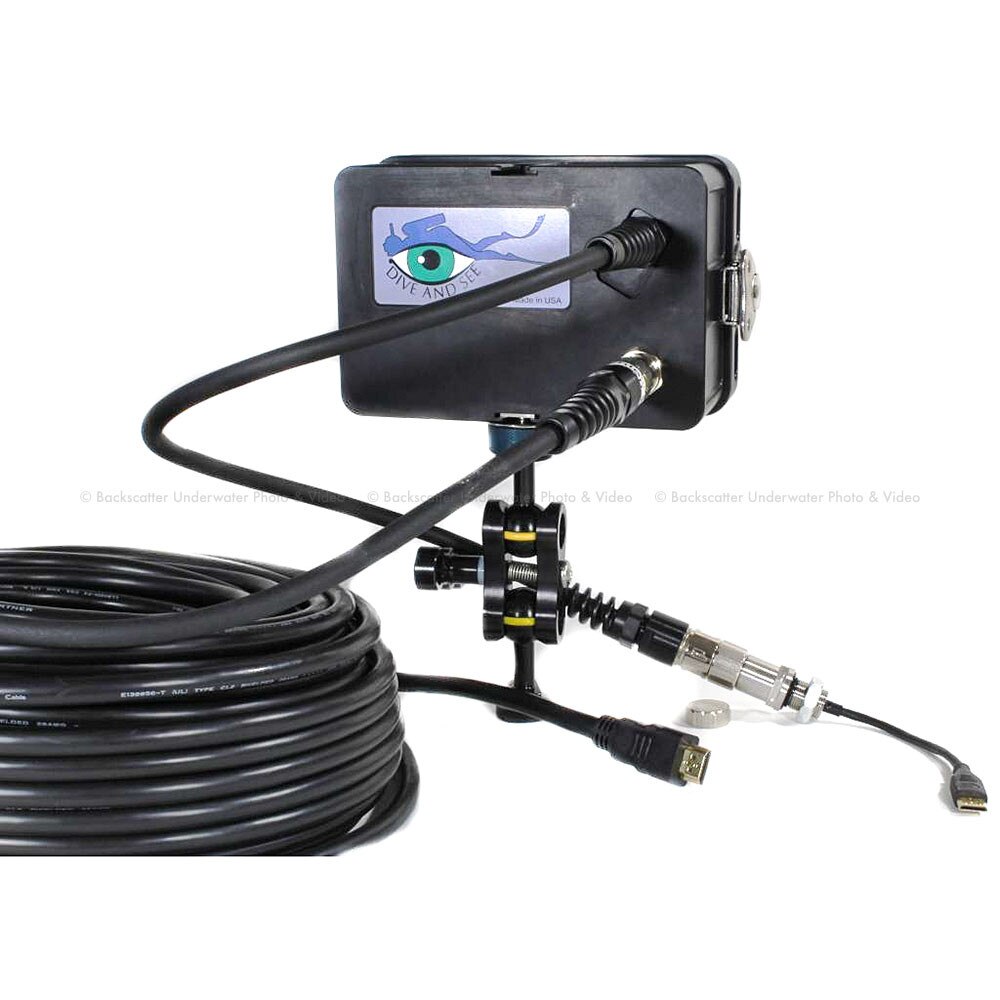

- Optional: HDMI loop through (for surface feed cable)
- Depth Rating: 100 m
- Size 7.2x 4.4 x 4.2 inch / 183 x 112 x 106 mm
- Weight of the housing only: 1 kg
- Weight of complete set (Housing, Sun shade, Ninja-2 with 2 battery, Hard disc SSD, Cold shoe ball mount, Bulkhead connector) - 2 kg
- Buoyancy in fresh water - negative 350 g
- Battery for wet alarm
- One bulkhead connector (specify your housing)
- Mini HDMI right-angle connector
- 1 metal and 1 plastic protective cap

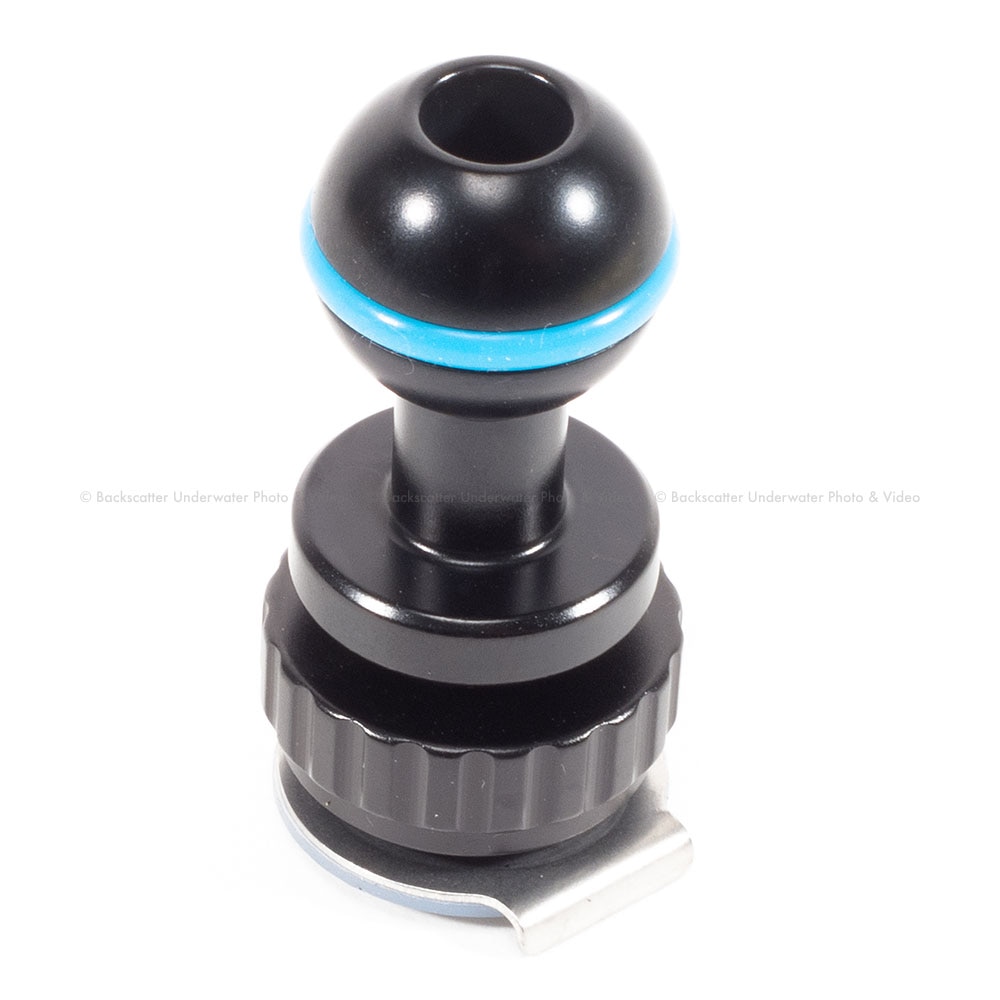

- One cold shoe ball mount
- Spare o-ring; O-ring lubricant
- Ninja-2 not included
