Gates XA10 Underwater Housing for Canon XA10 & HF-G10 Cameras

The Gates XA10 housing continues the highly popular 5.5in/14cm diagonal window feature for wide viewing angles of the big 3.5 inch diagonal camera LCD your built-in hi resolution widescreen viewfinder. The Canon XA10 and HF-G10 cameras have native 1920x1080 sensors which means pro-quality underwater HD images and superior low light performance when paired with Gates Precision Ports.

SKU: # gt-10-10-991

FREE Standard Shipping to USA / CANADA!

Price $2,490.00

Base Price $

Price as Configured $

Price $2,490.00

This product has been discontinued. Please scroll down for accessories and other options.

Price $2,490.00

This product has been discontinued. Please scroll down for accessories and other options.

Custom Options


Overview / Product Description

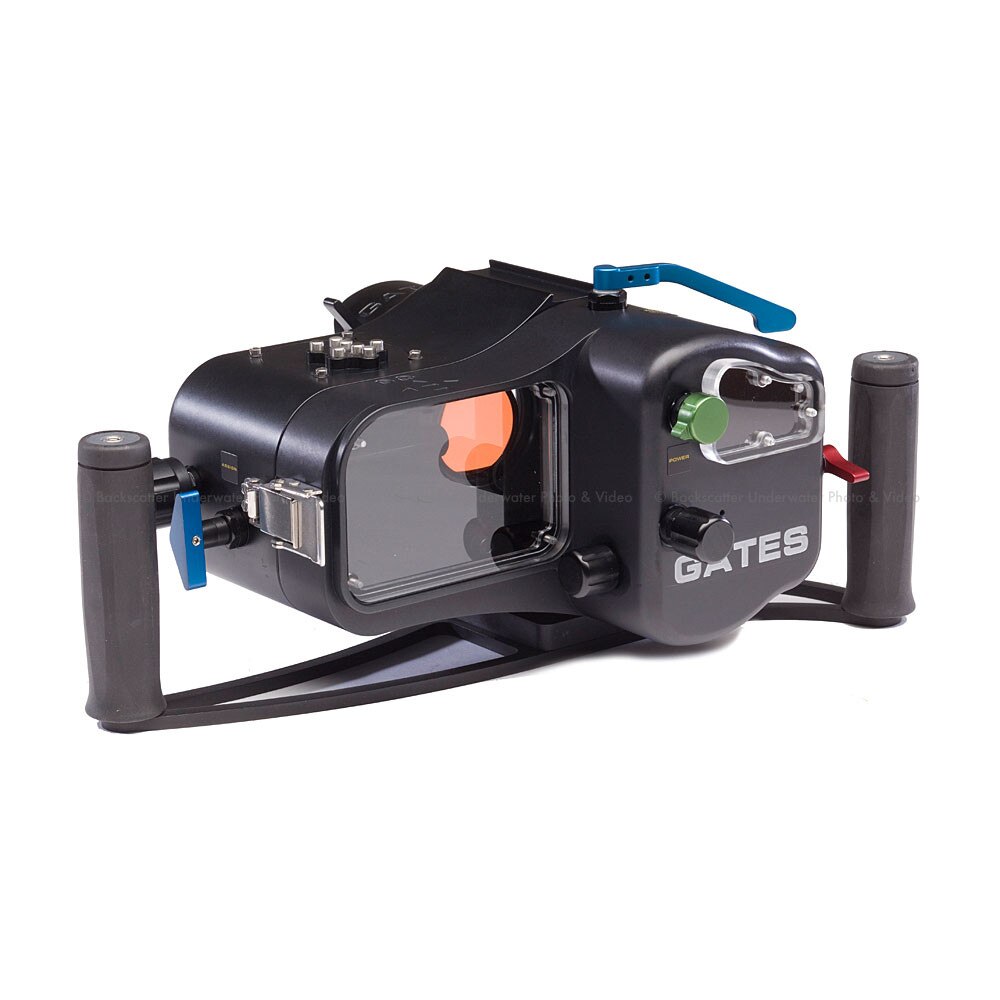

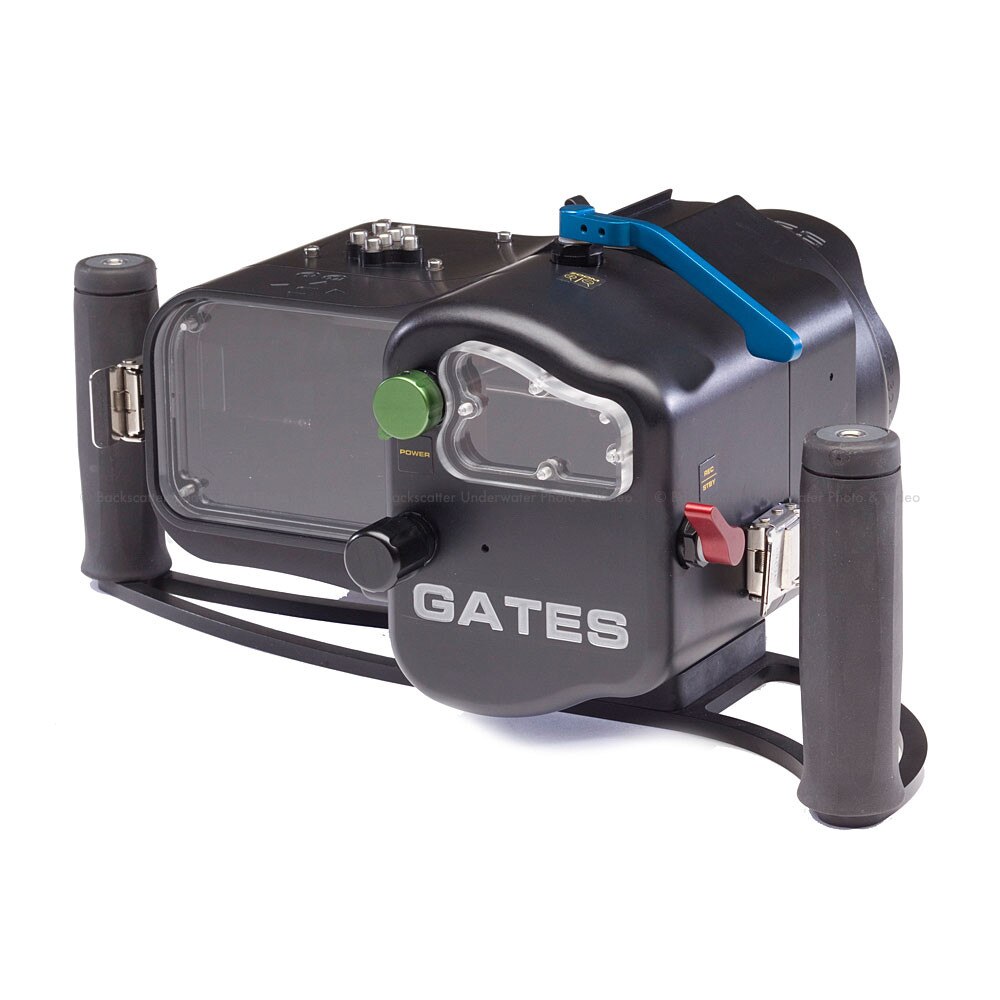

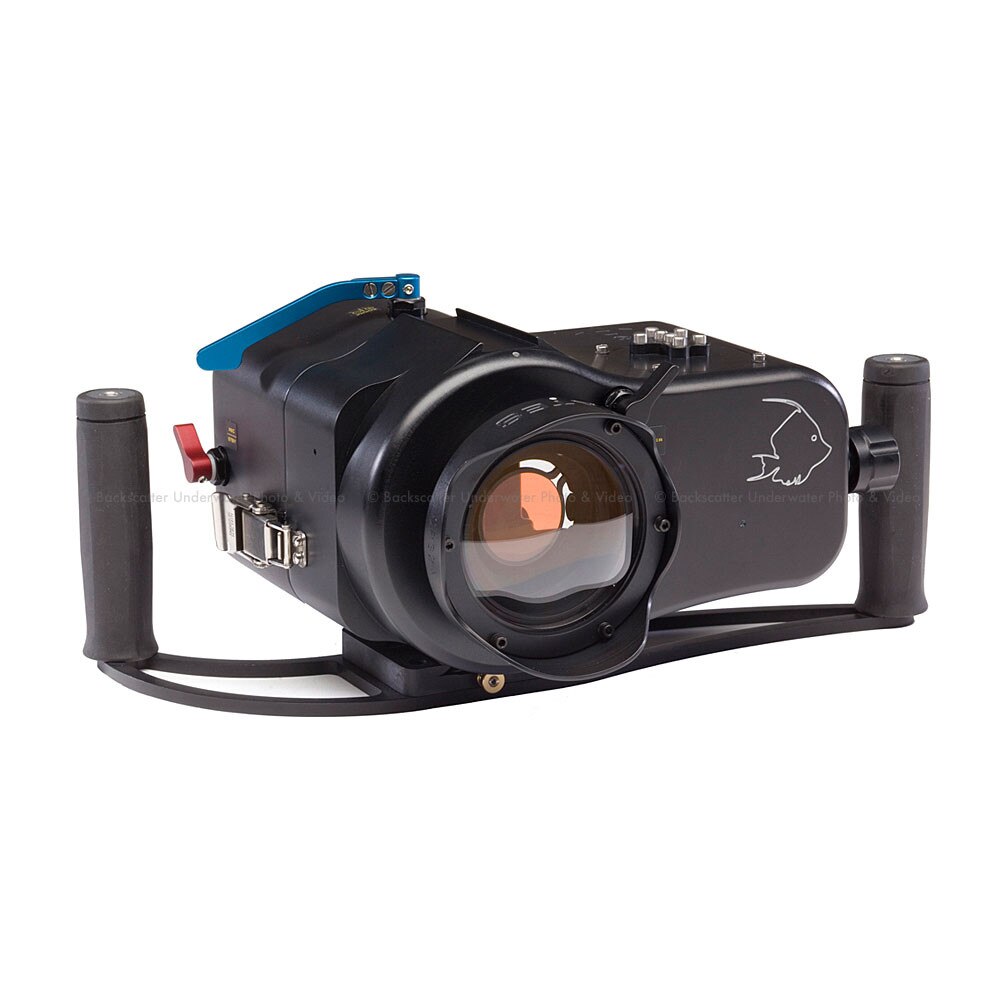

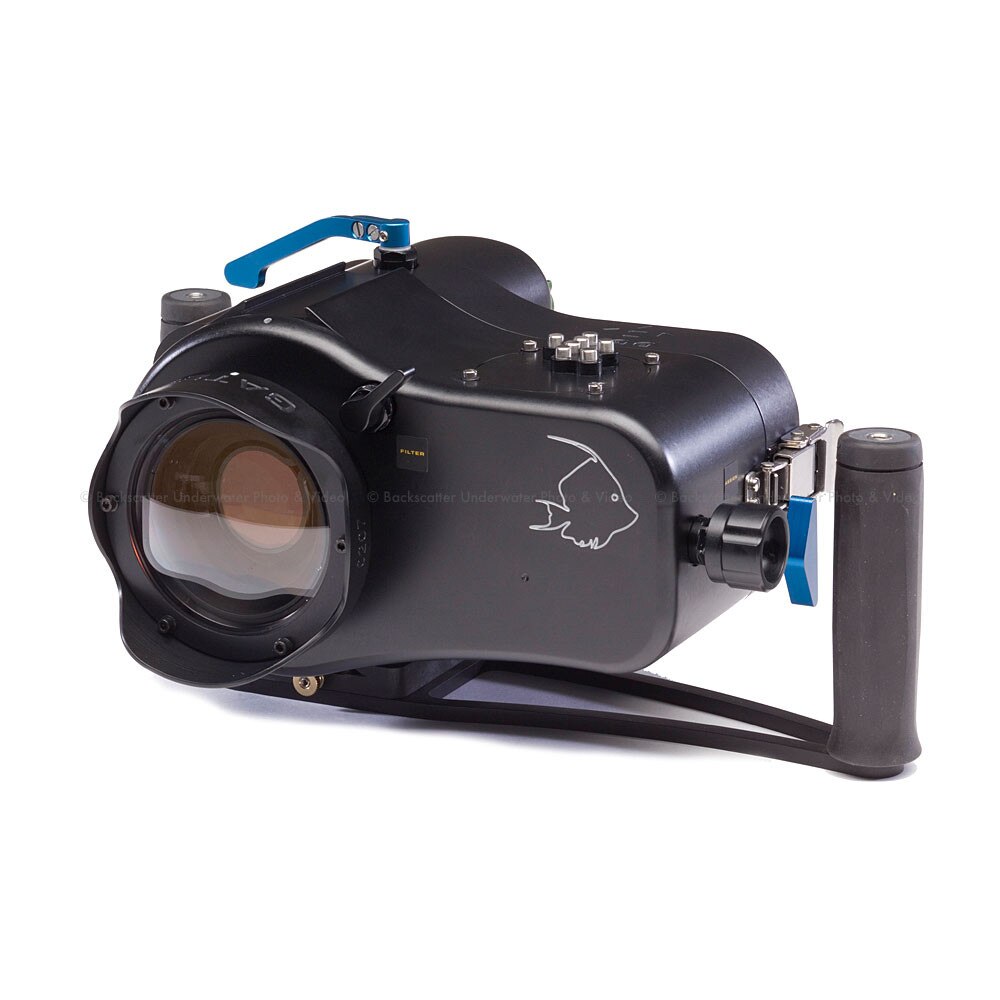

Gates XA10 Underwater Housing for Canon XA10 & HF-G10 Cameras



The Gates XA10 housing continues the highly popular 5.5in/14cm diagonal window feature for wide viewing angles of the big 3.5 inch diagonal camera LCD your built-in hi resolution widescreen viewfinder. The Canon XA10 and HF-G10 cameras have native 1920x1080 sensors which means pro-quality underwater HD images and superior low light performance when paired with Gates Precision Ports. The Gates XA10 housing provides reliable fingertip mechanical control and access to all camera functions: Simply slide the Canon remote inside the shell and White Balance, Tele Converter and all embedded menu functions are readily available.



SPECS:Controls (All Mechanical)

* Power

* Zoom

* Record/Standby

* Internal Flip Filter

* Photo

* Assignable Button (2)

* White Bal/Tele Macro (via touch screen)



* Dimensions



* 9.5 inch D x 6.75 inch H x 11.1 inch W (15.1 inch w/handles)

* 24 cm L x 16 cm H x 30 cm W (38 cm w/handles)



* Warrabty

* 2 Year - RENEWABLE

* Construction

* Machined Aluminum w/ Type III hard anodize & Nickel Acetate Seal. Stainless steel hardware



* Weight

* Dry: 11.3 lbs / 5.1 kg

* In Water: slightly negative



* Depth Rating

* 450 feet / 137 meters



* Batteries

* Accepts all batteries up to BP-827.



Optional Ports (must select at least one)



Flat Port FP32A Good for macro work, the Flat Port allows full zoom through and use of diopters.



Standard Port SP32A This 1:1 port is optically corrected for underwater use.



Wide Angle Port GP32A A Gates workhorse. Optical polycarbonate dome is field replaceable. Typical field of view is 70-80 degrees.
