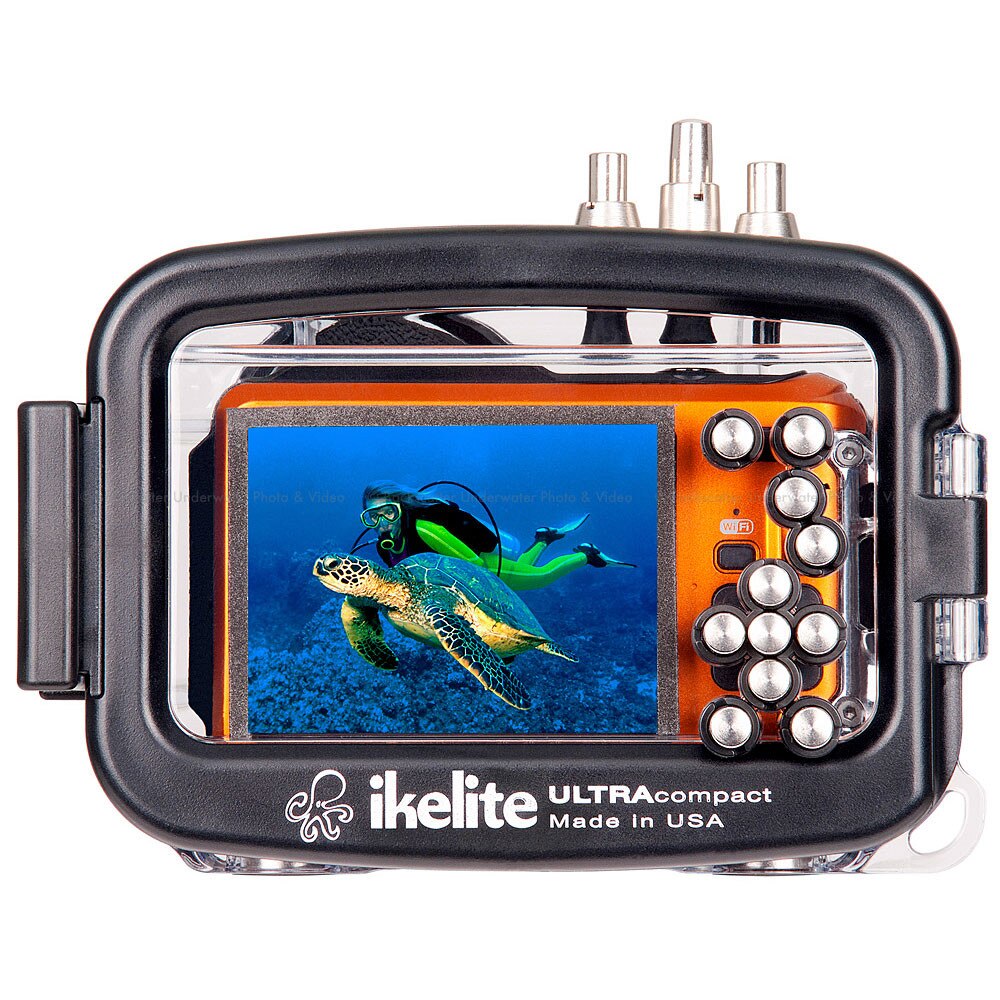

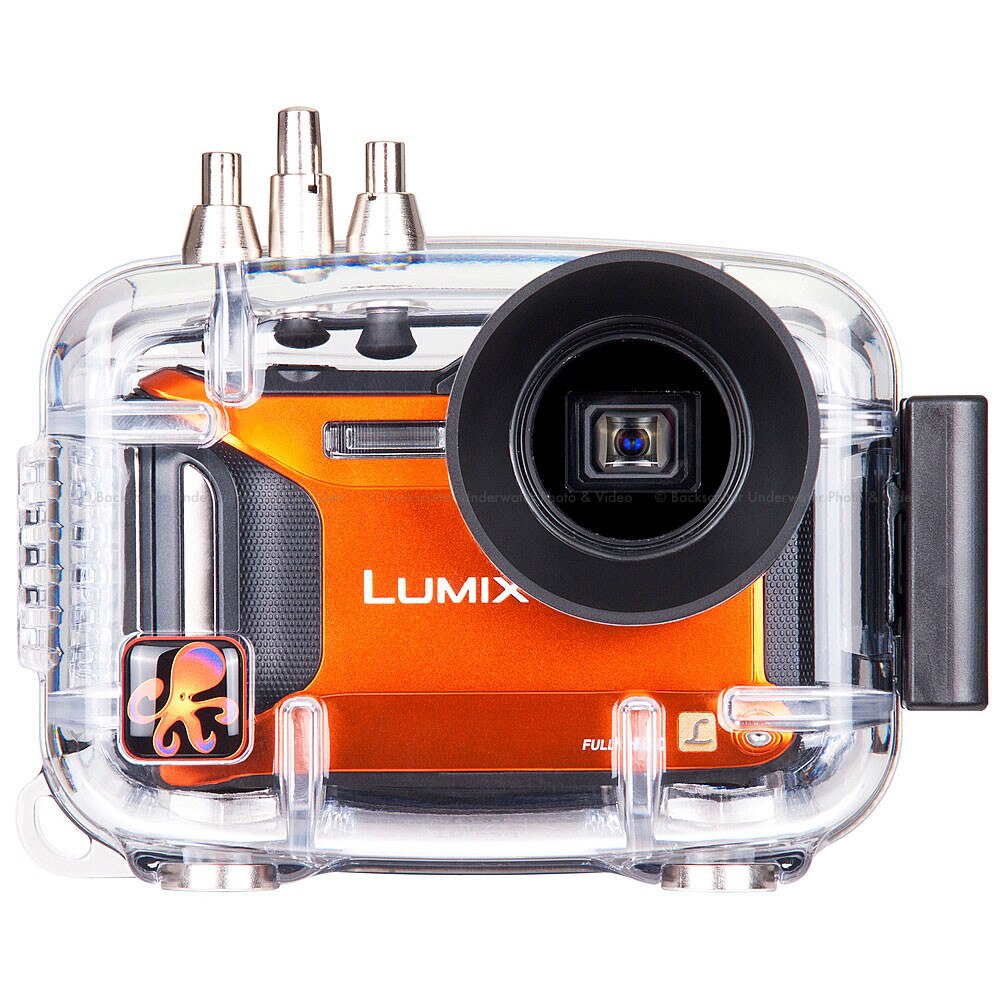

Ikelite Underwater Housing for Panasonic Lumix DMC-TS5 & FT5

Ikelite Underwater Housing for Panasonic Lumix DMC-TS5 & FT5

Perfectly proportioned.
The Ikelite housing for the Panasonic Lumix TS5 & FT5 is just-right-sized for carefree travel and a comfortable hold with or without a thick glove. All important camera functions are at your finger tips using a series of heavy duty, custom made mechanical controls. A built-in air cushion is our secret for reduced possibility of fogging due to trapped moisture and superior buoyancy controlespecially important for shooting steady HD video. Expand your system by adding an AF35 AutoFlash strobe or optional tray with release handle(s), attached with two screws for quick break-down during travel.

Clearly superior strength and assurance.
Special polycarbonate blends allow us to create an extremely strong yet clear and lightweight enclosure. We believe there's no substitute for inspecting the actual o-ring seal once your housing is closed. Our signature clear construction lets you see that the housing is watertight and dry before you enter the water, and provides full view of the camera while you're diving. Polycarbonate is fundamentally corrosion-resistant for easy maintenance year after year.

Quality in engineering, manufacturing and service.
Like every Ikelite product, this housing for the Panasonic Lumix TS5 & FT5 is designed, built and tested in the USA. We use locally sourced, top-grade materials from trusted vendors we've been working with for decades. Our housings are built by hand and individually tested for fit, function and waterproof integrity. The average assembly technician is a certified scuba diver and has over 16 years of experience building Ikelite products. We back our products with over 50 years of experience and service within the dive industry.

Specifications

• Controls: All camera controls except WiFi button
• Width: 5.9 in (150 mm) including controls
• Height: 4.7 in (119 mm) including controls
• Depth: 3.0 in (76 mm) including controls
• Buoyanc: yNeutral buoyancy in fresh water
• Depth Rating: 200 ft (60 m)
• Weight: 1 lb (454 g)
• Use Built-in Flash: Yes
• Strobe Connection: Optical Trigger
• Tray Mounting: 12-24 thread with 3 in spacing (76 mm)
• Port Diameter: 2.2 in (55 mm)
• Color Filters:
• 6441.31 Blue Water
• 6441.71 Green Water
• Use 46mm Threaded Lenses: No
• Use 67mm Threaded Lenses: No. Due to the nature of the camera's lens, external wide angle lenses provide no significant advantage
• Use Bayonet Lenses: No. Due to the nature of the camera's lens, external wide angle lenses provide no significant advantage
• Use WD-4 Wide Angle Dome: No
• Main O-Ring: 0132.45
• Port O-Ring: 0134.33
• Includes:
• Ikelite Housing
• Port Cover
• Flash Diffuser
• Flash Deflector
• Silicone Lubricant
• Spare Parts:
• 5020 Silicone lubricant
• 9523.10 Mounting hardware 12-24 x 1/2 in
