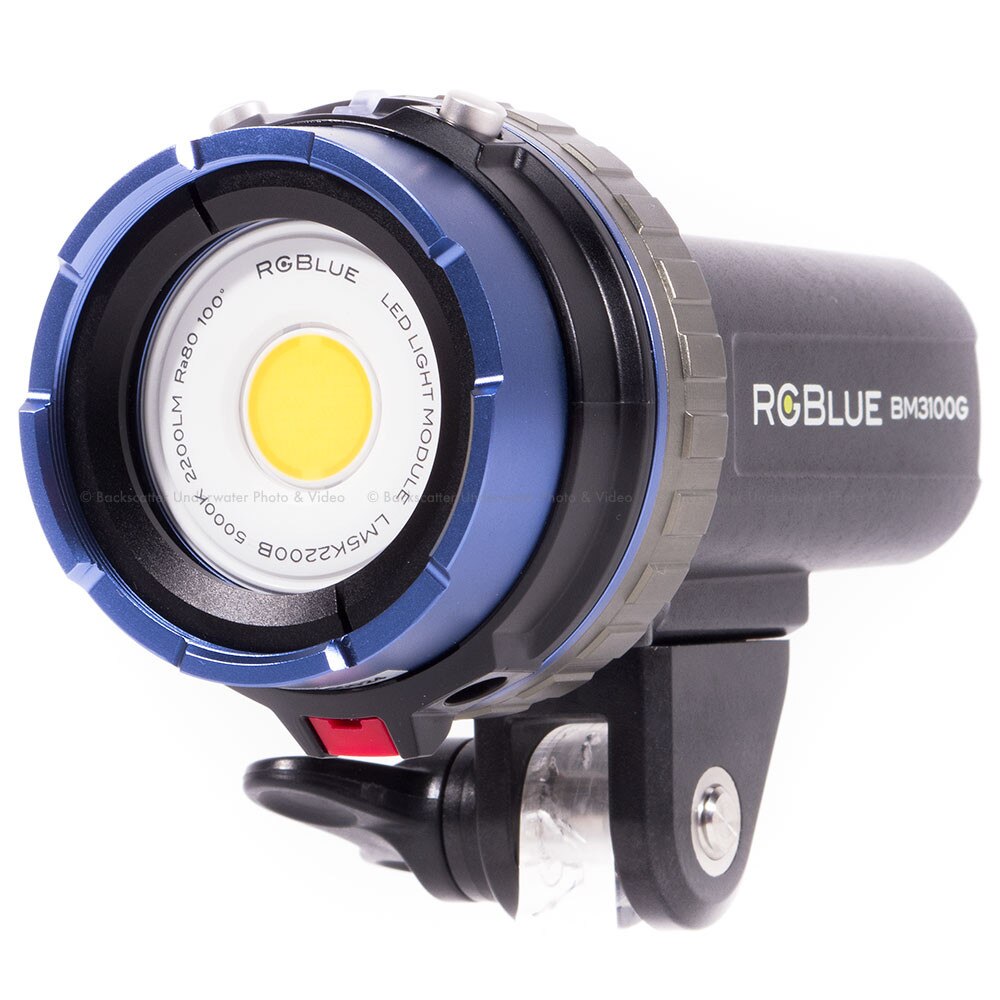

AOI RGBlue System01 Underwater Video Light

The RGBlue System01 employs a single-source type, COB (Chip On Board) LED. The COB LED emits light from a single plane so that the problems previously seen with multi-LED type light source such as the multi-shadow effect(*1) and light distribution irregularity are solved.

SKU: # Aoi-system01

FREE Standard Shipping to USA / CANADA!

Price $675.00

Base Price $

Price as Configured $

Price $675.00
Price $675.00

Custom Options


Overview / Product Description

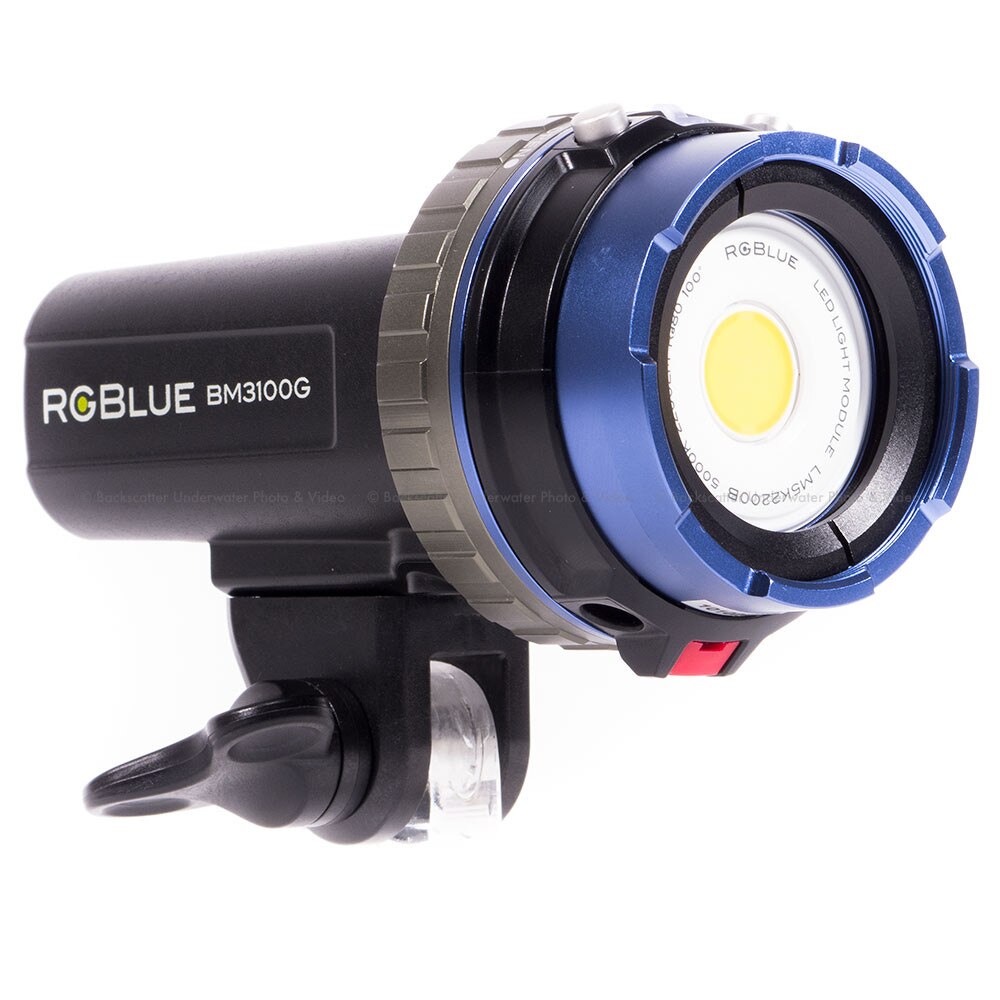

AOI RGBlue System01 Underwater Video Light

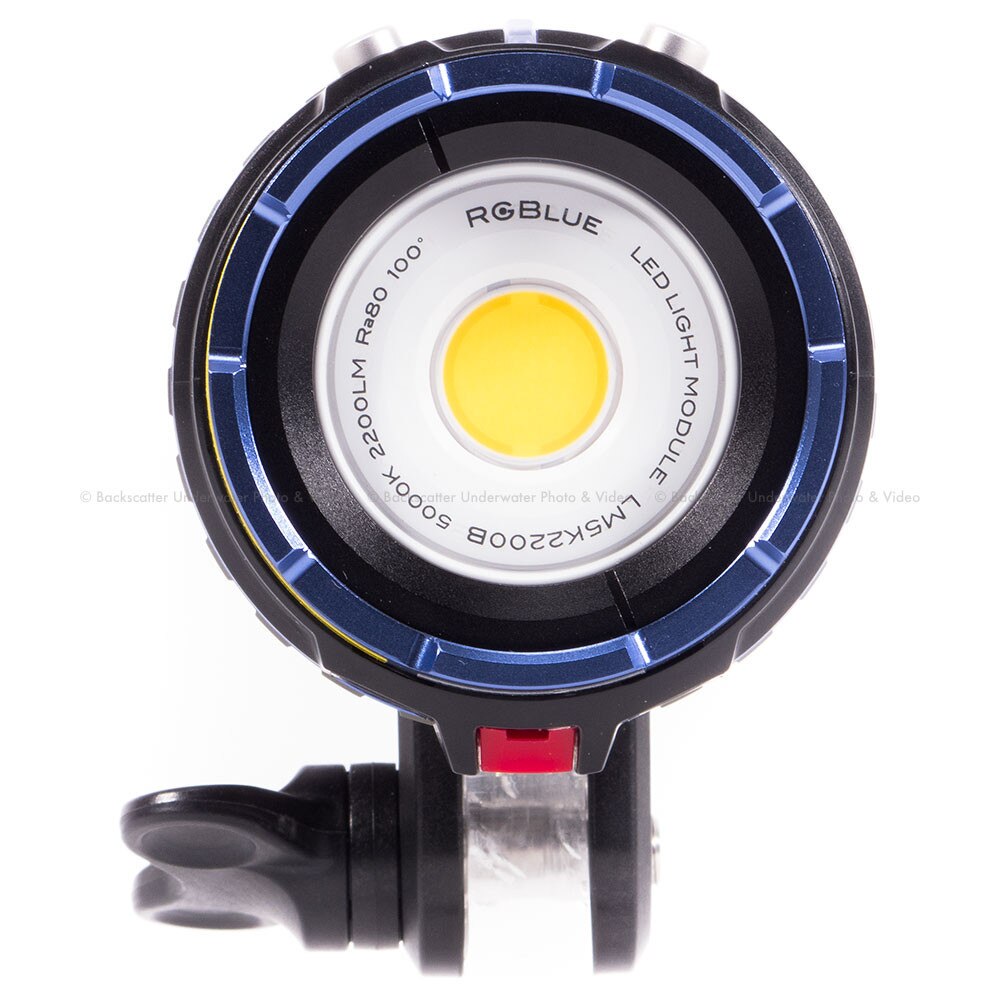

Single-source type, high-quality COB (Chip On Board) LED

The RGBlue System01 employs a single-source type, COB (Chip On Board) LED. The COB LED emits light from a single plane so that the problems previously seen with multi-LED type light source such as the multi-shadow effect(*1) and light distribution irregularity are solved.



Natural reproduction of underwater colors thanks to high color rendition and optimum color temperature

The COB LED emits light optimized for underwater shooting, achieving a high color rendering index of Ra80(*2) and a color temperature of 5000K(*3), enabling it to reproduce natural-looking colors closely resembling those produced under normal sunlight.



Flat light distribution with 100_ emission angle, 2200 lm maximum light intensity, condenser lens provided

Flat light is distributed evenly throughout the emission angle of 100_, which is sufficient for shooting movies, as well as for wide-angle shooting. Maximum light intensity is more than enough with total flux as high as 2200 lm. A condensing lens is provided as standard to increase illuminance by reducing the light distribution angle to 60_.



Modularized system with one-touch connection/disconnection capability

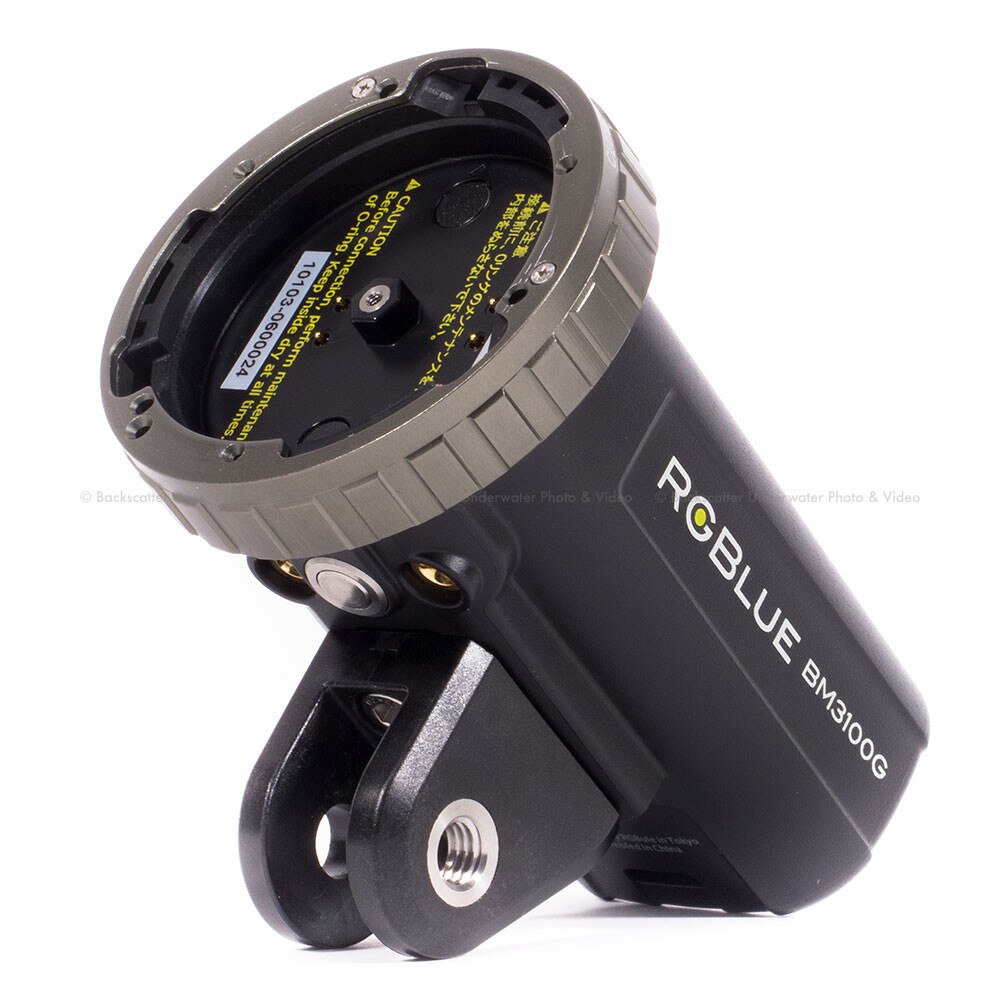

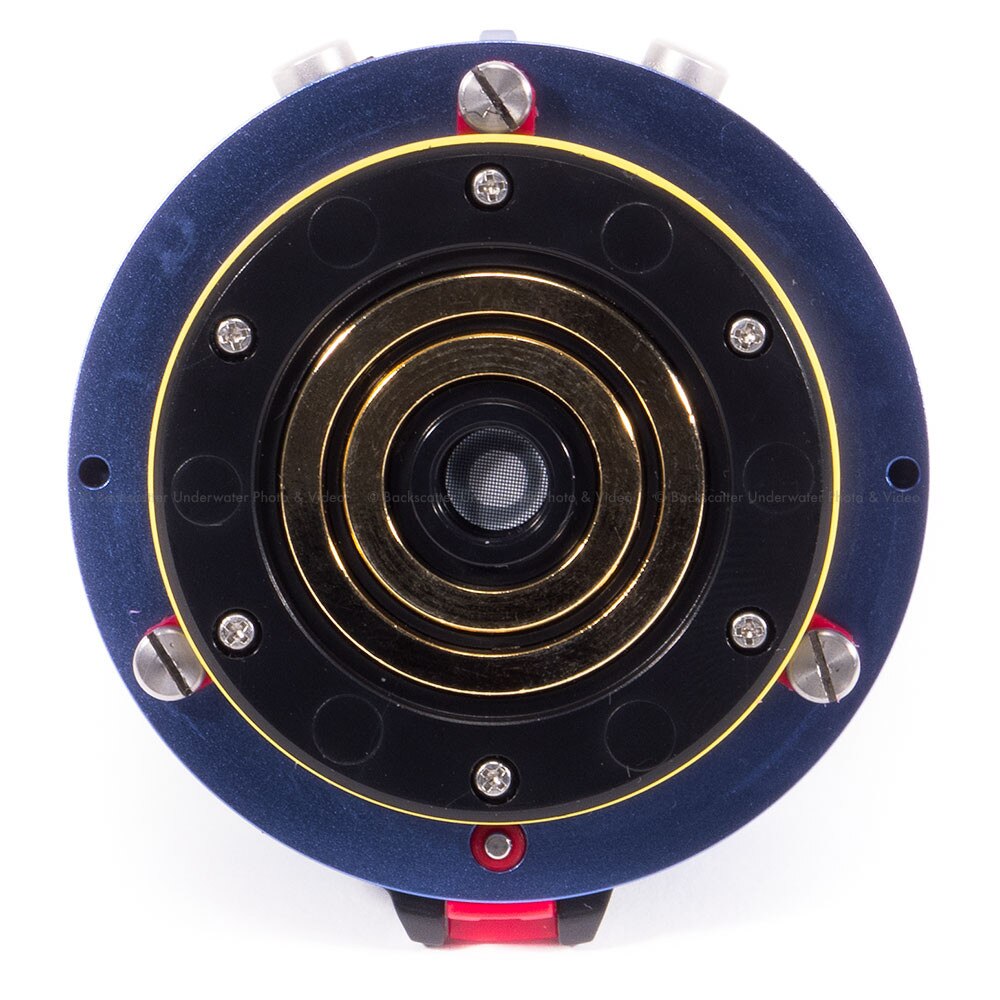

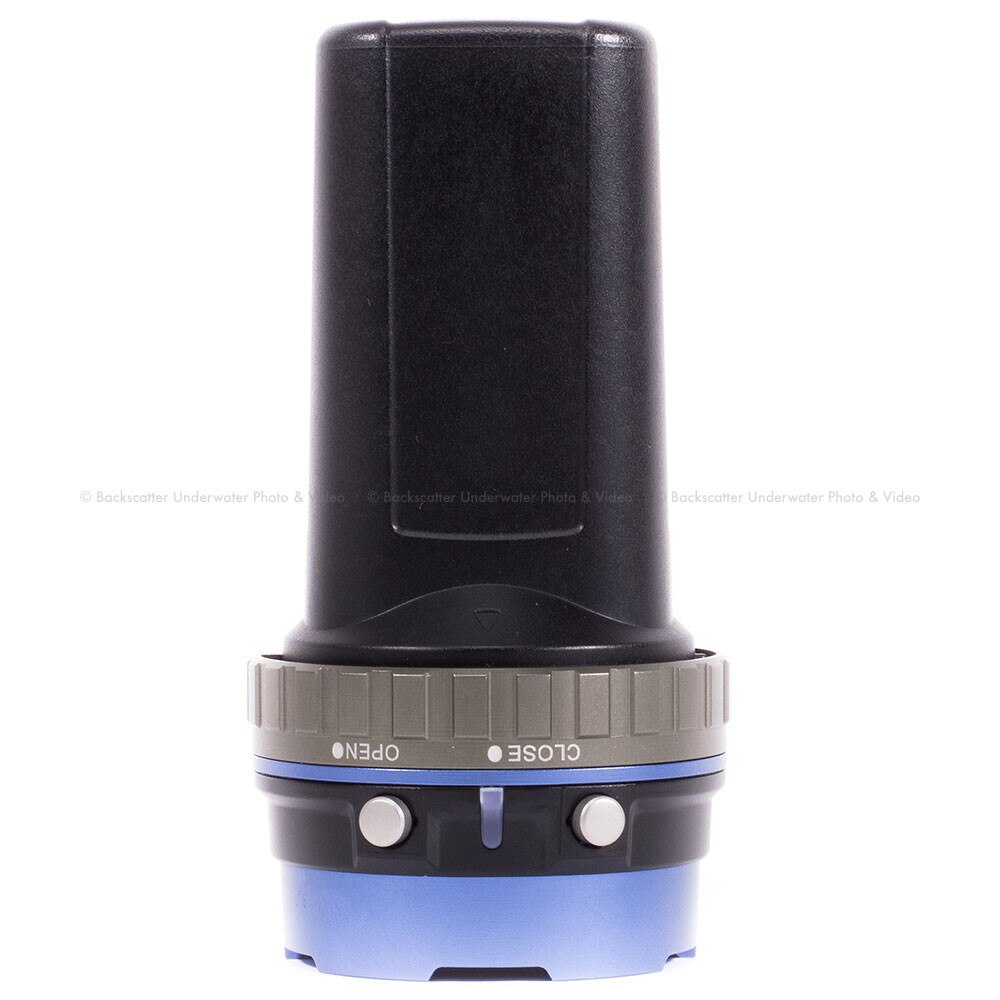

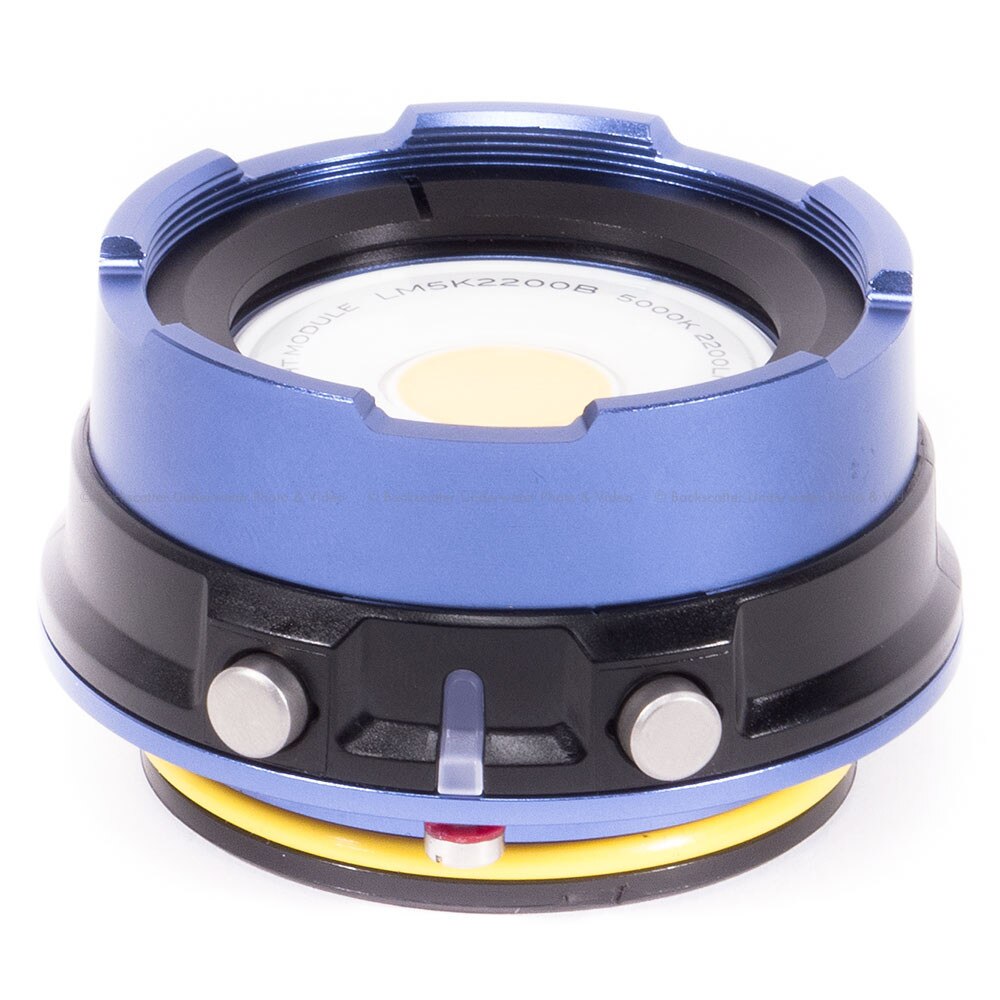

System01 consists of two modules the light source (Light Module) and the power supply (Battery Module). An original bayonet mechanism allows the two modules to be connected and disconnected with a simple operation. This design increases flexibility, allowing the system to easily adapt different usage requirements, such as preparation of multiple spare batteries.



Complete waterproofing eliminates worries about water leakage

Both modules are completely waterproof, ensuring that water cannot penetrate and cause damage. Each module is provided with an IPX6(*4) equivalent waterproofing mechanism that can stand up to a water depth of up to 100 meters during lighting (i.e. when the modules are connected).



Simple operation, perfect safety mechanisms

Just two pushbuttons are all that's needed to control the switch ON/OFF, 4-step brightness control (500 lm/900 lm/1300 lm/1800 lm) and non-step brightness control (300lm to 2200 lm). Remaining battery power is indicated with an LED indicator. Safety mechanisms include a temperature sensor, overcharge, over-discharge, over-current and short-circuit protection circuitry, as well as an over-pressure valve.



Product Specifications

Light sourceLED
Irradiation angle100_ (60_ when a condensing lens is used)
Color temperatureApprox. 5,000K
Color rendering indexRa80
Total flux_ LED: 2400 lm

_ Product output: Max. 1800 lm with 4-step brightness control.

_ Max. 2200 lm with non-step brightness control.
Operating environmentUnderwater. If illuminated continuously over land, the product temperature increases so the safety circuitry dims or extinguishes the light.
Brightness control

4-step: 500 lm, 900 lm, 1300 lm, 1800lm

Non-step: 300lm to 2200 lm
LED indication

Remaining battery power: Blue Purple Yellow Red

Error: Red flashing
Continuous lighting period4-step brightness control: 500 lm/300 min., 900 lm/120 min., 1300 lm/80 min., 1800 lm/50 min.
Charge methodAC adapter + Dedicated plug

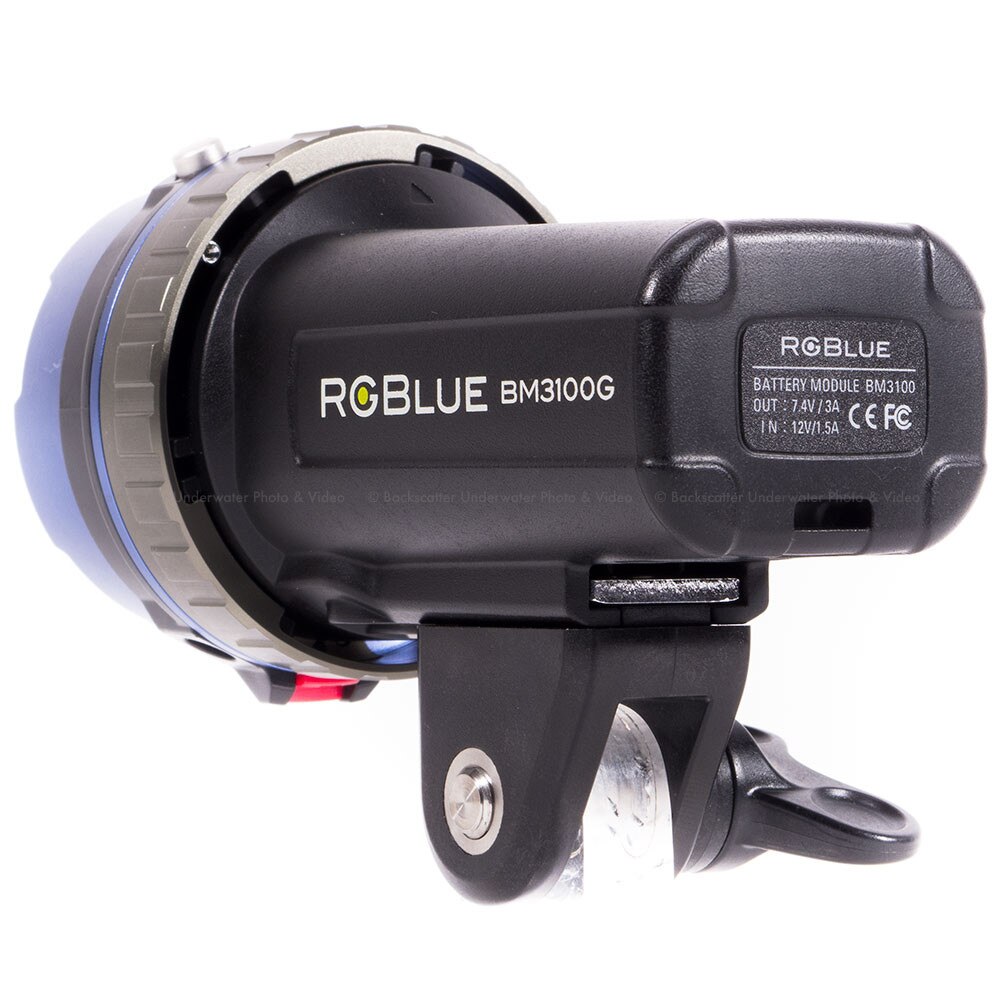

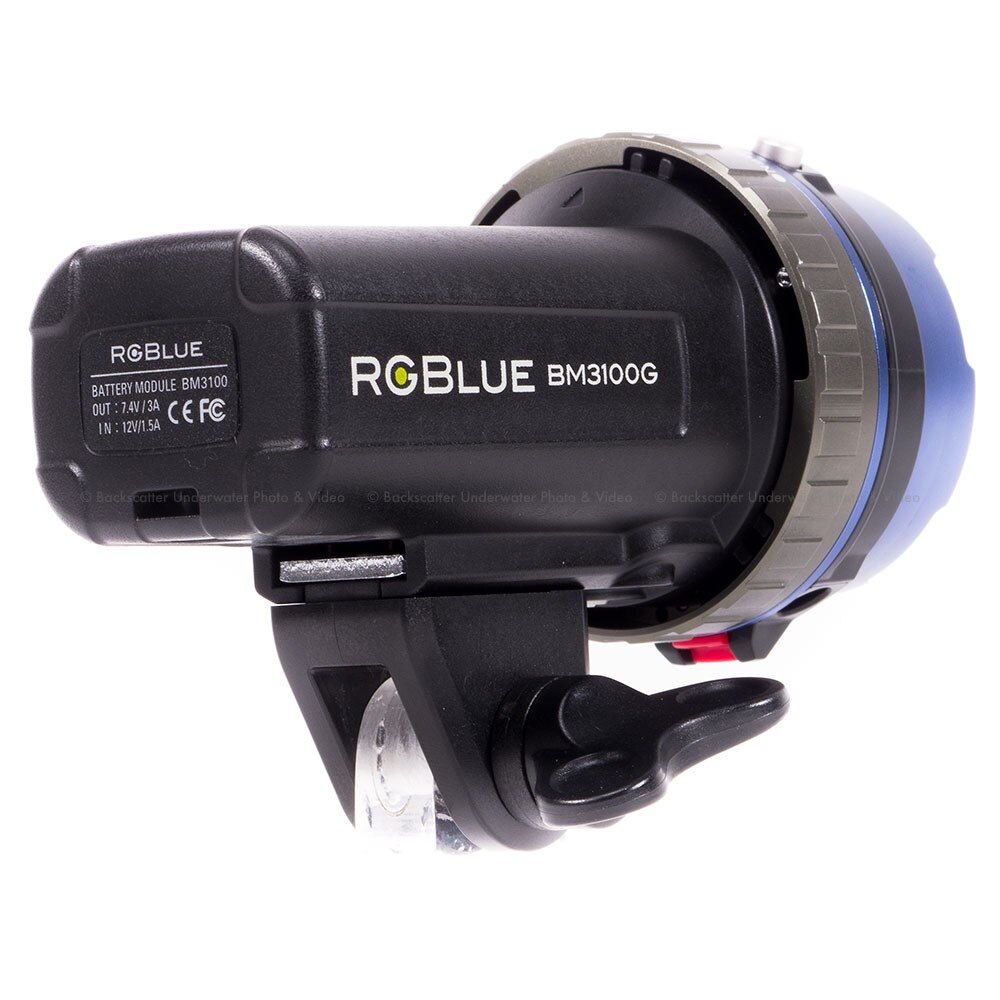

Power supplyRechargeable lithium ion battery, 3100 mAh/7.4 V(23Wh)
Recharging countApprox. 500 times
Withstanding water depth100 meters, IPX8 (JIS protection class 8)
DimensionsMax. dia. 64.2 mm x 123.5 mm (excluding projections)
Weight420 g overland, 170 g underwater
Operating temperatures5_C to +45_C (23_F to 113_F)
Storage temperatures5_C to +45_C (23_F to 113_F)
Storage humidity20% to 60%
Materials, treatmentCorrosion-resistant aluminum alloy/hard anodized aluminum, PC, optical glass/chemically-strengthened glass.
IR receiver

Brightness control from remote control

When the optional remote control unit is used
Safety standardsCE, FCC, PSE
Light ring thread diameterM49, JIS standard compliant
Bottom plate/headTripod screw compatible, JIS standard compliant




Accessories

AC Adapter & Recharge Plug Set

For use in recharging the Battery Module. Three plugs including A-/C-/BF-type designs with 100 to 240 V compatibility are provided.

And dedicated plug used between Battery Module & AC Adapter.

Condensing Lens

Attaches to the front end of the Light Module. It irradiates the target more brightly by narrowing the emission angle to 60_ (from 100_ when it is not used).

YS Adapter set

Adapter for mounting the light source on an arm. Can be attached to the accessory mounting plate.* With an Allen wrench

Red Filter

Rotary Shoe Adapter
